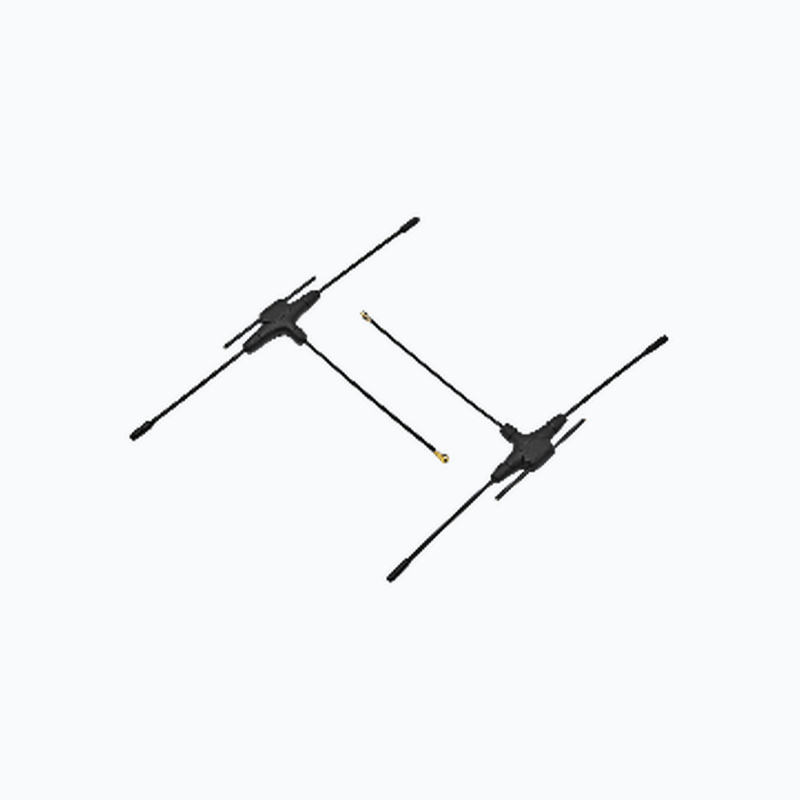

YC-A-COM-0024 | 915 MHz / 2.4 GHz Dual-Band T-Shaped Antenna
Price on request
Request a quoteCommunication Antennas
A dual-band T-shaped communication antenna covering 898–930 MHz and 2400–2500 MHz, with a nominal gain of 2.5 dBi in each band. Designed for equipment integration requiring both frequency bands.
Key Specifications
| Frequency ranges | 898–930 MHz; 2400–2500 MHz |
|---|---|
| Nominal gain | 2.5 dBi / 2.5 dBi |
| Polarization | Horizontal |
| Input impedance | 50 Ω |
| VSWR | ≤ 2.0 (at 915 MHz / 2450 MHz) |
| Maximum input power | 50 W |
| Connector options | IPEX-1 / IPEX-4, subject to configuration |

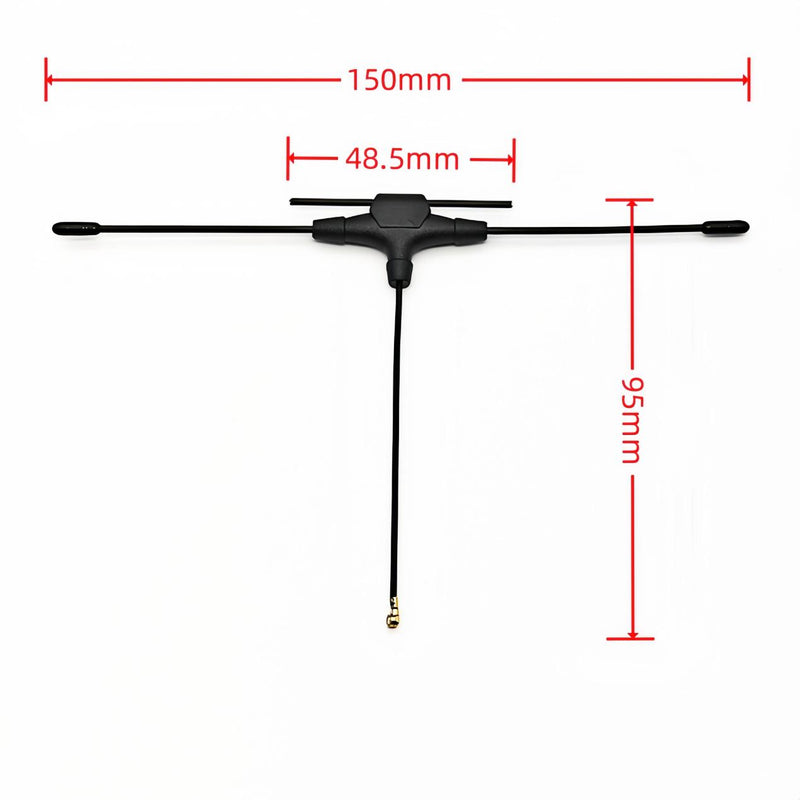

| Dimensions | 150 mm wide × 95 mm high |
| Housing materials | ABS / PVC |
| Color | Black |
| Operating temperature | −40 to +60 °C |
Configuration & Delivery
Share the available installation space, preferred connector and cable requirements when requesting a quote. Standard MOQ is 1 unit; typical sample lead time is 2 weeks and bulk lead time is 4 weeks. Final configuration and delivery are confirmed in the quotation.
