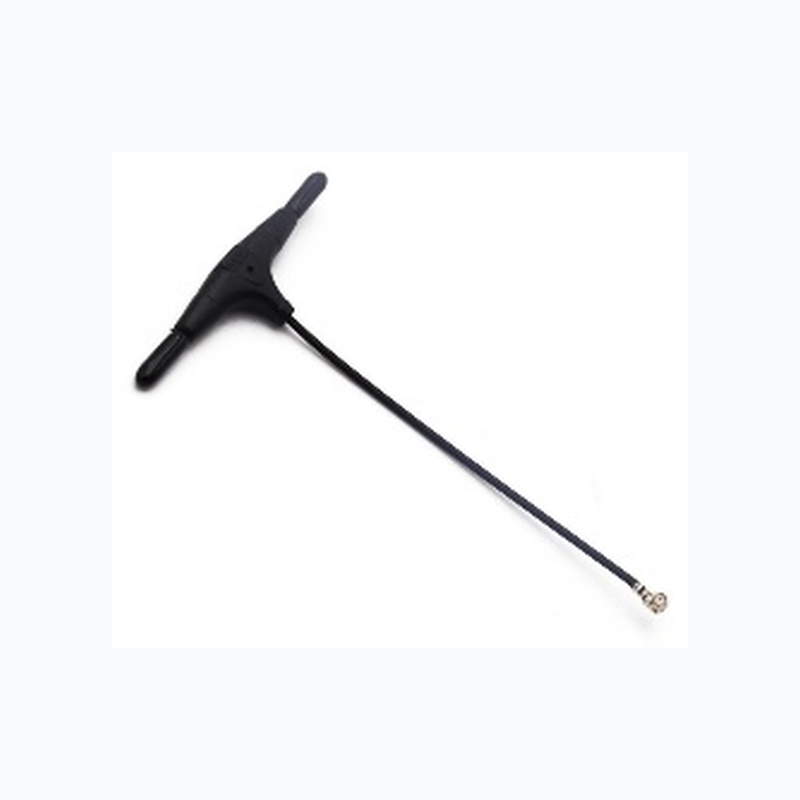

YC-A-COM-0022 | 2.4 GHz T-Shaped Communication Antenna
Price on request
Request a quoteCommunication antenna
This external T-shaped antenna operates at 2400–2500 MHz with a stated gain of 2.5 dBi for 2.4 GHz device integration. IPEX-1 and IPEX-4 connector options are available.
Key specifications
| Frequency range | 2400–2500 MHz |
|---|---|
| Stated gain | 2.5 dBi |
| Polarization | Horizontal |
| Input impedance | 50 Ω |
| Maximum input power | 50 W |
| Connector options | IPEX-1 / IPEX-4 |
| Dimensions | 50 mm wide × 130 mm high |
| Construction | ABS / PVC |
| Color | Black |
| Operating temperature | −40 to +60 °C |
Configuration and delivery
Please specify the connector type, required cable length, and available mounting space when requesting a quotation. Typical MOQ is 1 unit, sample lead time is 2 weeks, and bulk lead time is 4 weeks; final configuration and timing are subject to quotation.
