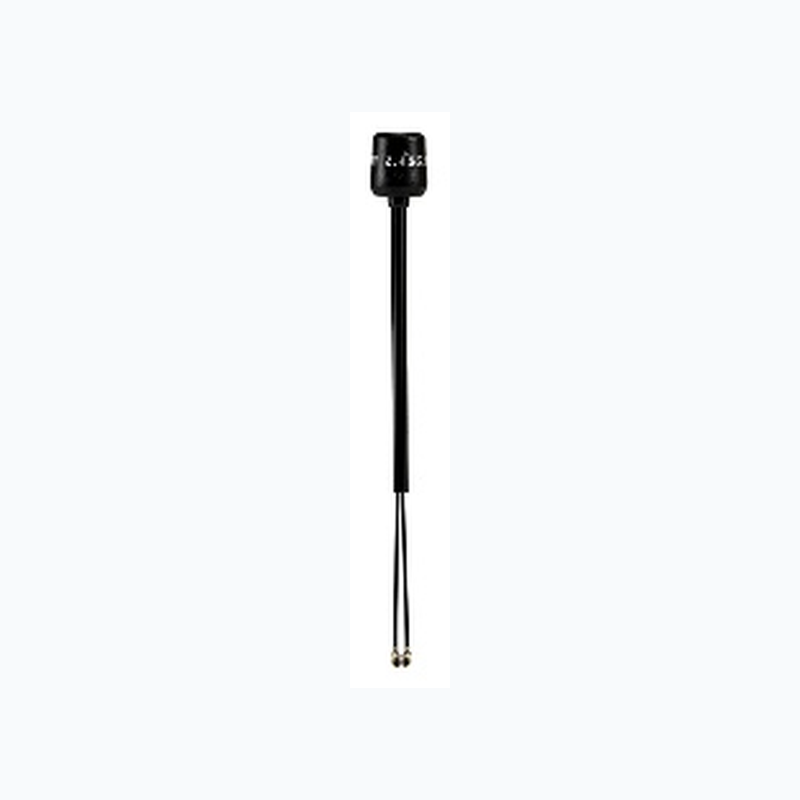

YC-A-COM-0012 | 2.4/5.8 GHz Dual-Band Communication Antenna
Price on request
Request a quote2.4/5.8 GHz dual-band antenna for communication equipment, covering 2400–2483 MHz and 5500–6000 MHz with multiple RF connector options.
Technical specifications
| Frequency range | 2400–2483 MHz; 5500–6000 MHz |
|---|---|
| Gain | 2.5 dBi |
| Impedance | 50 Ω |
| VSWR at 2400/5800 MHz | ≤1.5 |
| Max. input power | 50 W |
| Connector options | RP-SMA, SMA, U.FL, MMCX, MMCX-L |
| Dimensions | Approx. 13 × 150 mm |
| Weight | Approx. 7.6 g |
| Radome | ABS; black or white |
| Operating temperature | −40 to +60 °C |
Configuration notes
Connector and cable length can be selected for the target installation. Please specify the required configuration in your inquiry.
Ordering and delivery
- Standard MOQ: 1 unit
- Typical sample lead time: 2 weeks
- Typical volume-production lead time: 4 weeks
Final configuration and schedule are confirmed in the quotation.
