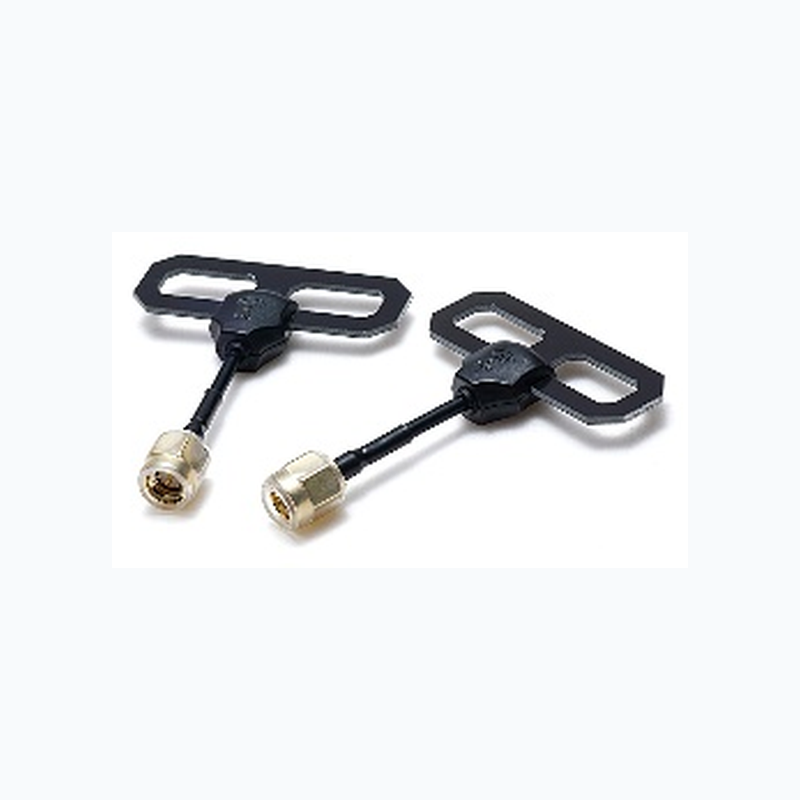

YC-A-COM-0016 | 2.4 GHz Loop Communication Antenna
Price on request
Request a quoteA loop communication antenna covering 2400–2500 MHz, with 4.2 dBi gain, 50 Ω input impedance and an SMA connector. Cable length and color can be specified for equipment integration, sample evaluation and batch supply.
Technical specifications
| Catalog model | YC-A-COM-0016 |
|---|---|
| Frequency range | 2400–2500 MHz |
| Gain | 4.2 dBi |
| VSWR (at 2400 MHz) | ≤1.5 |
| Input impedance | 50 Ω |
| Maximum input power | 50 W |
| Operating temperature | −40 to +60 °C |
| Connector | SMA |
| Antenna dimensions (excluding cable) | 62 × 47 mm |
| Reference weight | 5.5 g |
| Material | PVC / ABS |
| Color options | Black, white |
Configuration notes
- Cable length is confirmed per order. The listed antenna dimensions exclude the cable.
- Gain and VSWR are stated under the catalog conditions; the installation environment may affect system performance.
Ordering and delivery
Standard MOQ is 1 unit. Typical sample lead time is 2 weeks and volume lead time is 4 weeks. Customized configuration, quantity and final delivery schedule are confirmed in the quotation.
