Browse RF components by device type: baluns, filters, couplers and more. Compare models by frequency range and key specifications. Share your target frequency, interface, power and quantity for selection support and quotation.
RF component selection table
| Device type | Web model | Frequency range | Key specification |
|---|

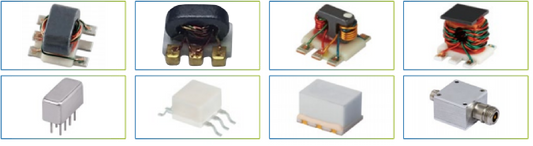

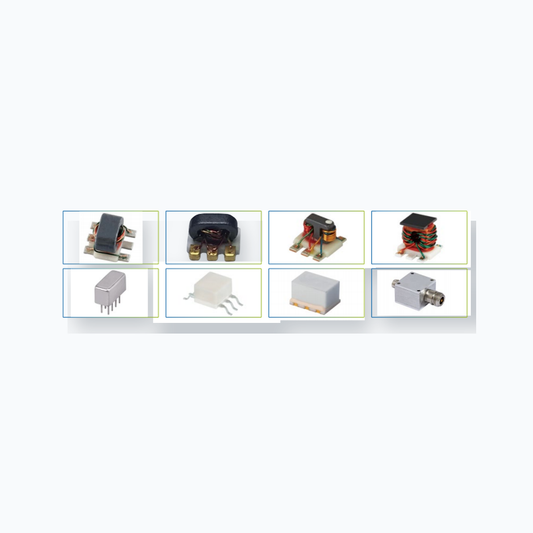

| Balun | YC-RF-BAL-0001 | 0.4–500 MHz | 1:1 ratio; 50 Ω; insertion loss ≤1.9 dB |
|---|
| Balun | YC-RF-BAL-0002 | 0.5–300 MHz | 1:4 ratio; 50 Ω; insertion loss ≤1.5 dB |
|---|
| Balun | YC-RF-BAL-0010 | 10–8000 MHz | 1:1 ratio; 50 Ω |
|---|
| Filter | YC-RF-FLT-0227 | Center 46.52 MHz | LC bandpass; center loss ≤2.5 dB |
|---|

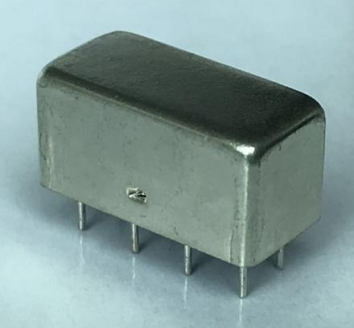

| Coupler | YC-RF-CPL-0001 | 0.3–250 MHz | Coupling 19.5 ± 0.5 dB; directivity ≥30 dB |
|---|
This is a selection summary. See each product page for full specifications and configuration options; final supply follows the confirmed requirements and quotation.
Read the RF component selection guide for balun, filter and coupler selection criteria, or send your requirements for selection support and a quote.
