YC-RF-BAL-0002 | 0.5–300 MHz Surface-Mount 1:4 RF Balun
Price on request
Request a quoteRF component · Balun
Surface-mount 1:4 RF balun for impedance transformation and differential signal conversion in communication RF paths. Frequency range: 0.5–300 MHz. Ceramic base.
Key specifications
| Frequency range | 0.5–300 MHz |
|---|---|
| Impedance ratio | 1:4 |
| Impedance | 50 Ω |
| Insertion loss | ≤ 1.5 dB |
| Power rating | 0.25 W |
| Current rating | 30 mA |
| Package | Surface mount, ceramic base |
| Operating temperature | −40 to 85 °C |
Selection and supply
Standard MOQ: 1 piece. Typical sample lead time: 2 weeks; volume lead time: 4 weeks. Send your target frequency, impedance ratio, quantity and mounting requirements to confirm the package drawing and quotation.

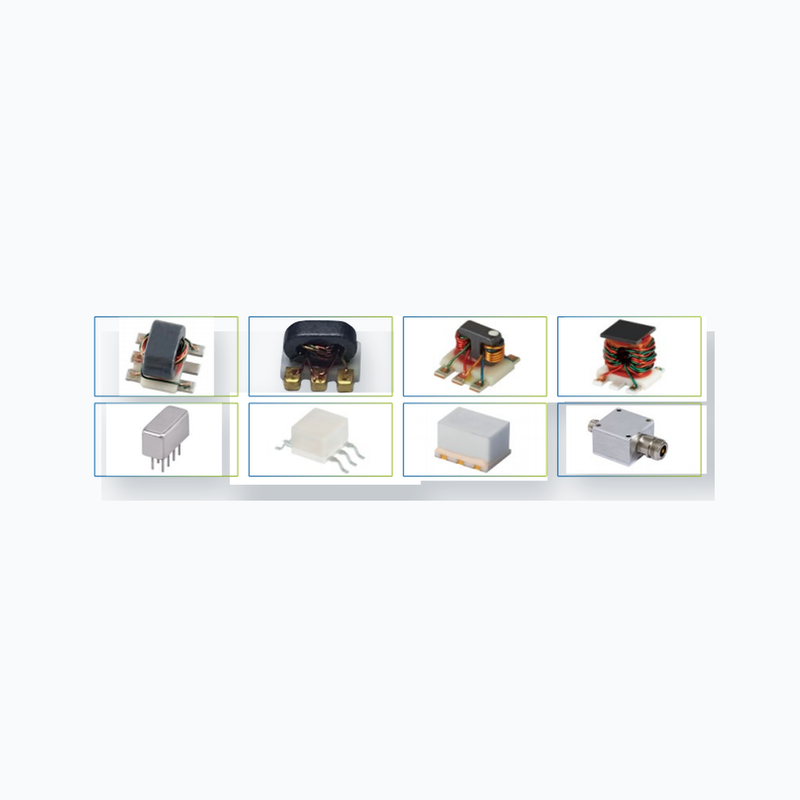

The image illustrates the balun series; the confirmed drawing defines this model’s package and pad dimensions.
