YC-TI-SG-0006 | Ceyear 1434-V Series Vector Signal Generator
Price on request
Request a quoteThe 1434-V series provides CW, analog, pulse and digital modulation signals for RF receiver and communications testing. The 1434AV and 1434BV have different frequency limits; the 6 GHz extension and 240 MHz modulation bandwidth depend on options.

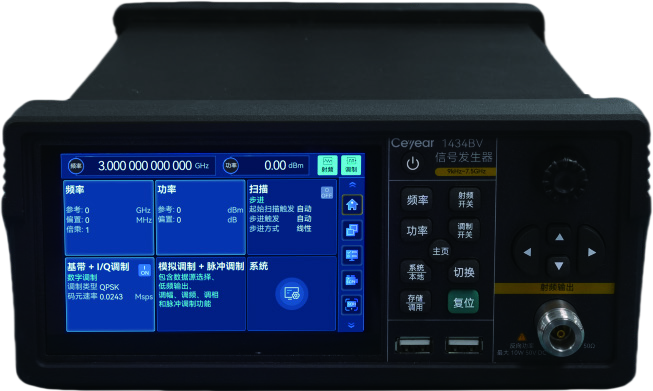

The image shows a 1434BV as a 1434-V series appearance reference. The delivered model and options are defined in the quotation.
Model and frequency configurations
| Manufacturer model / configuration | Frequency range | Maximum output power |
|---|---|---|
| 1434AV | 9 kHz–3 GHz | ≥+20 dBm (f>1 MHz) |
| 1434AV + 1434AV-H20-06 | 9 kHz–6 GHz | ≥+20 dBm (f>1 MHz) |
| 1434BV | 9 kHz–7.5 GHz | ≥+15 dBm (f>1 MHz) |
Technical specifications
| Frequency resolution | 0.001 Hz |
|---|---|
| Frequency switching time | <5 ms |
| Sweep modes | Step sweep, list sweep |
| Minimum output power | −90 dBm for 9 kHz≤f≤100 kHz; −120 dBm for f>100 kHz |
| Analog modulation | FM, PM, AM |
| Digital modulation formats | More than 30 standard digital modulation formats generated in real time |
| Pulse on/off ratio | >80 dB |
| Minimum pulse width | 20 ns (unlevelled) |
| RF output | N female, 50 Ω |
| Dimensions (W×H×D) | (213.0±1.2)×(88.1±0.8)×(300.0±1.2) mm |
| Weight | <6 kg, depending on model and options |
| Power supply | 100–120 V AC or 200–240 V AC, 50–60 Hz, auto-ranging |
| Power consumption | <100 W |
Modulation and options
- The standard 1434AV covers 9 kHz–3 GHz; option 1434AV-H20-06 extends it to 6 GHz. The 1434BV covers 9 kHz–7.5 GHz.
- Option 1434-H31-240 provides 240 MHz internal modulation bandwidth for the 1434AV/BV. It is not assumed to be included in every configuration.
- 5G NR EVM is <1.0% with Test Model 3.1a, 100 MHz, 256QAM, 30 kHz SCS, 3.5 GHz carrier and 0 dBm output.
- Available options include the 1434-H04 low-noise option and 1434-H98 English front-panel and interface kit. Included items are defined in the quotation.
Quotation and delivery
Specify 1434AV or 1434BV, maximum frequency, modulation bandwidth, interface language, accessories and quantity. Configuration, scope of supply and delivery schedule are confirmed in the quotation.
