YC-TI-SG-0004 | 1435-V Series Vector Signal Generator
Price on request
Request a quoteThe 1435-V series supports general-purpose digital modulation and arbitrary waveform playback for communications component, receiver and laboratory testing. Shanghai Yanchuan helps select frequency, baseband and modulation options, accessories and supply configurations.
Model selection
| Manufacturer model / configuration | Maximum output frequency | Configuration |
|---|---|---|
| 1435A-V | 3 GHz | Standard frequency configuration |
| 1435B-V | 6 GHz | Standard frequency configuration |
| 1435B-V + H20 | 7.5 GHz | Frequency-extension option |
| 1435C-V | 13 GHz | Standard frequency configuration |
| 1435G-V | 45 GHz | Standard frequency configuration |
Key specifications
| Frequency resolution | 0.001 Hz |
|---|---|
| Frequency switching time | <1 ms (measured) |
| Sweep modes | Step sweep and list sweep |
| Output impedance | 50 Ω |
| Digital modulation formats | PSK, QAM, FSK, ASK, MSK and others; subject to baseband configuration and software functions |
| Arbitrary waveform file formats | Mat-File 5, ASCII, Binary, cap and csv; optional arbitrary-waveform playback function |
| Analog modulation (option) | AM, FM and ΦM |
| Pulse modulation (option) | On/off ratio >80 dB; narrow-pulse option minimum width 20 ns (unlevelled) |
| Power supply | 100–120 VAC or 200–240 VAC, 50–60 Hz (automatic selection) |
| Power consumption | <300 W |
Configuration and supply

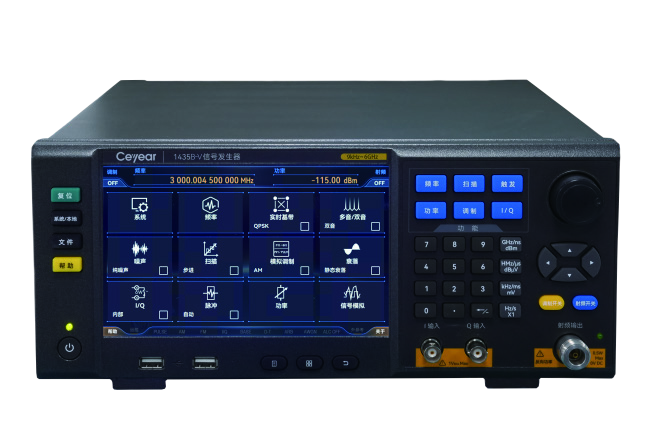

Output power, phase noise, modulation bandwidth and baseband memory depend on the model and options. Send your frequency range, modulation format, bandwidth, output power and quantity for option selection, lead time and a quotation. The product image shows the 1435B-V configuration from the manufacturer’s manual.
