YC-TI-SG-0003 | 1435 Series Signal Generator
Price on request
Request a quoteThe 1435 series offers multiple RF and microwave frequency configurations for component testing, receiver testing and laboratory signal generation. Shanghai Yanchuan provides model selection, accessory support and quotations.
Model selection
| Manufacturer model | Frequency range | RF output connector |
|---|---|---|
| 1435A | 9 kHz–3 GHz | N (female) |
| 1435B | 9 kHz–6 GHz | N (female) |
| 1435D | 9 kHz–20 GHz | 3.5 mm (male) |
| 1435F | 9 kHz–40 GHz | 2.4 mm (male) |
| 1435K | 100 kHz–53 GHz | 1.85 mm (male) |
| 1435L | 100 kHz–67 GHz | 1.85 mm (male) |
Key specifications
| Frequency resolution | 0.001 Hz |
|---|---|
| Frequency switching time | <1 ms (measured) |
| Sweep modes | Step sweep and list sweep |
| Output impedance | 50 Ω |
| Analog modulation (option) | AM, FM and ΦM |
| Pulse modulation (option) | On/off ratio >80 dB; narrow-pulse option minimum width 20 ns (unlevelled) |
| Power supply | 100–120 VAC or 200–240 VAC, 50–60 Hz (automatic selection) |
| Power consumption | <300 W |
Configuration and supply

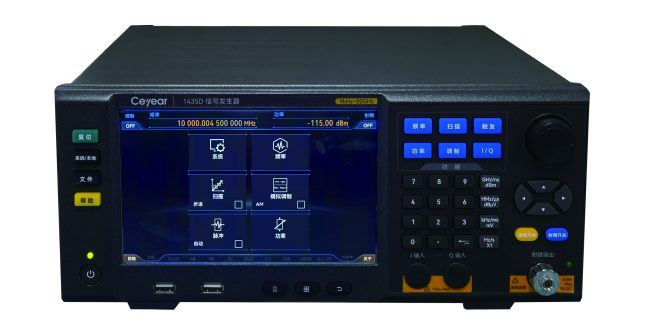

Output power, phase noise, modulation functions and accessories depend on the model and options. Send your frequency range, output power, modulation requirements and quantity for configuration support, lead time and a quotation. The product image shows the 1435D configuration from the manufacturer’s manual.
