YC-TI-SG-0002 | 1466-V Series Vector Signal Generator
Price on request
Request a quoteSignal Generators
The 1466-V series provides continuous-wave and vector-modulated signals for microwave, millimeter-wave and wireless communication testing. Select from eight models; the upper frequency limit depends on the model.
Model selection
| Manufacturer model | Output frequency range |
|---|---|
| 1466C-V | 6 kHz–13 GHz |
| 1466D-V | 6 kHz–20 GHz |
| 1466E-V | 6 kHz–33 GHz |
| 1466G-V | 6 kHz–45 GHz |
| 1466H-V | 6 kHz–53 GHz |
| 1466L-V | 6 kHz–67 GHz |
| 1466N-V | 6 kHz–90 GHz |
| 1466P-V | 6 kHz–110 GHz |
Core specifications
| Frequency resolution | 0.001 Hz |
|---|---|
| Frequency switching time | <15 ms |
| RF output impedance | 50 Ω (nominal) |
| Internal modulation bandwidth | 200 MHz standard; 500 MHz, 1 GHz or 2 GHz options, subject to configuration |
| External modulation bandwidth | 2 GHz standard; up to 5 GHz with external wideband baseband input and suitable options |
| Display | 11.6-inch touchscreen |
| Typical MOQ | 1 unit |

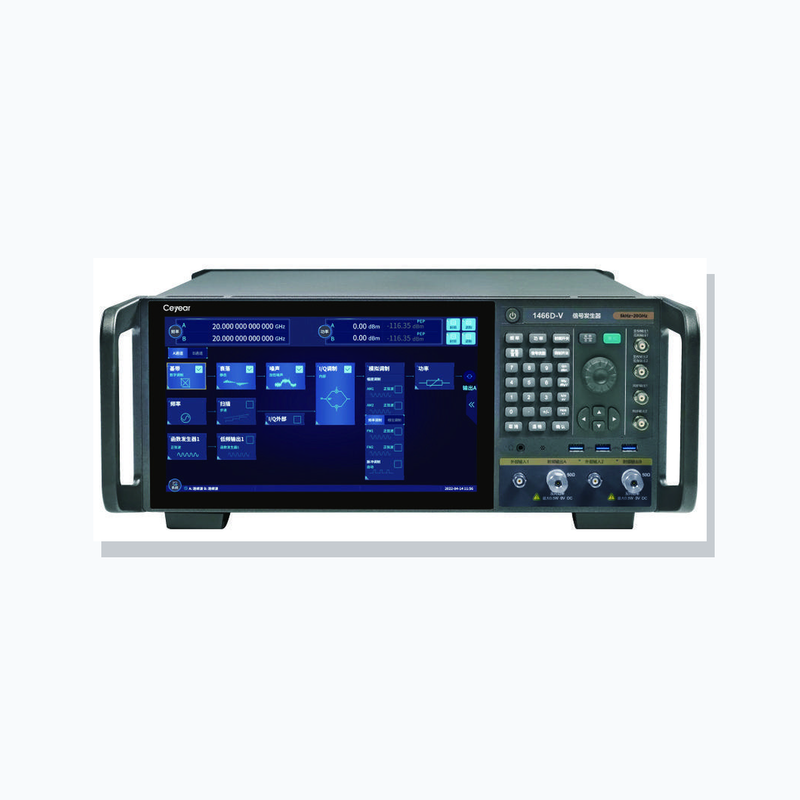

The image shows a 1466D-V configuration. Modulation bandwidth, output power, accessories and lead time depend on the chosen model and options. Send us your target frequency range and test requirements for a formal quotation.
