YC-RF-FLT-0192 | 700–4000 MHz LC Highpass Filter
Price on request
Request a quoteProduct overview
Surface-mount LC highpass filter with a 700–4000 MHz passband, ≤1.0 dB insertion loss, ≤1.5 input/output VSWR and 0.5 W power handling. For frequency selection and low-frequency signal rejection in RF paths.
Key specifications
| Filter type | LC highpass |
|---|---|
| Passband | 700–4000 MHz |
| Insertion loss | ≤1.0 dB |
| Out-of-band rejection | ≥25 dB @ DC–395 MHz |
| Input/output VSWR | ≤1.5 |
| Power handling | 0.5 W |
| Mounting | Surface mount (SMT) |
| Dimensions | 6.35 × 6.35 × 2.54 mm |
| Operating temperature | −40 to +85 °C |
| Storage temperature | −55 to +105 °C |
Application notes
Specify the operating band, bandwidth, rejection frequencies and input power when requesting a quotation. Ensure good grounding during installation and testing, solder according to the model drawing and do not exceed rated power. Refer to the model drawing for dimension orientation and mounting details.

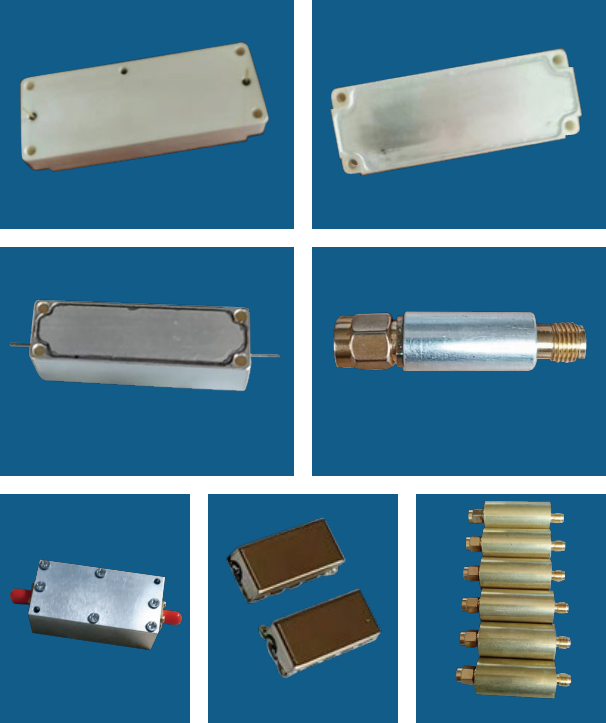

The image is a LC-filter-series reference photo, not the specific appearance of this model. Terminal layout and dimensions are defined by the model drawing.
Ordering and customization
Standard MOQ is 1 unit. Typical sample and volume lead times are 2 and 4 weeks, subject to technical review and final quotation.
