YC-RF-FLT-0113 | 164–174 MHz LC Bandpass Filter
Price on request
Request a quoteProduct overview
LC Bandpass Filter with a passband of 164–174 MHz, ≤3.5 dB insertion loss and ≤1.6 VSWR. Power handling: 0.5 W. Surface-mount package for frequency selection and out-of-band rejection in RF paths.
Key specifications
| Filter type | LC Bandpass Filter |
|---|---|
| Passband | 164–174 MHz |
| Insertion loss | ≤3.5 dB |
| Out-of-band rejection | ≥40 dB @ DC–122 MHz; ≥20 dB @ 205–240 MHz; ≥40 dB @ 240–2500 MHz |
| VSWR | ≤1.6 |
| Power handling | 0.5 W |
| Mounting | Surface mount (SMT) |
| Dimensions | 11.18 × 18.80 × 6.86 mm |
| Operating temperature | −40 to +85 °C |
| Storage temperature | −55 to +105 °C |
Application notes
Specify the passband, rejection frequencies, input power and connector requirements when requesting a quotation. Follow the model drawing for grounding, mounting, connector orientation and dimension order.

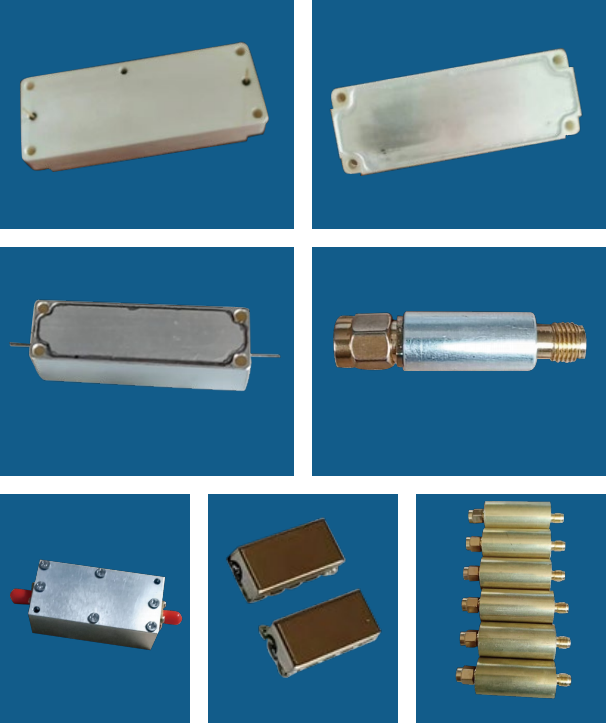

The image is an LC-filter-series reference photo, not the specific appearance of this model. Refer to the model drawing for construction, connectors and dimensions.
