YC-RF-FLT-0028 | DC–2850 MHz LTCC Lowpass Filter
Price on request
Request a quoteProduct overview
LTCC Lowpass Filter with a passband of DC–2850 MHz and a 3 dB cutoff frequency of 3090 MHz, in the 2012 package series. For frequency selection and high-frequency rejection in RF paths.
Key specifications
| Filter type | LTCC Lowpass Filter |
|---|---|
| Passband | DC–2850 MHz |
| 3 dB cutoff frequency | 3090 MHz |
| Package series | 2012 size series |
Application notes
Specify the operating band, insertion loss, stopband rejection, input power and mounting requirements. 2012 and 3216 identify package series; exact dimensions, land pattern and pin assignment are defined by the model drawing. Request the drawing to confirm RF-path compatibility.

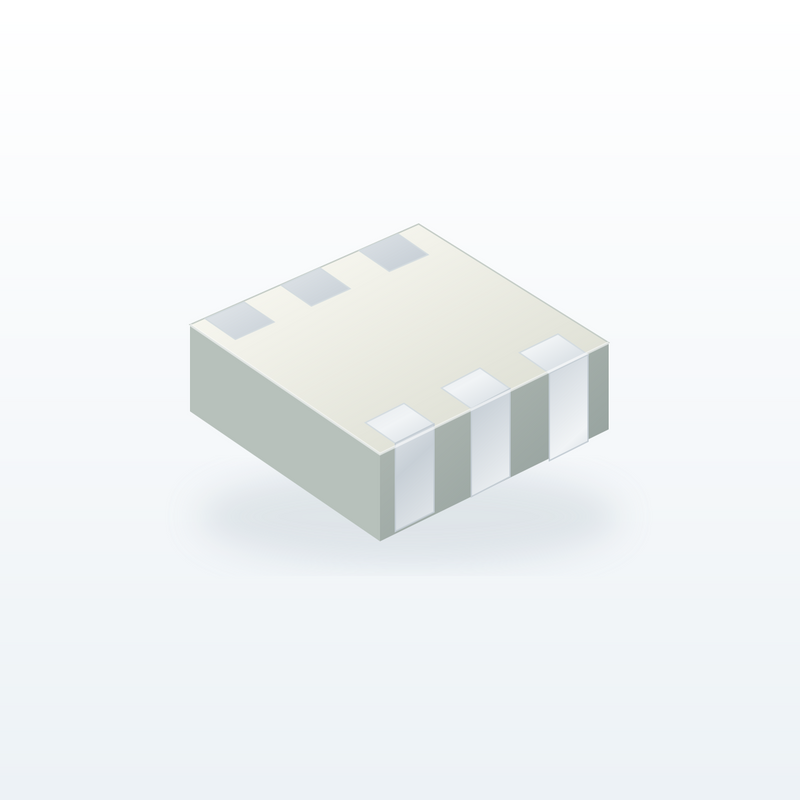

Generic SMD package illustration, not a photograph or package drawing of this model. Dimensions, land pattern and pin assignment are defined by the model drawing.
Ordering and customization
Standard MOQ is 1 unit. Typical sample and volume lead times are 2 and 4 weeks, subject to technical review and final quotation.
