YC-RF-CPL-0023 | 20–1000 MHz SMT Directional RF Coupler
Price on request
Request a quoteProduct overview
SMT Directional RF Coupler covering 20–1000 MHz, with 20.4 dB coupling, for signal sampling and monitoring in RF links. Select according to the operating band, coupling and power requirements.
Key specifications
| Frequency range | 20–1000 MHz |
|---|---|
| Coupling | 20.4 dB |
| Insertion loss | 0.7 dB |
| Directivity | 21 dB |
| VSWR | ≤1.2 |
| Maximum power | 1 W |
| Package | Surface mount |
Application notes
Select according to the operating band, mainline power, coupling, directivity and matching requirements. Request the dimensions, pinout and application drawings for this model before finalizing the design. Follow the port connections and termination requirements in those drawings.

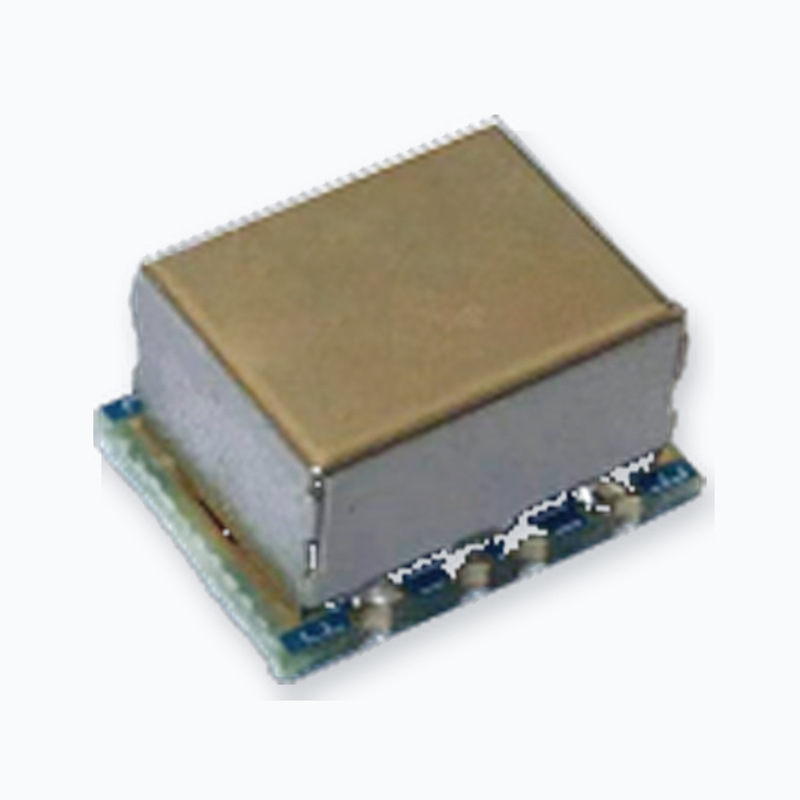

The image is a coupler-series reference photo, not the specific appearance of this model. Refer to this model's package drawing.
Ordering and customization
Standard MOQ is 1 unit. Typical sample and volume lead times are 2 and 4 weeks, subject to technical review and final quotation.
