YC-RF-BAL-0053 | 0.05–250 MHz 1:3 RF Balun
Price on request
Request a quoteProduct overview
An RF balun with a frequency range of 0.05–250 MHz, an impedance ratio of 1:3 and an impedance of 50 Ω. For balanced-to-unbalanced RF interface selection.
Key specifications
| Frequency range | 0.05–250 MHz |
|---|---|
| Impedance ratio | 1:3 |
| Impedance | 50 Ω |
Application notes
Select the device according to the frequency range and impedance-matching requirements. Request the package, pinout and application drawings for this model before finalizing the design.

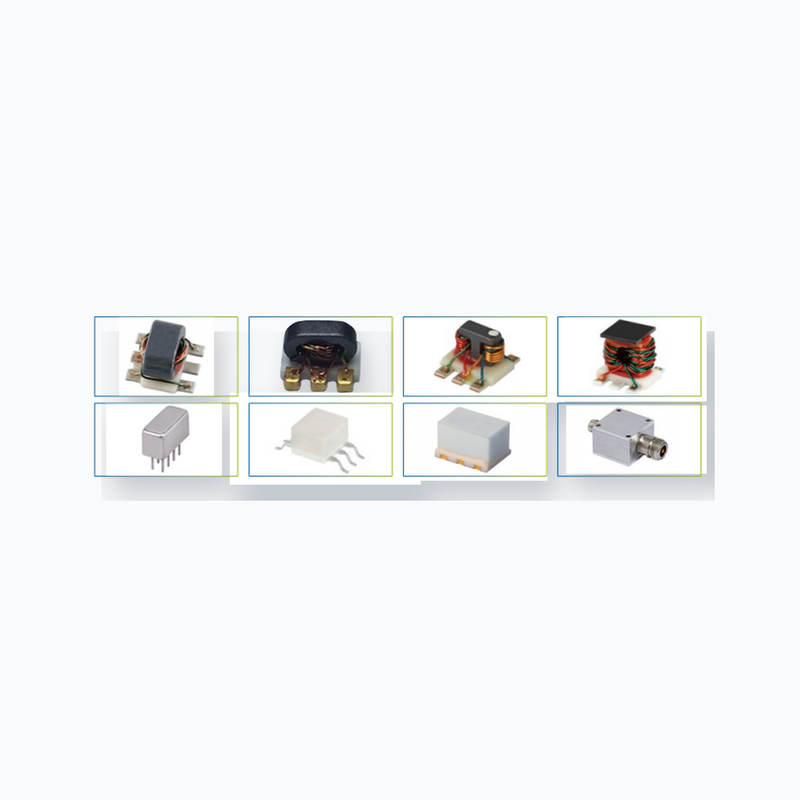

The image shows balun-series structures for reference. Refer to the drawing for this model's package.
Ordering and customization
Standard MOQ is 1 unit. Typical sample and volume lead times are 2 and 4 weeks, subject to technical review and final quotation.
