YC-RF-BAL-0013 | 2–500 MHz Surface-Mount 1:8 RF Balun
Price on request
Request a quoteProduct overview
A surface-mount RF balun with a ceramic base, operating from 2 to 500 MHz with a 1:8 impedance ratio. For balanced-to-unbalanced interfaces in communication RF circuits.
Key specifications
| Frequency range | 2–500 MHz |
|---|---|
| Impedance ratio | 1:8 |
| Insertion loss | ≤3 dB (2–50 MHz); ≤2 dB (50–400 MHz); ≤1 dB (10–100 MHz) |
| Power handling | 0.25 W |
| Current handling | 30 mA |
| Impedance | 50 Ω |
| Operating temperature | −40 to +85 °C |
| Storage temperature | −55 to +100 °C |
| Base material | Ceramic |
| Package | Surface mount |
Application notes
Select the device according to the frequency range and impedance-matching requirements. Request the package, pinout and application drawings for this model before finalizing the design.

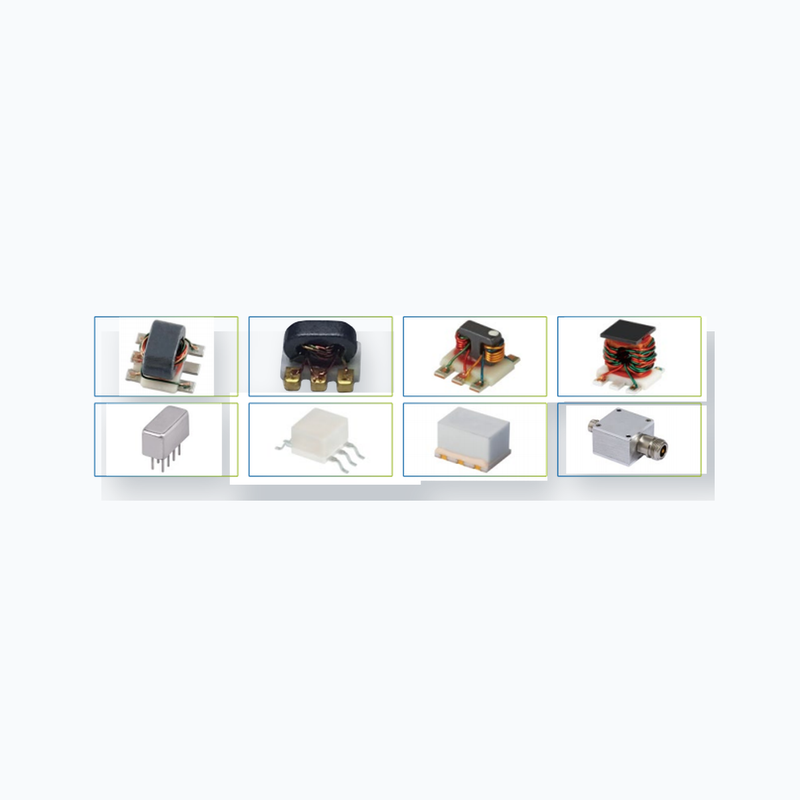

The image shows balun-series structures for reference. Refer to the drawing for this model's package.
Ordering and customization
Standard MOQ is 1 unit. Typical sample and volume lead times are 2 and 4 weeks, subject to technical review and final quotation.
