YC-RF-BAL-0003 | 0.08–200 MHz Surface-Mount 1:2 RF Balun
Price on request
Request a quoteProduct overview
A surface-mount RF balun for differential signal conversion in communication RF circuits. It operates from 0.08 to 200 MHz with a 1:2 impedance ratio and insertion loss of up to 1.2 dB.
Key specifications
| Frequency range | 0.08–200 MHz |
|---|---|
| Impedance ratio | 1:2 |
| Insertion loss | ≤ 1.2 dB |
| Power handling | 0.25 W |
| Current handling | 30 mA |
| Impedance | 50 Ω |
| Operating temperature | −20 to +85 °C |
| Storage temperature | −55 to +100 °C |
| Package | Surface mount |
Application notes
Ensure reliable grounding and solder joints. Operate within the specified power, current and temperature limits. Request the complete dimensional and pinout drawing before finalizing the design.

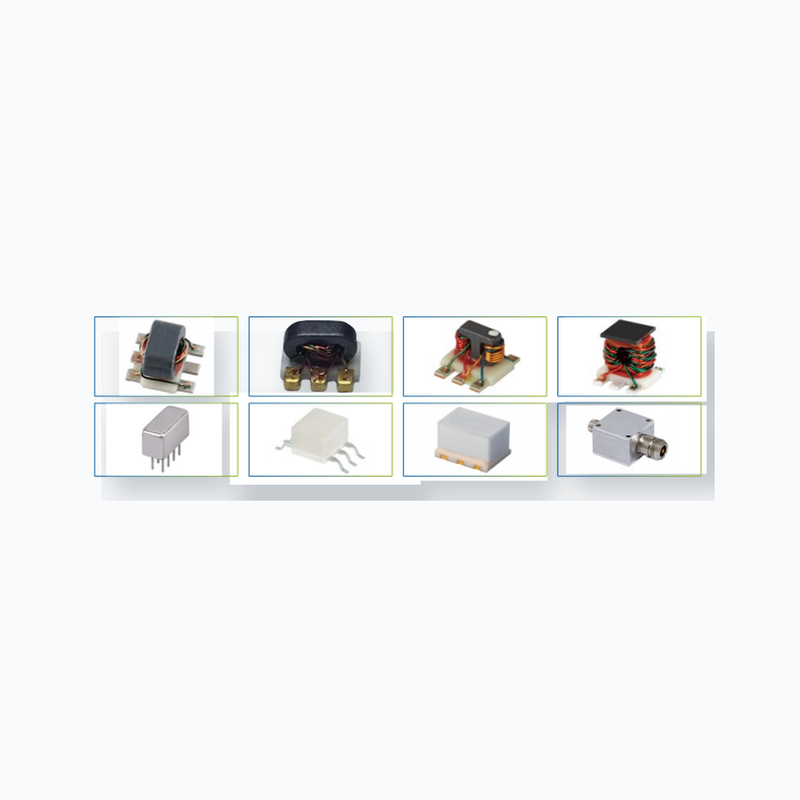

The image shows balun-series structures for reference. Refer to the drawing for this model's package.
Ordering and customization
Standard MOQ is 1 unit. Typical sample and volume lead times are 2 and 4 weeks, subject to technical review and final quotation.
