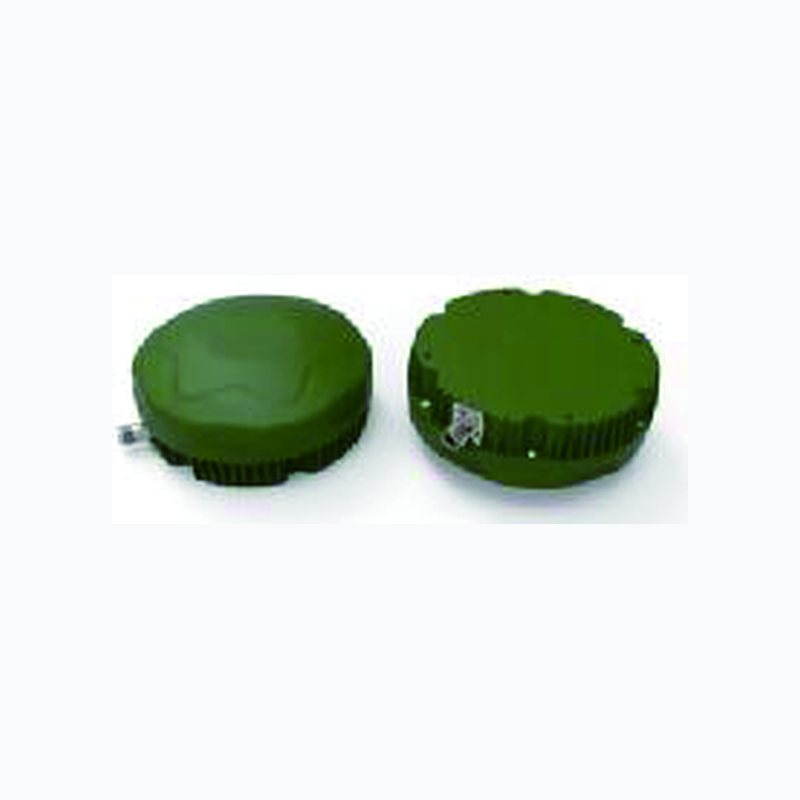

YC-A-GN-0006 | Multi-Band Vehicle and Vessel GNSS Active Antenna
Price on request
Request a quoteGNSS Navigation Antenna
Multi-band active antenna for vehicle and vessel installations, integrating navigation reception and RF front-end functions. These specifications describe the Φ130 × 55 mm configuration.
Key specifications
| Supported bands | BeiDou B1A/B1C, B2a/B2b and B3; S and L bands |
|---|---|
| LNA gain | 40 ± 2 dB (adjustable) |
| Nominal power-amplifier rating | 10 W |
| Supply voltage | DC 20–32 V |
| Dimensions | Φ130 × 55 mm |
| Weight | ≤1200 g |
| RF connector | Waterproof TNC-KF |
Configuration and delivery
Provide mounting-platform details, target bands, power supply and connector requirements to confirm the configuration. Standard MOQ: 1 unit; typical sample lead time: 2 weeks; typical volume lead time: 4 weeks. Final terms are subject to quotation.
