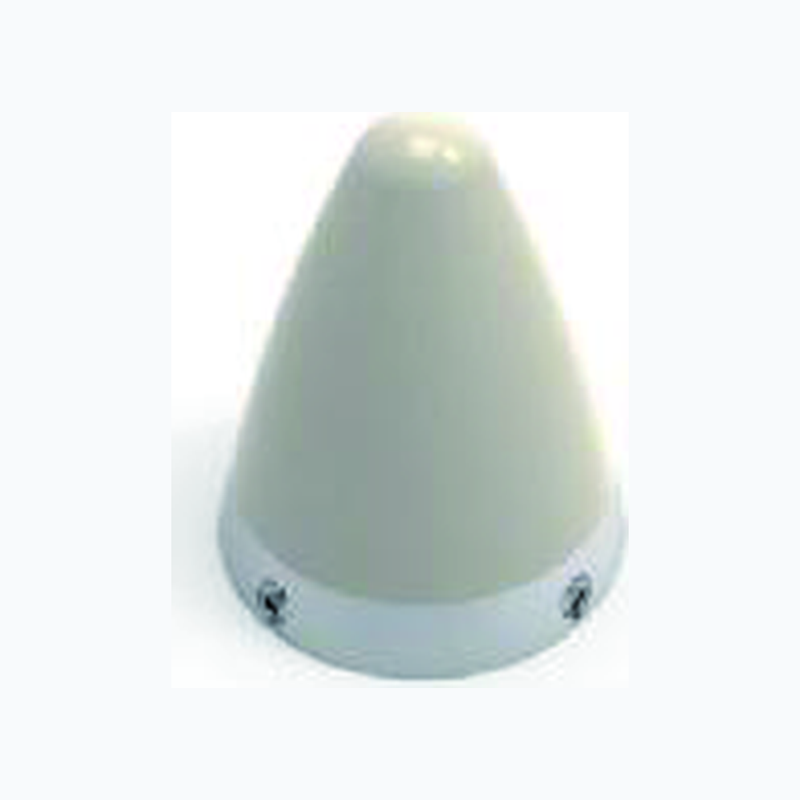

YC-A-GN-0005 | High-Shock Conical GNSS Antenna
Price on request
Request a quoteGNSS Navigation Antenna
Lightweight GNSS antenna for high-shock and high-dynamic positioning applications. These specifications describe the Φ59 × 96 mm conical configuration.
Key specifications
| Supported signals | GPS L1; BeiDou B1C/B1I |
|---|---|
| Peak gain | ≥2 dBi |
| LNA gain | 25 ± 1 dB |
| Noise figure | ≤0.8 dB |
| Operating current | ≤25 mA |
| Dimensions | Φ59 × 96 mm |
| Weight | ≤35 g |
| Shock resistance | 10,000 g |
| RF connector | I-PEX Gen 1 or Gen 3 |
Configuration and delivery
Provide installation space, connector and navigation-band requirements to confirm the configuration. Standard MOQ: 1 unit; typical sample lead time: 2 weeks; typical volume lead time: 4 weeks. Final terms are subject to quotation.
