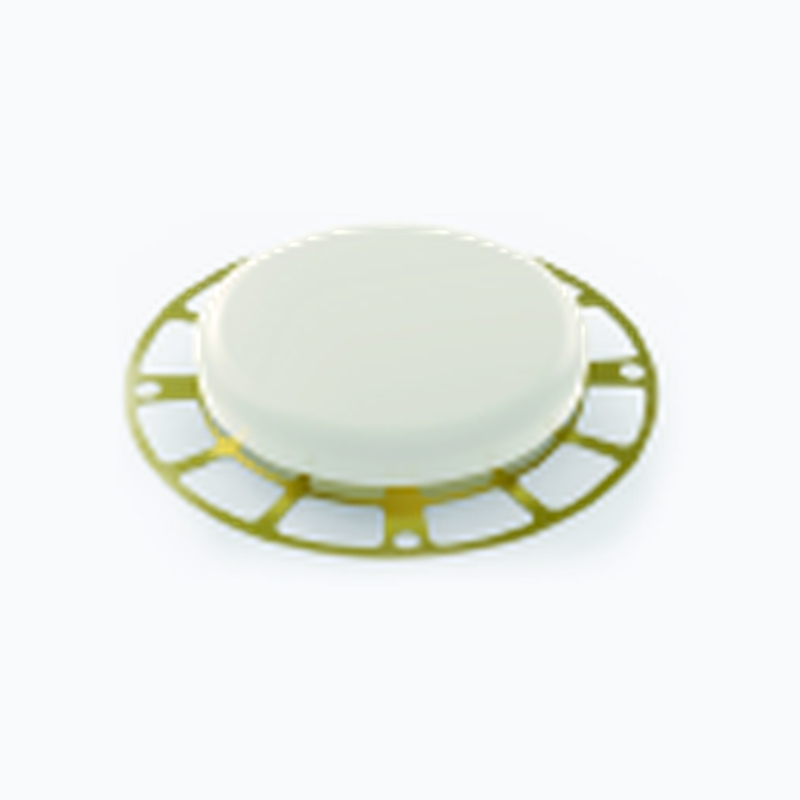

YC-A-GN-0004 | Low-Profile Multi-Constellation Airborne GNSS Antenna
Price on request
Request a quoteGNSS Navigation Antenna
Low-profile multi-constellation GNSS airborne antenna for positioning on UAVs and high-dynamic platforms. These specifications describe the Φ87 × 21.8 mm, SMA-K configuration.
Key specifications
| Supported signals | GPS L1/L2; GLONASS G1/G2/G3; BeiDou B1I/B1C/B2b/B3I; Galileo E1/E5b |
|---|---|
| Peak gain | 3.5 dBi |
| LNA gain | 38 ± 2 dB |
| Noise figure | ≤2.0 dB |
| Operating current | ≤50 mA |
| Dimensions | Φ87 × 21.8 mm |
| Weight | ≤100 g |
| RF connector | SMA-K |
Configuration and delivery
Provide platform dimensions, connector and navigation-band requirements to confirm the configuration. Standard MOQ: 1 unit; typical sample lead time: 2 weeks; typical volume lead time: 4 weeks. Final terms are subject to quotation.
Prepare your RFQ
Include the required navigation signals, platform and mounting space, connector and cable requirements, sample or batch quantity, delivery country and target schedule. We will use these requirements to assess the configuration and prepare a quotation.
