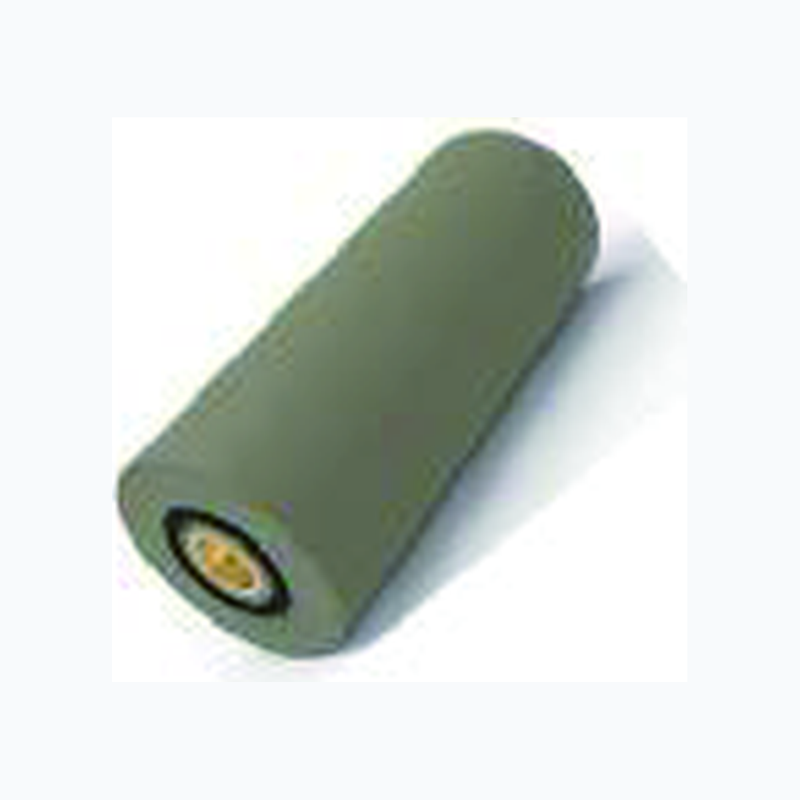

YC-A-GN-0003 | Compact BeiDou B1/B3 Helical Antenna
Price on request
Request a quoteGNSS Navigation Antenna
Compact BeiDou B1/B3 helical antenna for handheld terminals, unmanned systems and equipment with limited installation space.
Key specifications
| Supported signals | BeiDou B1/B3 |
|---|---|
| Peak gain | 2 dBi |
| LNA gain | 32 ± 2 dB |
| Phase-center deviation | ±3 mm |
| Dimensions | Φ23 × 56 mm |
| Weight | ≤20 g |
| RF connector | SMA-J |
Configuration and delivery
Provide installation space, connector and target signal requirements to confirm the configuration. Standard MOQ: 1 unit; typical sample lead time: 2 weeks; typical volume lead time: 4 weeks. Final terms are subject to quotation.
