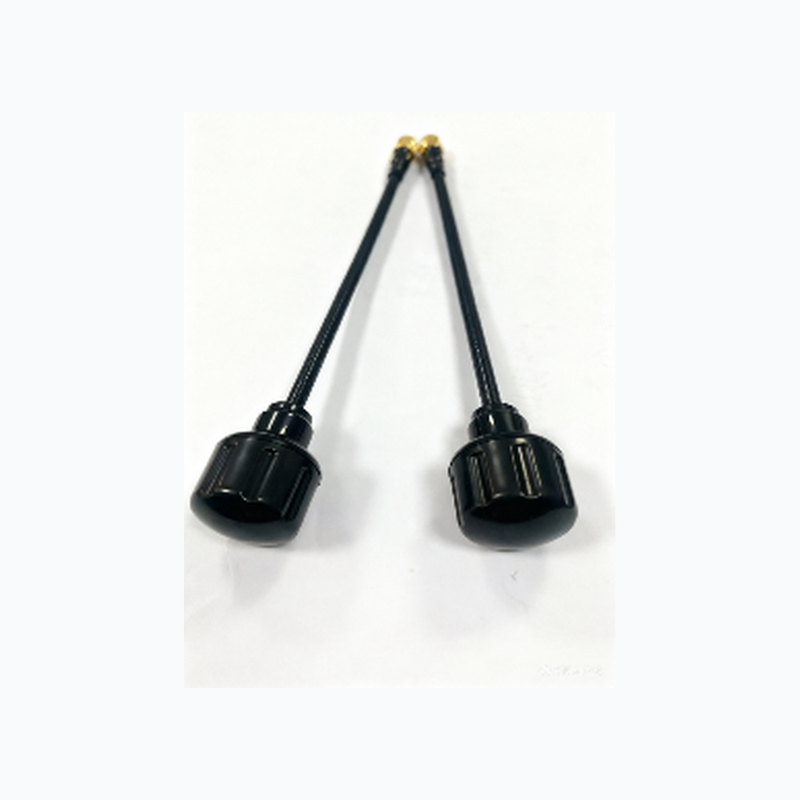

YC-A-COM-0047 | 4.9–8.0 GHz Ribbed Cabled Antenna
Price on request
Request a quoteCommunication antenna
Cabled communication antenna with a black ribbed radome, covering 4900–8000 MHz for video links and RF equipment integration. The assembly can be reviewed against the available installation space and connection requirements.
Key specifications
| Frequency range | 4900–8000 MHz |
|---|---|
| Gain | 4 dBi |
| Input impedance | 50 Ω |
| VSWR | ≤ 1.8 (4900–8000 MHz) |
| Maximum input power | 50 W |
| Connector | RP-SMA |
| Dimensions | 22 × 130 ± 2 mm |
| Radome | Black ABS |
| Operating temperature | −40 to 60 °C |
Supply and customization
Standard MOQ: 1 piece. Typical sample lead time: 2 weeks; volume lead time: 4 weeks. Connector and cable configurations can be reviewed for the project; final delivery is subject to quotation.
