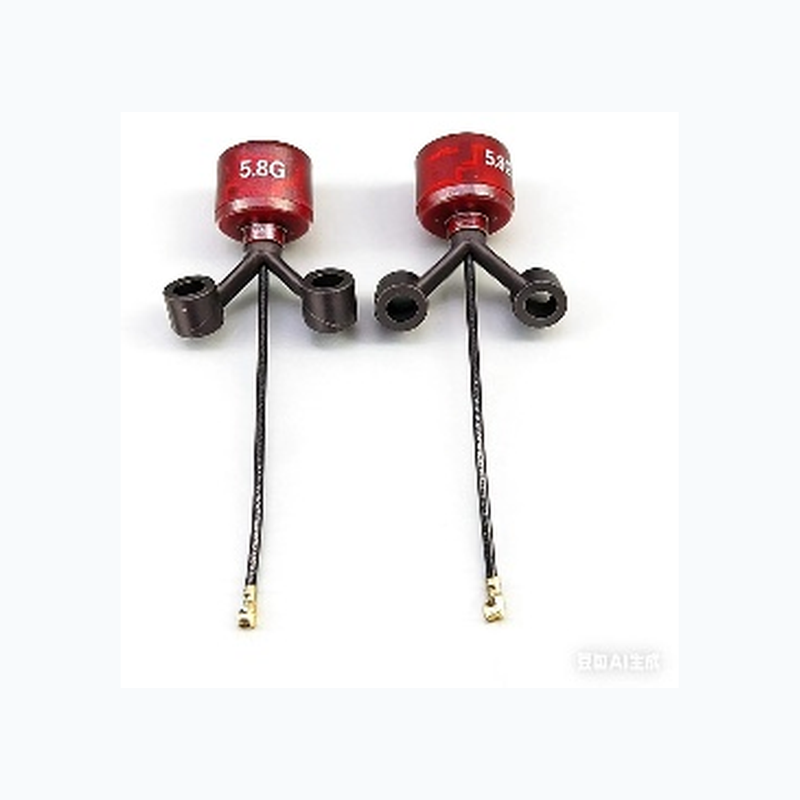

YC-A-COM-0046 | 5.2–6.0 GHz Compact Cabled Antenna
Price on request
Request a quoteCommunication antenna
Compact cabled antenna covering 5200–6000 MHz for integration into small RF devices. Connector, cable and radome colour can be confirmed to suit the installation.
Key specifications
| Frequency range | 5200–6000 MHz |
|---|---|
| Gain | 3 dBi |
| Input impedance | 50 Ω |
| VSWR | ≤ 2.0 (5200–6000 MHz) |
| Maximum input power | 50 W |
| Connector options | IPEX-1 / MMCX |
| Antenna body dimensions | 15 × 12 ± 2 mm |
| Cable specification | 1.37 |
| Weight | 3 g / 4 g |
| Radome | ABS; clear, black, transparent red or transparent grey |
| Operating temperature | −40 to 60 °C |
Supply and customization
Standard MOQ: 1 piece. Typical sample lead time: 2 weeks; volume lead time: 4 weeks. Final configuration and delivery schedule are subject to specification review and quotation.
