YC-A-COM-0041 | 4.8–6.0 GHz Multi-Connector Video Antenna
Price on request
Request a quoteCommunication Antennas
A compact video-transmission antenna covering 4800–6000 MHz, with multiple connector and finish options for RF equipment integration.
Key Specifications
| Frequency range | 4800–6000 MHz |
|---|---|
| Gain | 3.5 dBi |
| Input impedance | 50 Ω |
| Maximum input power | 50 W |

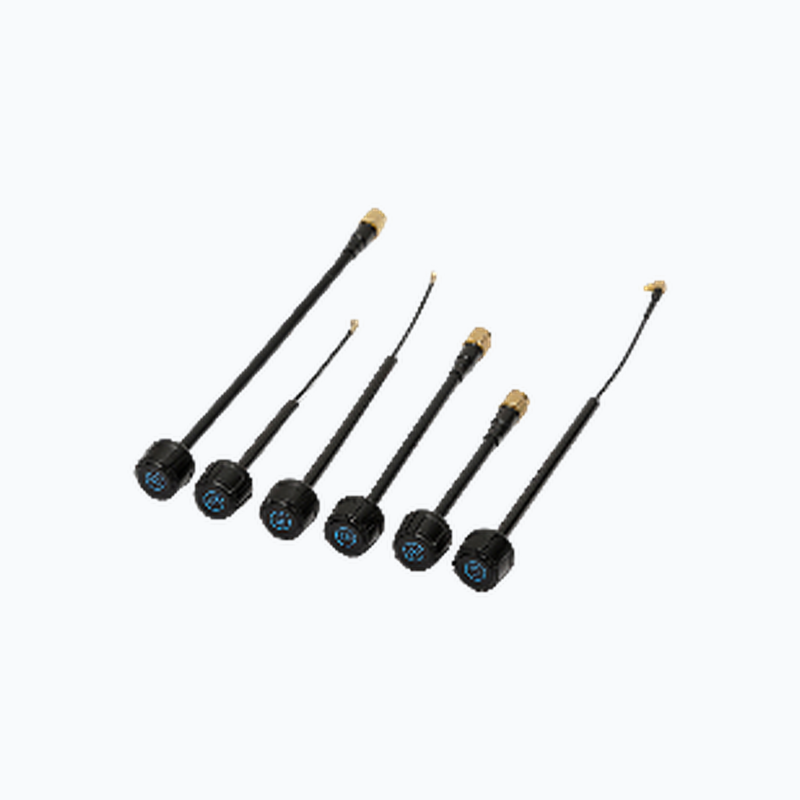

| Connector options | RP-SMA / SMA / I-PEX 1 / MMCX / MMCX-L |

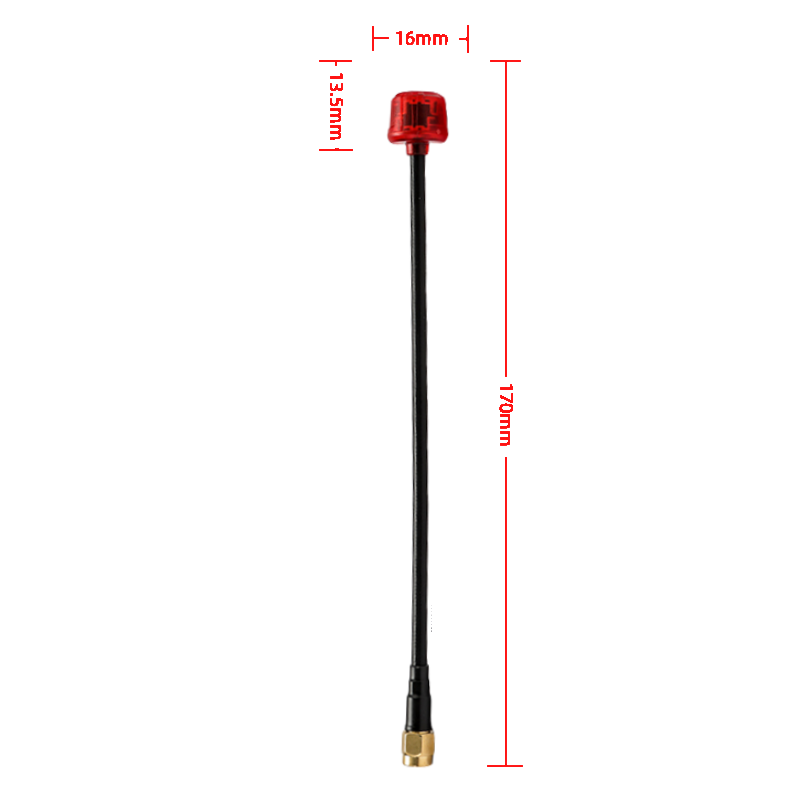

| Dimensions | 13.5 × 170 ± 2 mm; maximum diameter 16 mm |
| Weight | SMA: 11 g; I-PEX: 5 g; MMCX: 6 g |
| Radome material | ABS |
| Finish options | Black / Transparent red |
| Operating temperature | −40 to +60 °C |
| Rated wind speed | 60 m/s |
Configuration & Delivery
Share your connector, installation space, preferred finish and target band so we can confirm the configuration. Standard MOQ is 1 unit; typical sample lead time is 2 weeks and bulk lead time is 4 weeks. Final terms are subject to quotation.
