YC-A-COM-0040 | 5.2–6.0 GHz Dual-Diamond Video Antenna
Price on request
Request a quoteCommunication Antennas
A dual-diamond video-transmission antenna covering 5200–6000 MHz. Black and blue finishes and RP-SMA / SMA connectors are available for RF equipment integration.
Key Specifications
| Frequency range | 5200–6000 MHz |
|---|---|
| Gain | 6 dBi |
| Input impedance | 50 Ω |
| VSWR | ≤1.5 (5200–6000 MHz) |
| Maximum input power | 50 W |
| Connector options | RP-SMA / SMA |

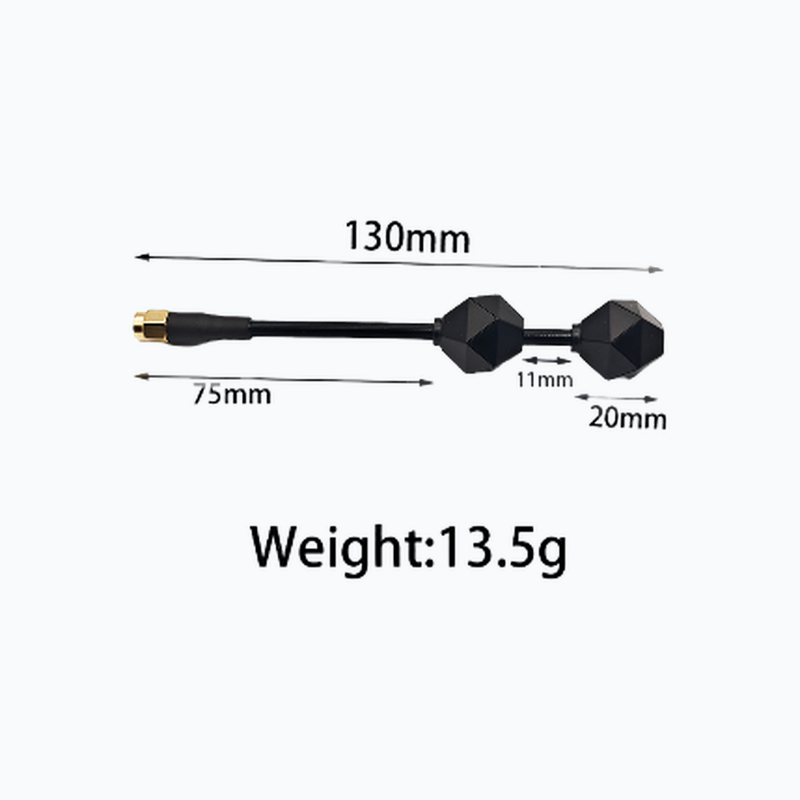

| Dimensions | 20 × 130 ± 2 mm |
| Weight | 13.5 g (SMA configuration) |
| Radome material | ABS |

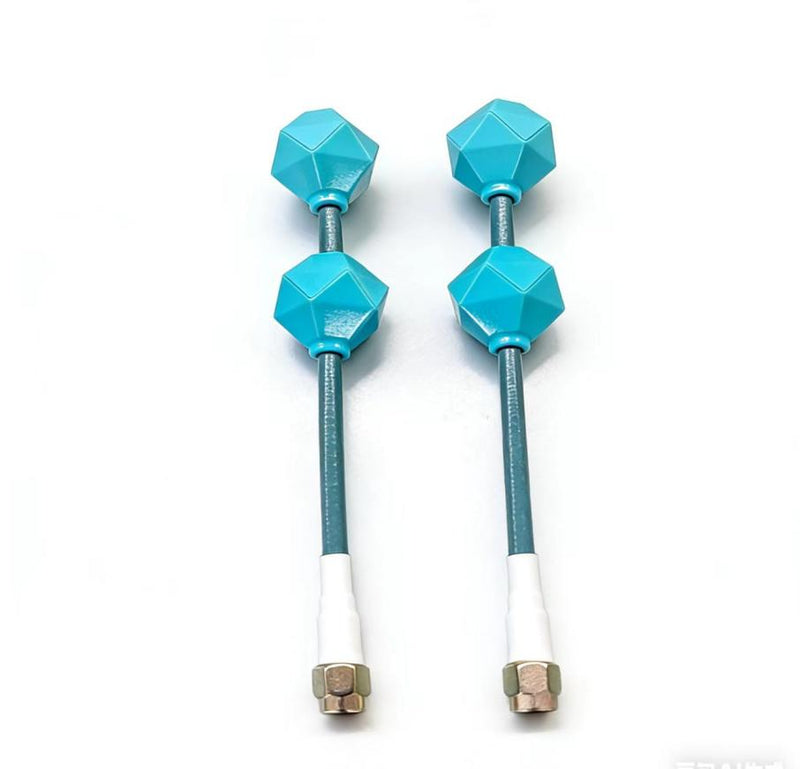

| Finish | Black / Blue |
| Operating temperature | −40 to +60 °C |
| Rated wind speed | 60 m/s |
Configuration & Delivery
Share your preferred finish, connector, installation space and target band so we can confirm the configuration. Standard MOQ is 1 unit; typical sample lead time is 2 weeks and bulk lead time is 4 weeks. Final terms are subject to quotation.
