YC-A-COM-0038 | 4.8–6.0 GHz Diamond-Shaped Video Antenna
Price on request
Request a quoteCommunication Antennas
A diamond-shaped video-transmission antenna operating at 4800–6000 MHz, with RP-SMA and SMA connector options for RF equipment integration.
Key Specifications
| Frequency range | 4800–6000 MHz |
|---|---|
| Gain | 5 dBi |
| Input impedance | 50 Ω |
| VSWR | ≤1.5 (4800–6000 MHz) |
| Maximum input power | 50 W |
| Connector options | RP-SMA / SMA |

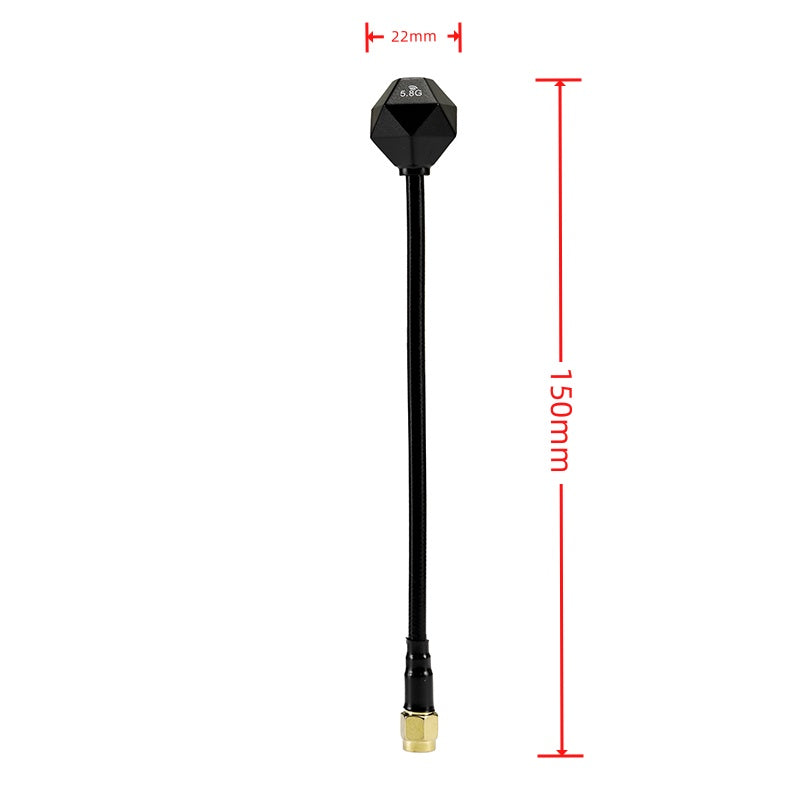

| Dimensions | 22 × 150 ± 2 mm |
| Weight | 13 g (SMA configuration) |
| Radome material | ABS |
| Color | Black |
| Operating temperature | −40 to +60 °C |
| Rated wind speed | 60 m/s |
Configuration & Delivery
Share your installation space, connector and target-band requirements so we can confirm the configuration. Standard MOQ is 1 unit; typical sample lead time is 2 weeks and bulk lead time is 4 weeks. Final terms are subject to quotation.
