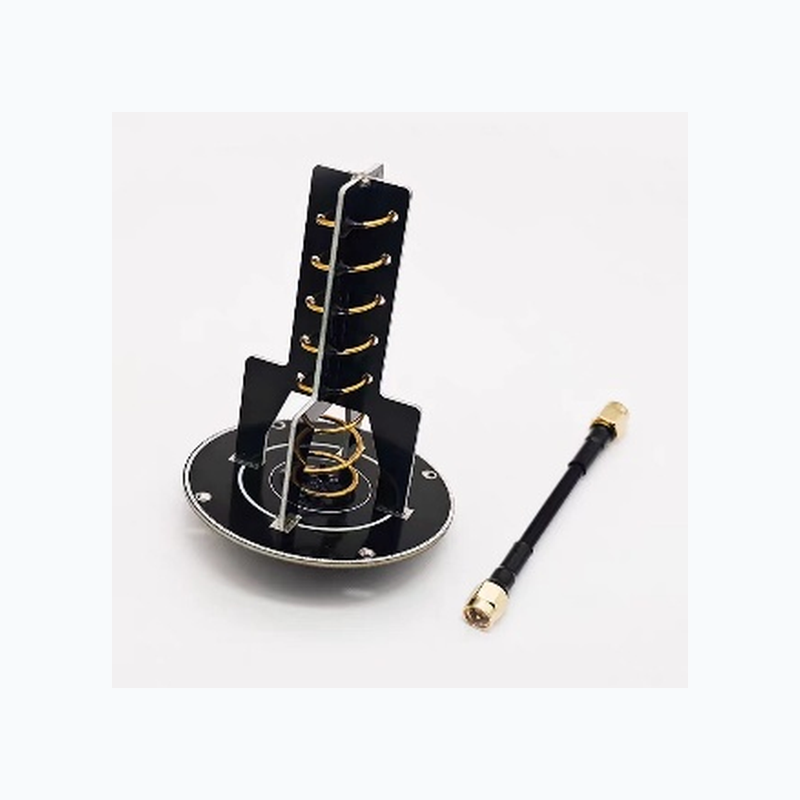

YC-A-COM-0037 | 4.9–6.0 GHz Helical Communication Antenna
Price on request
Request a quoteCommunication Antennas
A helical communication antenna covering 4900–6000 MHz with an SMA connector, suitable for RF equipment integration and custom link designs.
Key Specifications
| Frequency range | 4900–6000 MHz |
|---|---|
| Gain | 13 dBi |
| Input impedance | 50 Ω |
| VSWR | ≤1.5 (4900–6000 MHz) |
| Maximum input power | 50 W |
| Connector | SMA |
| Dimensions | 92 × 68 ± 2 mm |
| Weight | 30 g (SMA configuration) |
| Main material | PCB |
| Color | Black |
| Operating temperature | −40 to +60 °C |
| Rated wind speed | 60 m/s |
Configuration & Delivery
Share your installation space, connector and target-band requirements so we can confirm the configuration. Standard MOQ is 1 unit; typical sample lead time is 2 weeks and bulk lead time is 4 weeks. Final terms are subject to quotation.
