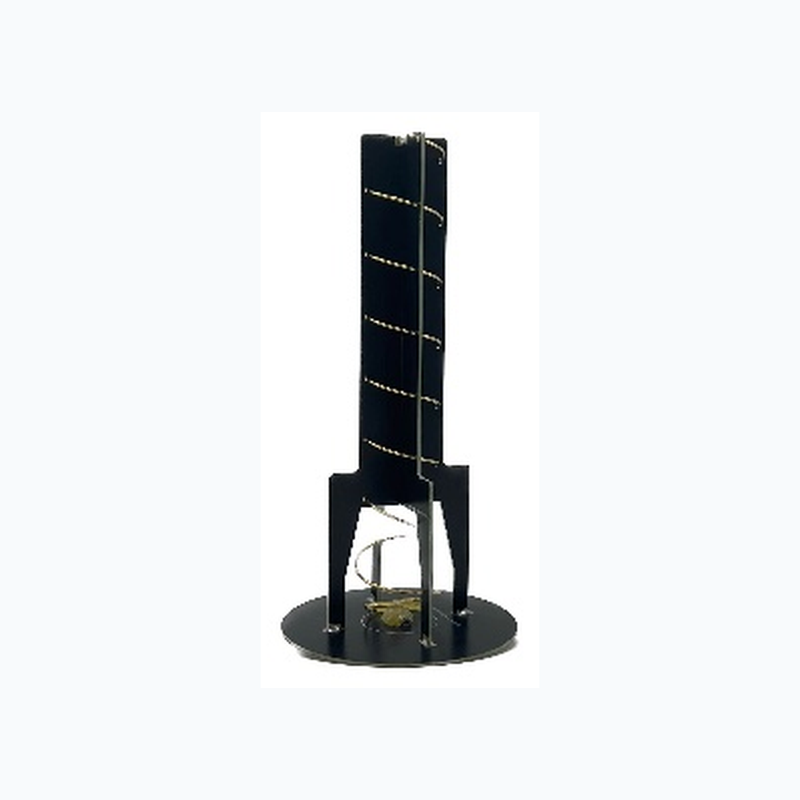

YC-A-COM-0036 | 3.0–3.6 GHz Pagoda-Style Communication Antenna
Price on request
Request a quoteCommunication Antenna
Pagoda-style communication antenna covering 3000–3600 MHz, with SMA and RP-SMA connector options for equipment integration and customized RF links.
Key specifications
| Frequency range | 3000–3600 MHz |
|---|---|
| Gain | 10 dBi |
| Input impedance | 50 Ω |
| VSWR | ≤1.5 at 3300 MHz |
| Maximum input power | 50 W |
| Connector options | SMA / RP-SMA |
| Approximate dimensions | 210 × 100 mm |
| Weight | Approx. 82 g (SMA configuration) |
| Radome material | ABS |
| Operating temperature | −40 to +60 °C |
| Rated wind speed | 60 m/s |
Configuration and delivery
Provide installation space, connector and target frequency requirements to confirm the configuration. Standard MOQ: 1 unit; typical sample lead time: 2 weeks; typical volume lead time: 4 weeks. Final terms are subject to quotation.
