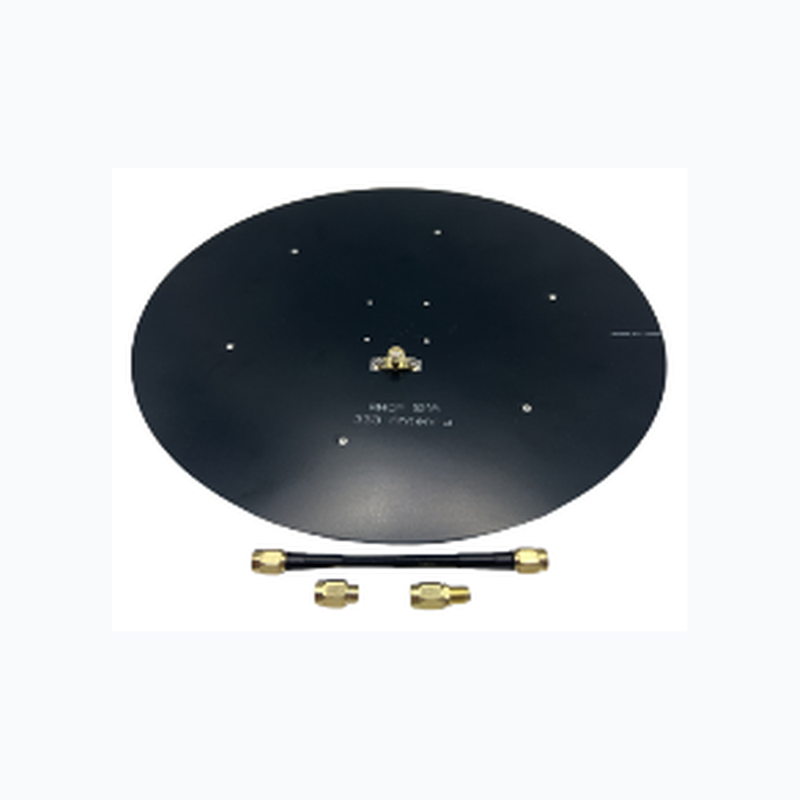

YC-A-COM-0035 | 3.0–3.6 GHz Panel Communication Antenna
Price on request
Request a quoteCommunication Antenna
3.0–3.6 GHz panel antenna for equipment integration. Connector and cable configurations can be discussed for your project.
Key Specifications
| Frequency range | 3000–3600 MHz |
|---|---|
| Gain | 15 dBi |
| Input impedance | 50 Ω |
| VSWR | ≤ 1.5 at 3300 MHz |
| Maximum input power | 50 W |
| Connector | SMA |
| Dimensions | Approx. 200 × 200 mm (±2 mm) |
| Weight | Approx. 117 g |
| Housing material | ABS |
| Operating temperature | −40 to +60 °C |
Confirm connector and accessories with the selected configuration.
Standard MOQ: 1 unit. Sample lead time: about 2 weeks. Bulk lead time: about 4 weeks.
