YC-A-COM-0032 | 4.8–5.8 GHz Lollipop Communication Antenna
Price on request
Request a quoteCommunication Antenna

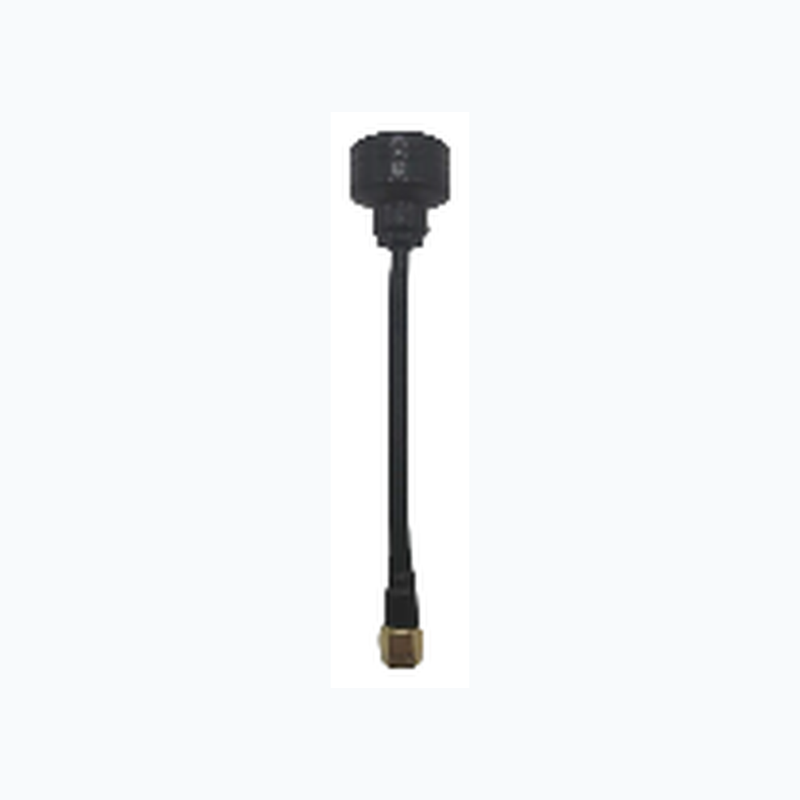

Lollipop-style 4.8–5.8 GHz communication antenna for equipment integration. Connector and cable configurations can be discussed for your project.
Key Specifications
| Frequency range | 4800–5800 MHz |
|---|---|
| Gain | 5 dBi |
| Input impedance | 50 Ω |
| VSWR | ≤ 1.5 at 5800 MHz |
| Maximum input power | 50 W |
| Connector | RP-SMA; other connectors on request |
| Dimensions | Approx. 22 × 130 mm (±2 mm) |
| Weight | Approx. 12 g (SMA configuration) |
| Housing material | ABS |
| Operating temperature | −40 to +60 °C |
Confirm connector and cable length with the selected configuration.
Standard MOQ: 1 unit. Sample lead time: about 2 weeks. Bulk lead time: about 4 weeks.
