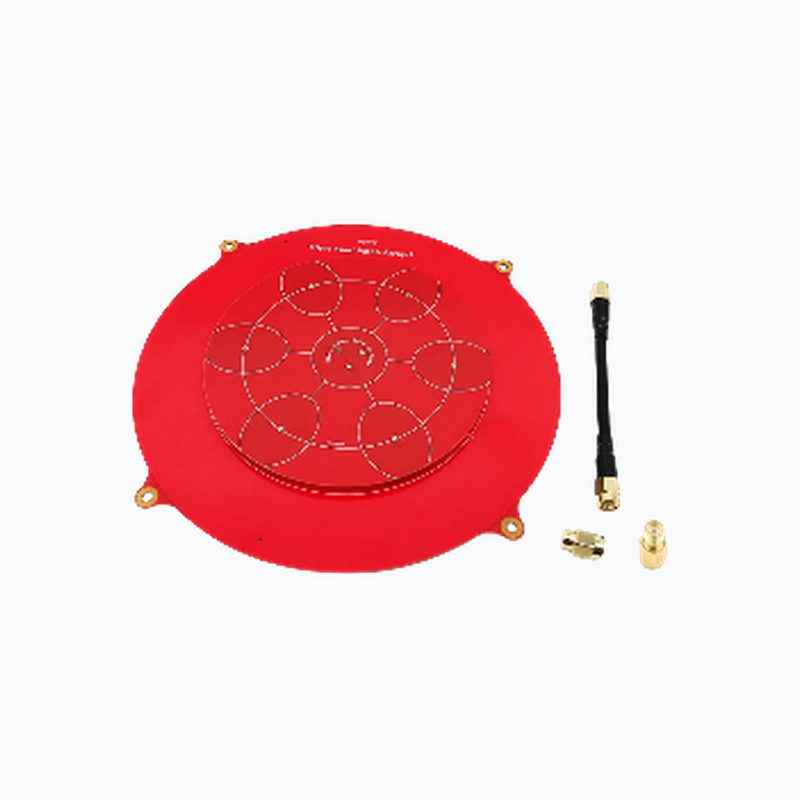

YC-A-COM-0026 | 5.8 GHz Large Panel Communication Antenna
Price on request
Request a quoteCommunication Antenna
Large-format 5.8 GHz panel antenna for equipment integration. Connector and cable configurations can be discussed for your project.
Key Specifications
| Frequency range | 5500–6000 MHz |
|---|---|
| Gain | 14 dBi |
| Input impedance | 50 Ω |
| VSWR | ≤ 1.5 at 5800 MHz |
| Maximum input power | 50 W |
| Connector | SMA |
| Dimensions | Approx. 150 × 150 mm (±2 mm) |
| Weight | Approx. 25 g |
| Housing material | ABS |
| Operating temperature | −40 to +60 °C |
Confirm connector, cable and housing color with the selected configuration.
Standard MOQ: 1 unit. Sample lead time: about 2 weeks. Bulk lead time: about 4 weeks.
