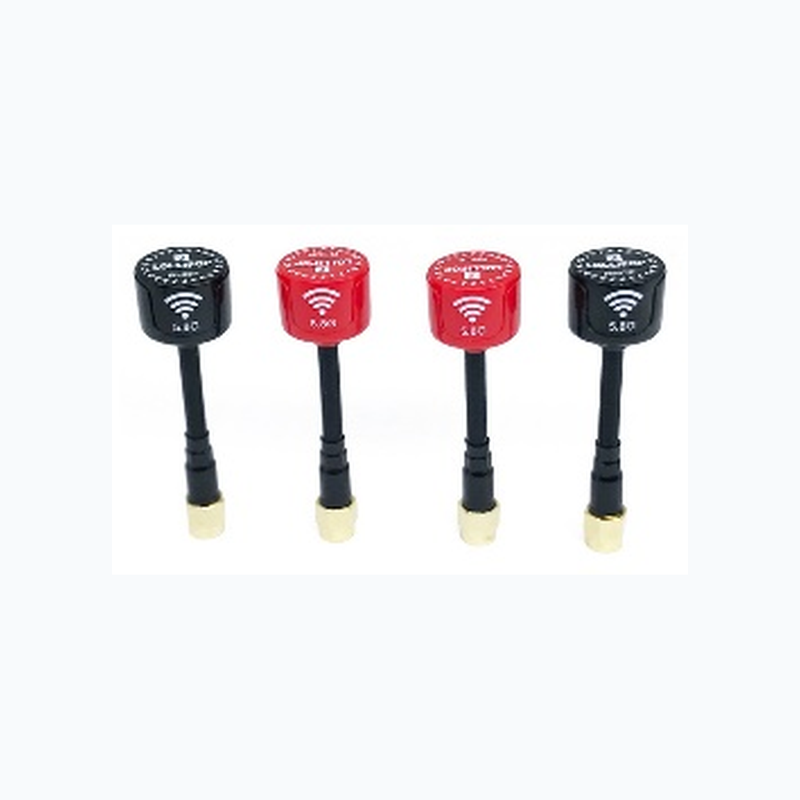

YC-A-COM-0013 | 5.8 GHz Lollipop-Style Communication Antenna
Price on request
Request a quote5.8 GHz lollipop-style communication antenna covering 5500–6000 MHz with multiple RF connector options.
Technical specifications
| Frequency range | 5500–6000 MHz |
|---|---|
| Gain | 3 dBi |
| Impedance | 50 Ω |
| VSWR at 5800 MHz | ≤1.5 |
| Max. input power | 50 W |
| Connector options | RP-SMA, SMA, U.FL, MMCX, MMCX-L |
| Dimensions | Approx. 14 × 80 mm |
| Weight | Approx. 7 g (SMA), 3 g (MMCX), 2 g (U.FL) |
| Radome | ABS |
| Operating temperature | −40 to +60 °C |
Configuration notes
Connector, cable length and housing color can be confirmed for the target installation. Please specify the required configuration in your inquiry.
Ordering and delivery
- Standard MOQ: 1 unit
- Typical sample lead time: 2 weeks
- Typical volume-production lead time: 4 weeks
Final configuration and schedule are confirmed in the quotation.
