YC-TI-ACC-0001 | Ceyear Microwave Test Accessories
Price on request
Request a quoteProduct overview
Accessory selection for microwave and millimeter-wave testing, including adapters, loads, attenuators, switches, cables, test antennas, probes, amplifiers and detectors. Browse models, interfaces and specifications by category.
Expand a category to view its selection tables. Wide tables can be scrolled horizontally.
Specifications by category

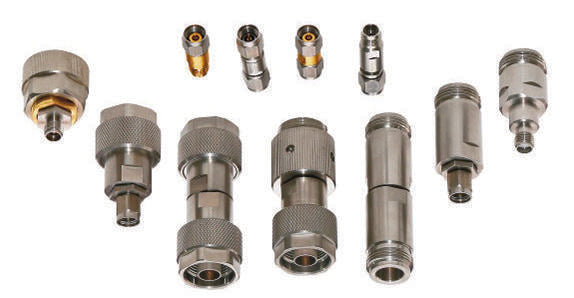

Coaxial adapters
Select connector type, gender, frequency range and VSWR. Test-grade and metrology-grade adapters are listed separately.
Test-grade adapters
| Model | Product | Interface type | Frequency range | VSWR(Max) |
|---|---|---|---|---|
| 71101ME | Coaxial adapter | N(f)-N(f) | DC to 18GHz | 1.15 |
| 71102ME | Coaxial adapter | N(m)-N(m) | DC to 18GHz | 1.15 |
| 81101ME | Coaxial adapter | N(f)-N(m) | DC to 18GHz | 1.15 |
| 71109ME | Coaxial adapter | 3.5mm(f)-3.5mm(f) | DC to 26.5GHz | 1.12 |
| 71110ME | Coaxial adapter | 3.5mm(m)-3.5mm(m) | DC to 26.5GHz | 1.12 |
| 71111ME | Coaxial adapter | 3.5mm(f)-3.5mm(m) | DC to 26.5GHz | 1.12 |
| 71115ME | Coaxial adapter | N(f)-3.5mm(m) | DC to 18GHz | 1.15 |
| 71116ME | Coaxial adapter | N(m)-3.5mm(m) | DC to 18GHz | 1.15 |
| 71117ME | Coaxial adapter | N(m)-3.5mm(f) | DC to 18GHz | 1.15 |
| 71118ME | Coaxial adapter | N(f)-3.5mm(f) | DC to 18GHz | 1.15 |
| 71119ME | Coaxial adapter | 2.4mm(m)-2.4mm(m) | DC to 50GHz | 1.22 |
| 71120ME | Coaxial adapter | 2.4mm(f)-2.4mm(f) | DC to 50GHz | 1.22 |
| 71121ME | Coaxial adapter | 2.4mm(f)-2.4mm(m) | DC to 50GHz | 1.22 |
| 71122ME | Coaxial adapter | 2.4mm(m)-3.5mm(m) | DC to 26.5GHz | 1.15 |
| 71123ME | Coaxial adapter | 2.4mm(m)-3.5mm(f) | DC to 26.5GHz | 1.15 |
| 71124ME | Coaxial adapter | 2.4mm(f)-3.5mm(m) | DC to 26.5GHz | 1.15 |
| 71125ME | Coaxial adapter | 2.4mm(f)-3.5mm(f) | DC to 26.5GHz | 1.15 |
| 81118ME | Coaxial adapter | 1.85mm(m)-1.85mm(m) | DC to 65GHz | 1.30 |
| 81119ME | Coaxial adapter | 1.85mm(f)-1.85mm(f) | DC to 65GHz | 1.30 |
| 81120ME | Coaxial adapter | 1.85mm(f)-1.85mm(m) | DC to 65GHz | 1.30 |
| 81124ME | Coaxial adapter | 2.92mm(m)-2.92mm(m) | DC to 40GHz | 1.17 |
| 81125ME | Coaxial adapter | 2.92mm(f)-2.92mm(f) | DC to 40GHz | 1.17 |
| 81126ME | Coaxial adapter | 2.92mm(m)-2.92mm(f) | DC to 40GHz | 1.17 |
| 81127ME | Coaxial adapter | 2.4mm(m)-2.92mm(m) | DC to 40GHz | 1.17 |
| 81128ME | Coaxial adapter | 2.4mm(f)-2.92mm(f) | DC to 40GHz | 1.17 |
| 81129ME | Coaxial adapter | 2.4mm(m)-2.92mm(f) | DC to 40GHz | 1.17 |
| 81130ME | Coaxial adapter | 2.4mm(f)-2.92mm(m) | DC to 40GHz | 1.17 |
| 81190ME | Coaxial adapter | SMA(m)-SMA(m) | DC to 18GHz | 1.15 |
| 81191ME | Coaxial adapter | SMA(f)-SMA(f) | DC to 18GHz | 1.15 |
| 81192ME | Coaxial adapter | SMA(f)-SMA(m) | DC to 18GHz | 1.15 |
| 81193ME | Coaxial adapter | N(m)-SMA(m) | DC to 18GHz | 1.15 |
| 81194ME | Coaxial adapter | N(f)-SMA(f) | DC to 18GHz | 1.15 |
| 81195ME | Coaxial adapter | N(m)-SMA(f) | DC to 18GHz | 1.15 |
| 81196ME | Coaxial adapter | N(f)-SMA(m) | DC to 18GHz | 1.15 |
Metrology-grade adapters
| Model | Product | Interface type | Frequency range | VSWR(Max) |
|---|---|---|---|---|
| 71101 | Coaxial adapter | N(f)-N(f) | DC to 18GHz | 1.083 |
| 71102 | Coaxial adapter | N(m)-N(m) | DC to 18GHz | 1.083 |
| 71103 | Coaxial adapter | N(m)-7mm | DC to 18GHz | 1.083 |
| 71104 | Coaxial adapter | N(f)-7mm | DC to 18GHz | 1.083 |
| 81101 | Coaxial adapter | N(m)-N(f) | DC to 18GHz | 1.083 |
| 81103 | Coaxial adapter | N75Ω(m)-N50Ω(f) | DC to 3GHz | 1.25 |
| 81103A | Coaxial adapter | N75Ω(m)-N50Ω(m) | DC to 3GHz | 1.25 |
| 81103B | Coaxial adapter | N75Ω(f)-N50Ω(m) | DC to 3GHz | 1.25 |
| 81103C | Coaxial adapter | N75Ω(f)-N50Ω(f) | DC to 3GHz | 1.25 |
| 81104 | Coaxial adapter | 7/16(f)-N(f) | DC to 7.5GHz | 1.083 |
| 81104A | Coaxial adapter | 7/16(f)-N(m) | DC to 7.5GHz | 1.083 |
| 81104B | Coaxial adapter | 7/16(m)-N(f) | DC to 7.5GHz | 1.083 |
| 81104C | Coaxial adapter | 7/16(m)-N(m) | DC to 7.5GHz | 1.083 |
| 71109 | Coaxial adapter | 3.5mm(f)-3.5mm(f) | DC to 26.5GHz | 1.106 |
| 71110 | Coaxial adapter | 3.5mm(m)-3.5mm(m) | DC to 26.5GHz | 1.106 |
| 71111 | Coaxial adapter | 3.5mm(m)-3.5mm(f) | DC to 26.5GHz | 1.106 |
| 71113 | Coaxial adapter | 3.5mm(f)-7mm | DC to 18GHz | 1.106 |
| 71114 | Coaxial adapter | 3.5mm(m)-7mm | DC to 18GHz | 1.106 |
| 71115 | Coaxial adapter | 3.5mm(m)-N(f) | DC to 18GHz | 1.083 |
| 71116 | Coaxial adapter | 3.5mm(m)-N(m) | DC to 18GHz | 1.083 |
| 71117 | Coaxial adapter | 3.5mm(f)-N(m) | DC to 18GHz | 1.083 |
| 71118 | Coaxial adapter | 3.5mm(f)-N(f) | DC to 18GHz | 1.083 |
| 71119 | Coaxial adapter | 2.4mm(m)-2.4mm(m) | DC to 40GHz | 1.12 |
| 71120 | Coaxial adapter | 2.4mm(f)-2.4mm(f) | DC to 40GHz | 1.12 |
| 71121 | Coaxial adapter | 2.4mm(m)-2.4mm(f) | DC to 40GHz | 1.12 |
| 71122 | Coaxial adapter | 2.4mm(m)-3.5mm(m) | DC to 26.5GHz | 1.15 |
| 71123 | Coaxial adapter | 2.4mm(m)-3.5mm(f) | DC to 26.5GHz | 1.15 |
| 71124 | Coaxial adapter | 2.4mm(f)-3.5mm(m) | DC to 26.5GHz | 1.15 |
| 71125 | Coaxial adapter | 2.4mm(f)-3.5mm(f) | DC to 26.5GHz | 1.15 |
| 81105 | Coaxial adapter | 2.4mm(f)-7mm | DC to 18GHz | 1.10 |
| 81105A | Coaxial adapter | 2.4mm(m)-7mm | DC to 18GHz | 1.10 |
| 81106 | Coaxial adapter | 2.4mm(f)-2.92mm(f) | DC to 40GHz | 1.15 |
| 81106A | Coaxial adapter | 2.4mm(f)-2.92mm(m) | DC to 40GHz | 1.15 |
| 81106B | Coaxial adapter | 2.4mm(m)-2.92mm(f) | DC to 40GHz | 1.15 |
| 81106C | Coaxial adapter | 2.4mm(m)-2.92mm(m) | DC to 40GHz | 1.15 |
| 81107 | Coaxial adapter | 2.4mm(f)-N(f) | DC to 18GHz | 1.10 |
| 81107A | Coaxial adapter | 2.4mm(f)-N(m) | DC to 18GHz | 1.10 |
| 81107B | Coaxial adapter | 2.4mm(m)-N(f) | DC to 18GHz | 1.10 |
| 81107C | Coaxial adapter | 2.4mm(m)-N(m) | DC to 18GHz | 1.10 |
| 81108 | Coaxial adapter | 2.92mm(f)-N(f) | DC to 18GHz | 1.15 |
| 81108A | Coaxial adapter | 2.92mm(f)-N(m) | DC to 18GHz | 1.15 |
| 81108B | Coaxial adapter | 2.92mm(m)-N(f) | DC to 18GHz | 1.15 |
| 81108C | Coaxial adapter | 2.92mm(m)-N(m) | DC to 18GHz | 1.15 |
| 81109 | Coaxial adapter | 2.92mm(m)-7mm | DC to 18GHz | 1.10 |
| 81109A | Coaxial adapter | 2.92mm(f)-7mm | DC to 18GHz | 1.10 |
| 81110 | Coaxial adapter | 2.92mm(m)-2.92mm(m) | DC to 40GHz | 1.12 |
| 81111 | Coaxial adapter | 2.92mm(m)-2.92mm(f) | DC to 40GHz | 1.12 |
| 81112 | Coaxial adapter | 2.92mm(f)-2.92mm(f) | DC to 40GHz | 1.12 |
| 81113 | Coaxial adapter | 3.5mm(f)-1.85mm(f) | DC to 26.5GHz | 1.15 |
| 81113A | Coaxial adapter | 3.5mm(f)-1.85mm(m) | DC to 26.5GHz | 1.15 |
| 81113B | Coaxial adapter | 3.5mm(m)-1.85mm(f) | DC to 26.5GHz | 1.15 |
| 81113C | Coaxial adapter | 3.5mm(m)-1.85mm(m) | DC to 26.5GHz | 1.15 |
| 81114 | Coaxial adapter | 2.4mm(f)-1.85mm(f) | DC to 50GHz | 1.15 |
| 81114A | Coaxial adapter | 2.4mm(f)-1.85mm(m) | DC to 50GHz | 1.15 |
| 81114B | Coaxial adapter | 2.4mm(m)-1.85mm(f) | DC to 50GHz | 1.15 |
| 81114C | Coaxial adapter | 2.4mm(m)-1.85mm(m) | DC to 50GHz | 1.15 |
| 81115 | Coaxial adapter | 2.92mm(f)-1.85mm(f) | DC to 40GHz | 1.15 |
| 81115A | Coaxial adapter | 2.92mm(f)-1.85mm(m) | DC to 40GHz | 1.15 |
| 81115B | Coaxial adapter | 2.92mm(m)-1.85mm(f) | DC to 40GHz | 1.15 |
| 81115C | Coaxial adapter | 2.92mm(m)-1.85mm(m) | DC to 40GHz | 1.15 |
| 81118 | Coaxial adapter | 1.85mm(m)-1.85mm(m) | DC to 67GHz | 1.25 |
| 81119 | Coaxial adapter | 1.85mm(f)-1.85mm(f) | DC to 67GHz | 1.25 |
| 81120 | Coaxial adapter | 1.85mm(m)-1.85mm(f) | DC to 67GHz | 1.25 |
| 87608B | Coaxial adapter | 1mm(f)-1mm(m) | DC to 110GHz | 1.50 |
| 87608C | Coaxial adapter | 1mm(m)-1mm(m) | DC to 110GHz | 1.50 |
| 87608D | Coaxial adapter | 1mm(f)-1mm(f) | DC to 110GHz | 1.50 |
| 87611LA | Coaxial adapter | 1mm(f)-1.85mm(m) | DC to 67GHz | 1.30 |
| 87611LB | Coaxial adapter | 1mm(m)-1.85mm(f) | DC to 67GHz | 1.30 |
| 87611LC | Coaxial adapter | 1mm(m)-1.85mm(m) | DC to 67GHz | 1.30 |
| 87611LD | Coaxial adapter | 1mm(f)-1.85mm(f) | DC to 67GHz | 1.30 |
| 87612HA | Coaxial adapter | 1mm(f)-2.4mm(m) | DC to 50GHz | 1.22 |
| 87612HB | Coaxial adapter | 1mm(m)-2.4mm(f) | DC to 50GHz | 1.22 |
| 87612HC | Coaxial adapter | 1mm(m)-2.4mm(m) | DC to 50GHz | 1.22 |
| 87612HD | Coaxial adapter | 1mm(f)-2.4mm(f) | DC to 50GHz | 1.22 |
| 81197 | Coaxial adapter | L16(f)-N(f) | DC to 18GHz | 1.10 |
| 81197A | Coaxial adapter | L16(f)-N(m) | DC to 18GHz | 1.10 |
| 81197B | Coaxial adapter | L16(m)-N(f) | DC to 18GHz | 1.10 |
| 81197C | Coaxial adapter | L16(m)-N(m) | DC to 18GHz | 1.10 |
Torque wrenches
Use the jaw size and nominal torque appropriate for the connector.
Wrench selection
| Model | Product | Nominal torque | Jaw size | Application |
|---|---|---|---|---|
| 87830M | 3.5mm torque wrench | 8inch.lbs | 5/16-inch.hex | Torque-controlled connection of 1.85mm, 2.4mm, 2.92mm and 3.5mm adapters |
| 87831M | N-type torque wrench | 12inch.lbs | 3/4-inch.hex | Torque-controlled connection of N-type adapters |
| — | Open-end wrench | — | 7.2mm | Holding the female end of 3.5mm, 2.4mm, 2.92mm and 1.85mm adapters |
87601-series microwave accessory kits
Each configuration is a kit for a different connector interface. Quantities apply only to the selected kit; they do not mean that all accessories on this page are supplied together.
87601: N-interface kit
| Accessory model | Accessory name | Quantity (pcs) | Interface or part reference |
|---|---|---|---|
| 81107 | Coaxial adapter | 1 | 2.4mm(f)-N(f) |
| 81107A | Coaxial adapter | 1 | 2.4mm(f)-N(m) |
| 81107B | Coaxial adapter | 1 | 2.4mm(m)-N(f) |
| 81107C | Coaxial adapter | 1 | 2.4mm(m)-N(m) |
| 81108 | Coaxial adapter | 1 | 2.92mm(f)-N(f) |
| 81108A | Coaxial adapter | 1 | 2.92mm(f)-N(m) |
| 81108B | Coaxial adapter | 1 | 2.92mm(m)-N(f) |
| 81108C | Coaxial adapter | 1 | 2.92mm(m)-N(m) |
| 71115ME | Coaxial adapter | 1 | N(f)-3.5mm(m) |
| 71116ME | Coaxial adapter | 1 | N(m)-3.5mm(m) |
| 71117ME | Coaxial adapter | 1 | N(m)-3.5mm(f) |
| 71118ME | Coaxial adapter | 1 | N(f)-3.5mm(f) |
| 81193ME | Coaxial adapter | 1 | N(m)-SMA(m) |
| 81194ME | Coaxial adapter | 1 | N(f)-SMA(f) |
| 81195ME | Coaxial adapter | 1 | N(m)-SMA(f) |
| 81196ME | Coaxial adapter | 1 | N(f)-SMA(m) |
| 71101ME | Coaxial adapter | 1 | N(f)-N(f) |
| 71102ME | Coaxial adapter | 1 | N(m)-N(m) |
| 87830M | 3.5mm torque wrench | 1 | — |
| 87831M | N-type torque wrench | 1 | — |
| — | Wrench | 1 | 8.333.043 |
87601A: 3.5 mm-interface kit
| Accessory model | Accessory name | Quantity (pcs) | Interface or part reference |
|---|---|---|---|
| 71115ME | Coaxial adapter | 1 | N(f)-3.5mm(m) |
| 71116ME | Coaxial adapter | 1 | N(m)-3.5mm(m) |
| 71117ME | Coaxial adapter | 1 | N(m)-3.5mm(f) |
| 71118ME | Coaxial adapter | 1 | N(f)-3.5mm(f) |
| 71109ME | Coaxial adapter | 1 | 3.5mm(f)-3.5mm(f) |
| 71110ME | Coaxial adapter | 1 | 3.5mm(m)-3.5mm(m) |
| 71122ME | Coaxial adapter | 1 | 2.4mm(m)-3.5mm(m) |
| 71123ME | Coaxial adapter | 1 | 2.4mm(m)-3.5mm(f) |
| 71124ME | Coaxial adapter | 1 | 2.4mm(f)-3.5mm(m) |
| 71125ME | Coaxial adapter | 1 | 2.4mm(f)-3.5mm(f) |
| 87830M | 3.5mm torque wrench | 1 | — |
| 87831M | N-type torque wrench | 1 | — |
| — | Wrench | 1 | 8.333.043 |
87601B: 2.92 mm-interface kit
| Accessory model | Accessory name | Quantity (pcs) | Interface or part reference |
|---|---|---|---|
| 81124ME | Coaxial adapter | 1 | 2.92mm(m)-2.92mm(m) |
| 81125ME | Coaxial adapter | 1 | 2.92mm(f)-2.92mm(f) |
| 81127ME | Coaxial adapter | 1 | 2.4mm(m)-2.92mm(m) |
| 81128ME | Coaxial adapter | 1 | 2.4mm(f)-2.92mm(f) |
| 81129ME | Coaxial adapter | 1 | 2.4mm(m)-2.92mm(f) |
| 81130ME | Coaxial adapter | 1 | 2.4mm(f)-2.92mm(m) |
| 81108 | Coaxial adapter | 1 | 2.92mm(f)-N(f) |
| 81108A | Coaxial adapter | 1 | 2.92mm(f)-N(m) |
| 81108B | Coaxial adapter | 1 | 2.92mm(m)-N(f) |
| 81108C | Coaxial adapter | 1 | 2.92mm(m)-N(m) |
| 87830M | 3.5mm torque wrench | 1 | — |
| 87831M | N-type torque wrench | 1 | — |
| — | Wrench | 1 | 8.333.043 |
87601C: 2.4 mm-interface kit
| Accessory model | Accessory name | Quantity (pcs) | Interface or part reference |
|---|---|---|---|
| 81127ME | Coaxial adapter | 1 | 2.4mm(m)-2.92mm(m) |
| 81128ME | Coaxial adapter | 1 | 2.4mm(f)-2.92mm(f) |
| 81129ME | Coaxial adapter | 1 | 2.4mm(m)-2.92mm(f) |
| 81130ME | Coaxial adapter | 1 | 2.4mm(f)-2.92mm(m) |
| 71119ME | Coaxial adapter | 1 | 2.4mm(m)-2.4mm(m) |
| 71120ME | Coaxial adapter | 1 | 2.4mm(f)-2.4mm(f) |
| 81107 | Coaxial adapter | 1 | 2.4mm(f)-N(f) |
| 81107A | Coaxial adapter | 1 | 2.4mm(f)-N(m) |
| 81107B | Coaxial adapter | 1 | 2.4mm(m)-N(f) |
| 81107C | Coaxial adapter | 1 | 2.4mm(m)-N(m) |
| 81114 | Coaxial adapter | 1 | 2.4mm(f)-1.85mm(f) |
| 81114A | Coaxial adapter | 1 | 2.4mm(f)-1.85mm(m) |
| 81114B | Coaxial adapter | 1 | 2.4mm(m)-1.85mm(f) |
| 81114C | Coaxial adapter | 1 | 2.4mm(m)-1.85mm(m) |
| 71122ME | Coaxial adapter | 1 | 2.4mm(m)-3.5mm(m) |
| 71123ME | Coaxial adapter | 1 | 2.4mm(m)-3.5mm(f) |
| 71124ME | Coaxial adapter | 1 | 2.4mm(f)-3.5mm(m) |
| 71125ME | Coaxial adapter | 1 | 2.4mm(f)-3.5mm(f) |
| 87830M | 3.5mm torque wrench | 1 | — |
| 87831M | N-type torque wrench | 1 | — |
| — | Wrench | 1 | 8.333.043 |
87601D: 1.85 mm-interface kit
| Accessory model | Accessory name | Quantity (pcs) | Interface or part reference |
|---|---|---|---|
| 81118 | Coaxial adapter | 1 | 1.85mm(m)-1.85mm(m) |
| 81119 | Coaxial adapter | 1 | 1.85mm(f)-1.85mm(f) |
| 81120 | Coaxial adapter | 1 | 1.85mm(f)-1.85mm(m) |
| 81115 | Coaxial adapter | 1 | 1.85mm(f)-2.92mm(f) |
| 81115A | Coaxial adapter | 1 | 1.85mm(m)-2.92mm(f) |
| 81115B | Coaxial adapter | 1 | 1.85mm(f)-2.92mm(m) |
| 81115C | Coaxial adapter | 1 | 1.85mm(m)-2.92mm(m) |
| 81114 | Coaxial adapter | 1 | 1.85mm(f)-2.4mm(f) |
| 81114A | Coaxial adapter | 1 | 1.85mm(m)-2.4mm(f) |
| 81114B | Coaxial adapter | 1 | 1.85mm(f)-2.4mm(m) |
| 81114C | Coaxial adapter | 1 | 1.85mm(m)-2.4mm(m) |
| 87830M | 3.5mm torque wrench | 1 | — |
| — | Wrench | 1 | 8.333.043 |
Microwave accessory kit ordering options
| Accessory model | Interface or type |
|---|---|
| 81107 | 2.4mm(f)-N(f) |
| 81107A | 2.4mm(f)-N(m) |
| 81107B | 2.4mm(m)-N(f) |
| 81107C | 2.4mm(m)-N(m) |
| 81108 | 2.92mm(f)-N(f) |
| 81108A | 2.92mm(f)-N(m) |
| 81108B | 2.92mm(m)-N(f) |
| 81108C | 2.92mm(m)-N(m) |
| 71115ME | 3.5mm(m)-N(f) |
| 71116ME | 3.5mm(m)-N(m) |
| 71117ME | 3.5mm(f)-N(m) |
| 71118ME | 3.5mm(f)-N(f) |
| 81193ME | SMA(m)-N(m) |
| 81194ME | SMA(f)-N(f) |
| 81195ME | SMA(f)-N(m) |
| 81196ME | SMA(m)-N(f) |
| 71101ME | N(f)-N(f) |
| 71102ME | N(m)-N(m) |
| 71122ME | 2.4mm(m)-3.5mm(m) |
| 71123ME | 2.4mm(m)-3.5mm(f) |
| 71124ME | 2.4mm(f)-3.5mm(m) |
| 71125ME | 2.4mm(f)-3.5mm(f) |
| 71109ME | 3.5mm(f)-3.5mm(f) |
| 71110ME | 3.5mm(m)-3.5mm(m) |
| 81127ME | 2.4mm(m)-2.92mm(m) |
| 81128ME | 2.4mm(f)-2.92mm(f) |
| 81129ME | 2.4mm(m)-2.92mm(f) |
| 81130ME | 2.4mm(f)-2.92mm(m) |
| 81124ME | 2.92mm(m)-2.92mm(m) |
| 81125ME | 2.92mm(f)-2.92mm(f) |
| 81114 | 2.4mm(f)-1.85mm(f) |
| 81114A | 2.4mm(f)-1.85mm(m) |
| 81114B | 2.4mm(m)-1.85mm(f) |
| 81114C | 2.4mm(m)-1.85mm(m) |
| 71119ME | 2.4mm(m)-2.4mm(m) |
| 71120ME | 2.4mm(f)-2.4mm(f) |
| 87830M | 3.5mm torque wrench |
| 87831M | N-type torque wrench |
Kit temperature range
| Condition | Minimum | Maximum |
|---|---|---|
| Operating temperature range | -20℃ | +70℃ |
| Storage temperature range | -40℃ | +70℃ |
Waveguide-to-coaxial adapters
Waveguide-to-coaxial adapter selection
| Model | Product | Frequency range(GHz) | VSWR(Max) | Waveguide | Flange | Coaxial interface |
|---|---|---|---|---|---|---|
| 71130 | Waveguide-to-coaxial adapter | 2.6 to 3.95 | 1.15 | WR284 | FDP32 | APC-7 |
| 71130A | Waveguide-to-coaxial adapter | 2.6 to 3.95 | 1.15 | WR284 | FDP32 | N(f) |
| 71130B | Waveguide-to-coaxial adapter | 2.6 to 3.95 | 1.15 | WR284 | FDP32 | N(m) |
| 71131 | Waveguide-to-coaxial adapter | 3.94 to 6 | 1.15 | WR187 | FDP48 | APC-7 |
| 71131A | Waveguide-to-coaxial adapter | 3.94 to 6 | 1.15 | WR187 | FDP48 | N(f) |
| 71131B | Waveguide-to-coaxial adapter | 3.94 to 6 | 1.15 | WR187 | FDP48 | N(m) |
| 71132 | Waveguide-to-coaxial adapter | 4.64 to 7.05 | 1.15 | WR159 | FDP58 | APC-7 |
| 71132A | Waveguide-to-coaxial adapter | 4.64 to 7.05 | 1.15 | WR159 | FDP58 | N(f) |
| 71132B | Waveguide-to-coaxial adapter | 4.64 to 7.05 | 1.15 | WR159 | FDP58 | N(m) |
| 71133 | Waveguide-to-coaxial adapter | 5.88 to 8.17 | 1.15 | WR137 | FDP70 | APC-7 |
| 71133A | Waveguide-to-coaxial adapter | 5.88 to 8.17 | 1.15 | WR137 | FDP70 | N(f) |
| 71133B | Waveguide-to-coaxial adapter | 5.88 to 8.17 | 1.15 | WR137 | FDP70 | N(m) |
| 71134 | Waveguide-to-coaxial adapter | 7 to 10 | 1.20 | WR112 | FBP84 | APC-7 |
| 71134A | Waveguide-to-coaxial adapter | 7 to 10 | 1.20 | WR112 | FBP84 | N(f) |
| 71134B | Waveguide-to-coaxial adapter | 7 to 10 | 1.20 | WR112 | FBP84 | N(m) |
| 71135 | Waveguide-to-coaxial adapter | 8 to 12.4 | 1.20 | WR90 | FBP100 | APC-7 |
| 71135A | Waveguide-to-coaxial adapter | 8 to 12.4 | 1.20 | WR90 | FBP100 | N(f) |
| 71135B | Waveguide-to-coaxial adapter | 8 to 12.4 | 1.20 | WR90 | FBP100 | N(m) |
| 71136 | Waveguide-to-coaxial adapter | 10 to 15 | 1.20 | WR75 | FBP120 | APC-7 |
| 71136A | Waveguide-to-coaxial adapter | 10 to 15 | 1.20 | WR75 | FBP120 | N(f) |
| 71136B | Waveguide-to-coaxial adapter | 10 to 15 | 1.20 | WR75 | FBP120 | N(m) |
| 71137 | Waveguide-to-coaxial adapter | 12 to 18 | 1.20 | WR62 | FBP140 | APC-7 |
| 71137A | Waveguide-to-coaxial adapter | 12 to 18 | 1.20 | WR62 | FBP140 | N(f) |
| 71137B | Waveguide-to-coaxial adapter | 12 to 18 | 1.20 | WR62 | FBP140 | N(m) |
| 71138 | Waveguide-to-coaxial adapter | 18 to 26.5 | 1.20 | WR42 | FBP220 | 3.5mm(f) |
| 71138A | Waveguide-to-coaxial adapter | 18 to 26.5 | 1.20 | WR42 | FBP220 | 3.5mm(m) |
| 81102 | Waveguide-to-coaxial adapter | 26.5 to 40 | 1.20 | WR28 | FBP320 | 2.4mm(m) |
| 83904 | Waveguide-to-coaxial adapter | 33 to 50 | 1.30 | WR22 | UG-383/U | 2.4mm(f) |
| 83903 | Waveguide-to-coaxial adapter | 40 to 60 | 1.30 | WR19 | UG-383/U | 1.85mm(f) |
| 83901 | Waveguide-to-coaxial adapter | 2.5 to 7.5 | 1.30 | WRD250 | FLG250-1-C | N(f) |
| 83902 | Waveguide-to-coaxial adapter | 7.5 to 18 | 1.30 | WRD750 | FLG750-1-C | N(f) |
| 83905 | Waveguide-to-coaxial adapter | 22 to 33 | 1.30 | WR34 | FBP260 | 2.92mm(f) |
| 83906 | Waveguide-to-coaxial adapter | 26.5 to 40 | 1.30 | WR28 | FBP320 | 2.92mm(f) |
| 83906A | Waveguide-to-coaxial adapter | 26.5 to 40 | 1.30 | WR28 | FBP320 | 2.4mm(f) |
| 83906B | Waveguide-to-coaxial adapter | 33 to 50 | 1.30 | WR22 | UG-383/U | 2.4mm(f) |
| 83906C | Waveguide-to-coaxial adapter | 40 to 60 | 1.30 | WR19 | UG-383/U | 1.85mm(f) |
| 83906LB | Waveguide-to-coaxial adapter | 50 to 67 | 1.30 | WR15 | UG-385/U | 1.85mm(f) |
| 83906NE | Waveguide-to-coaxial adapter | 50 to 75 | 1.38 | WR15 | UG-385/U | 1.0mm(f) |
| 83906ND | Waveguide-to-coaxial adapter | 50 to 75 | 1.38 | WR15 | UG-385/U | 1.0mm(m) |
| 83906PE | Waveguide-to-coaxial adapter | 75 to 110 | 1.38 | WR10 | UG-387/U | 1.0mm(f) |
| 83906PD | Waveguide-to-coaxial adapter | 75 to 110 | 1.38 | WR10 | UG-387/U | 1.0mm(m) |
| 83906NF | Waveguide-to-coaxial adapter | 60 to 90 | 1.38 | WR12 | UG-387/U | 1.0mm(f) |
Coaxial loads
Coaxial load selection
| Model | Product | Impedance(Ω) | Frequency range(GHz) | VSWR(Max) | Power handling(W) | Interface |
|---|---|---|---|---|---|---|
| 70501 | Coaxial load | 50 | DC to 18 | 1.055 | 1 | N(f) |
| 70502 | Coaxial load | 50 | DC to 18 | 1.055 | 1 | N(m) |
| 70505 | Coaxial load | 50 | DC to 26.5 | 1.041 | 1 | 3.5mm(f) |
| 70506 | Coaxial load | 50 | DC to 26.5 | 1.041 | 1 | 3.5mm(m) |
| 70507 | Coaxial load | 50 | DC to 18 | 1.04 | 1 | 7mm |
| 70508 | Coaxial load | 50 | DC to 40 | 1.12 | 0.5 | 2.4mm(f) |
| 70509 | Coaxial load | 50 | DC to 40 | 1.12 | 0.5 | 2.4mm(m) |
| 80501H | Coaxial load | 50 | DC to 50 | 1.106 | 0.5 | 2.4mm(m) |
| 80502H | Coaxial load | 50 | DC to 50 | 1.106 | 0.5 | 2.4mm(f) |
| 80501 | Coaxial load | 50 | DC to 67 | 1.15 | 0.5 | 1.85mm(m) |
| 80502 | Coaxial load | 50 | DC to 67 | 1.15 | 0.5 | 1.85mm(f) |
| 80504 | Coaxial load | 50 | DC to 40 | 1.17 | 0.5 | 2.92mm(m) |
| 80505 | Coaxial load | 50 | DC to 40 | 1.17 | 0.5 | 2.92mm(f) |
Directional bridge couplers
Nominal coupling is measured at 10 MHz. Directivity is defined with port A short-circuit normalization followed by a matched load, equivalent to isolation minus coupling, insertion loss and port-A reflection ripple. Rated powers are average/peak; peak power must not be treated as continuous power.
Unidirectional and bidirectional bridge selection
| Model | Product | Frequency range(GHz) | Nominal coupling(dB) | Coupling frequency response(dB Max) | Directivity(dB Min) | Return loss(dB Min) | Through insertion loss(dB Max) | Rated power (average/peak) | Interface |
|---|---|---|---|---|---|---|---|---|---|
| 80622B | Directional bridge coupler | 0.01 to 6.0 | 16.0±1.0 | 1.0 | 30.0 | 22.0 | 2.0 | 1W/10W | 3.5mm(f) |
| 80622BA | Directional bridge coupler | 0.0001 to 9.0 | 16.0±1.0 | 1.4 | 28.0 | 22.0 | 2.4 | 1W/10W | 3.5mm(f) |
| 80622DA | Directional bridge coupler | 0.0001 to 20.0 | 16.0±1.0 | 1.6 | 24.0 | 20.0 | 2.8 | 1W/10W | 3.5mm(f) |
| 80622EA | Directional bridge coupler | 0.0001 to 26.5 | 16.0±1.0 | 1.8 | 22.0 | 18.0 | 3.0 | 1W/10W | 3.5mm(f) |
| 80622FA | Directional bridge coupler | 0.0001 to 40.0 | 16.0±1.0 | 2.5 | 20.0 | 16.0 | 3.2 | 1W/10W | 2.4mm(f) |
| 80622HA | Directional bridge coupler | 0.0001 to 50.0 | 16.0±1.0 | 3.2 | 18.0 | 16.0 | 3.6 | 1W/10W | 2.4mm(f) |
| 80625BA | Bidirectional bridge coupler | 0.0001 to 9.0 | 16.0±1.0 | 1.4 | 28.0 | 22.0 | 4.0 | 1W/10W | 3.5mm(f) |
| 80625DA | Bidirectional bridge coupler | 0.0001 to 20.0 | 16.0±1.0 | 1.6 | 24.0 | 20.0 | 4.8 | 1W/10W | 3.5mm(f) |
| 80625EA | Bidirectional bridge coupler | 0.0001 to 26.5 | 16.0±1.0 | 1.8 | 22.0 | 18.0 | 5.0 | 1W/10W | 3.5mm(f) |
| 80625GA | Bidirectional bridge coupler | 0.0001 to 43.5 | 16.0±1.0 | 2.5 | 20.0 | 16.0 | 6.0 | 1W/10W | 2.4mm(f) |
| 80625HA | Bidirectional bridge coupler | 0.0001 to 50.0 | 16.0±1.0 | 3.2 | 18.0 | 16.0 | 7.0 | 1W/10W | 2.4mm(f) |
Attenuators
Fixed, manual and polarization attenuators are listed separately. The 83503 series requires a 3710B controller; one controller operates one attenuator. Supply configuration is confirmed in the order.
Fixed attenuators
| Model | Product | Attenuation(dB) | Attenuation accuracy(dB) | Frequency range(GHz) | VSWR(Max) | Power handling(W) | Interface |
|---|---|---|---|---|---|---|---|
| 81530PA | Fixed attenuator | 1 | -0.5/+1.5 | DC to 110 | 1.7 | 0.5 | 1.0mm |
| 81530PB | Fixed attenuator | 2 | -0.5/+1.5 | DC to 110 | 1.7 | 0.5 | 1.0mm |
| 81530PC | Fixed attenuator | 3 | ±1.5 | DC to 110 | 1.7 | 0.5 | 1.0mm |
| 81530PF | Fixed attenuator | 6 | ±2.0 | DC to 110 | 1.7 | 0.5 | 1.0mm |
| 81530PL | Fixed attenuator | 10 | ±3.0 | DC to 110 | 1.7 | 0.5 | 1.0mm |
| 81530PN | Fixed attenuator | 20 | ±3.0 | DC to 110 | 1.7 | 0.5 | 1.0mm |
| 81530LA | Fixed attenuator | 1 | -0.5/+1.5 | DC to 67 | 1.5 | 1 | 1.85mm |
| 81530LB | Fixed attenuator | 2 | ±1.0 | DC to 67 | 1.5 | 1 | 1.85mm |
| 81530LC | Fixed attenuator | 3 | ±1.0 | DC to 67 | 1.5 | 1 | 1.85mm |
| 81530LD | Fixed attenuator | 4 | ±1.0 | DC to 67 | 1.5 | 1 | 1.85mm |
| 81530LE | Fixed attenuator | 5 | ±1.5 | DC to 67 | 1.5 | 1 | 1.85mm |
| 81530LF | Fixed attenuator | 6 | ±2.0 | DC to 67 | 1.5 | 1 | 1.85mm |
| 81530LG | Fixed attenuator | 7 | ±2.0 | DC to 67 | 1.5 | 1 | 1.85mm |
| 81530LH | Fixed attenuator | 8 | ±2.0 | DC to 67 | 1.5 | 1 | 1.85mm |
| 81530LK | Fixed attenuator | 9 | ±2.0 | DC to 67 | 1.5 | 1 | 1.85mm |
| 81530LL | Fixed attenuator | 10 | ±2.0 | DC to 67 | 1.5 | 1 | 1.85mm |
| 81530LZ | Fixed attenuator | 12 | ±2.0 | DC to 67 | 1.5 | 1 | 1.85mm |
| 81530LN | Fixed attenuator | 20 | ±2.0 | DC to 67 | 1.5 | 1 | 1.85mm |
| 81530LQ | Fixed attenuator | 30 | ±2.0 | DC to 67 | 1.5 | 1 | 1.85mm |
| 81530HA | Fixed attenuator | 1 | ±1 | DC to 50 | 1.4 | 1 | 2.4mm |
| 81530HB | Fixed attenuator | 2 | ±1 | DC to 50 | 1.4 | 1 | 2.4mm |
| 81530HC | Fixed attenuator | 3 | ±1.5 | DC to 50 | 1.4 | 1 | 2.4mm |
| 81530HF | Fixed attenuator | 6 | ±2.0 | DC to 50 | 1.4 | 1 | 2.4mm |
| 81530HL | Fixed attenuator | 10 | ±2.0 | DC to 50 | 1.4 | 1 | 2.4mm |
| 81530HN | Fixed attenuator | 20 | ±2.0 | DC to 50 | 1.4 | 1 | 2.4mm |
| 81531FC | Fixed attenuator | 3 | ±1.5 | DC to 40 | 1.4 | 1 | 2.4mm |
| 81531FF | Fixed attenuator | 6 | ±1.5 | DC to 40 | 1.4 | 1 | 2.4mm |
| 81531FL | Fixed attenuator | 10 | ±1.5 | DC to 40 | 1.4 | 1 | 2.4mm |
| 81531FN | Fixed attenuator | 20 | ±1.5 | DC to 40 | 1.4 | 1 | 2.4mm |
| 81531FQ | Fixed attenuator | 30 | ±1.5 | DC to 40 | 1.4 | 1 | 2.4mm |
| 81530FA | Fixed attenuator | 1 | ±1 | DC to 40 | 1.35 | 1 | 2.92mm |
| 81530FB | Fixed attenuator | 2 | ±1 | DC to 40 | 1.35 | 1 | 2.92mm |
| 81530FC | Fixed attenuator | 3 | ±1.2 | DC to 40 | 1.35 | 1 | 2.92mm |
| 81530FD | Fixed attenuator | 6 | ±1.5 | DC to 40 | 1.4 | 1 | 2.92mm |
| 81530FL | Fixed attenuator | 10 | ±1.5 | DC to 40 | 1.4 | 1 | 2.92mm |
| 81530FN | Fixed attenuator | 20 | ±1.5 | DC to 40 | 1.4 | 1 | 2.92mm |
| 81530FQ | Fixed attenuator | 30 | ±2.0 | DC to 40 | 1.4 | 1 | 2.92mm |
| 81530FS | Fixed attenuator | 40 | ±2.0 | DC to 40 | 1.4 | 1 | 2.92mm |
| 81530EA | Fixed attenuator | 1 | ±0.5 | DC to 26.5 | 1.25 | 2 | 3.5mm |
| 81530EB | Fixed attenuator | 2 | ±1.0 | DC to 26.5 | 1.25 | 2 | 3.5mm |
| 81530EC | Fixed attenuator | 3 | ±1.4 | DC to 26.5 | 1.4 | 2 | 3.5mm |
| 81530EE | Fixed attenuator | 5 | ±1.4 | DC to 26.5 | 1.4 | 2 | 3.5mm |
| 81530EF | Fixed attenuator | 6 | ±1.4 | DC to 26.5 | 1.4 | 2 | 3.5mm |
| 81530EL | Fixed attenuator | 10 | ±1.4 | DC to 26.5 | 1.4 | 2 | 3.5mm |
| 81530EN | Fixed attenuator | 20 | ±1.4 | DC to 26.5 | 1.4 | 2 | 3.5mm |
| 81530EQ | Fixed attenuator | 30 | ±1.4 | DC to 26.5 | 1.4 | 2 | 3.5mm |
| 81530ES | Fixed attenuator | 40 | ±1.6 | DC to 26.5 | 1.4 | 2 | 3.5mm |
| 81503DE | Fixed attenuator | 5 | ±1 | DC to 18 | 1.5 | 2 | N |
| 81530DL | Fixed attenuator | 10 | ±0.8 | DC to 18 | 1.5 | 2 | N |
| 81530DN | Fixed attenuator | 20 | ±1.0 | DC to 18 | 1.5 | 2 | N |
| 81530DQ | Fixed attenuator | 30 | ±1.0 | DC to 18 | 1.5 | 2 | N |
| 81530DS | Fixed attenuator | 40 | ±1.5 | DC to 18 | 1.5 | 2 | N |
| 83502NC | Fixed waveguide attenuator | 3 | ±2.0 | 60 to 90 | 1.12 | 0.5 | WR12 |
| 83502NE | Fixed waveguide attenuator | 5 | ±2.0 | 60 to 90 | 1.12 | 0.5 | WR12 |
| 83502NL | Fixed waveguide attenuator | 10 | ±3.0 | 60 to 90 | 1.12 | 0.5 | WR12 |
| 83502NN | Fixed waveguide attenuator | 20 | ±4.0 | 60 to 90 | 1.12 | 0.5 | WR12 |
| 83502NQ | Fixed waveguide attenuator | 30 | ±5.0 | 60 to 90 | 1.12 | 0.5 | WR12 |
Manual attenuators
| Parameter | 81524D | 81525D |
|---|---|---|
| Frequency range | DC to 18 GHz | DC to 18 GHz |
| Attenuation range / step | 0 to 110 dB / 10 dBstep | 0 to 11 dB / 1 dBstep |
| Through insertion loss(dB Max) | 2.5 | 2.5 |
| VSWR(Max) | 1.9 | 1.9 |
| Maximum power handling | 1 W(CW) | 1 W(CW) |
| Attenuation accuracy | ±5.0 dB | ±0.9 dB |
| Interface | N(f) | N(f) |
Polarization attenuators
| Model | Frequency range(GHz) | Waveguide | VSWR(Max) | Insertion loss(dB Max) | Resolution(dB) | Attenuation range(dB) | Attenuation accuracy(dB) |
|---|---|---|---|---|---|---|---|
| 83503H | 33 to 50 | WR22 | 1.2 | 0.8 | 0.1 | 0 to 60 | 0.1/2.0%(0 to 50)3.0%(50 to 60) |
| 83503K | 40 to 60 | WR19 | 1.2 | 0.8 | 0.1 | 0 to 60 | 0.1/2.0%(0 to 50)3.0%(50 to 60) |
| 83503NA | 50 to 75 | WR15 | 1.2 | 0.8 | 0.1 | 0 to 60 | 0.1/2.0%(0 to 50)3.0%(50 to 60) |
| 83503N | 60 to 90 | WR12 | 1.2 | 1.0 | 0.1 | 0 to 60 | 0.1/2.5%(0 to 50)3.5%(50 to 60) |
| 83503P | 75 to 110 | WR10 | 1.2 | 1.0 | 0.1 | 0 to 60 | 0.1/2.5%(0 to 50)3.5%(50 to 60) |
Companion controller
| Model | Function | Control interface | Power consumption |
|---|---|---|---|
| 3710B | Controls 83503-series polarization attenuators | LAN | ≤100 W |
Microwave coaxial switches
Select by port count, termination, relay structure, control method and interface. Power limits are CW limits for the specified frequency bands. Switching time and drive current are specified at room temperature. Lifetime is in units of ten thousand cycles. Check drive voltage and supply polarity before connection.
SPDT: unterminated, latching, TTL
| Parameter | 80117D series | 80117E series | 80117F series | 80117H series | 80117L series |
|---|---|---|---|---|---|
| Frequency range(GHz) | DC to 18 | DC to 26.5 | DC to 40 | DC to 50 | DC to 67 |
| VSWR(Max) | 1.15(DC to 4GHz) 1.30(4GHz to 12.4GHz) 1.50(12.4GHz to 18GHz) | 1.15(DC to 4GHz) 1.30(4GHz to 12.4GHz) 1.50(12.4GHz to 26.5GHz) | 1.30(DC to 10GHz) 1.50(10GHz to 20GHz) 1.80(20GHz to 40GHz) | 1.25(DC to 10GHz) 1.50(10GHz to 20GHz) 1.80(20GHz to 50GHz) | 1.25(DC to 10GHz) 1.50(10GHz to 20GHz) 1.90(20GHz to 67GHz) |
| Insertion loss(dB Max) | 0.20(DC to 4GHz) 0.30(4GHz to 12.4GHz) 0.60(12.4GHz to 18GHz) | 0.20(DC to 4GHz) 0.30(4GHz to 12.4GHz) 0.60(12.4GHz to 26.5GHz) | 0.40(DC to 10GHz) 0.60(10GHz to 20GHz) 0.80(20GHz to 40GHz) | 0.60(DC to 10GHz) 0.80(10GHz to 20GHz) 1.00(20GHz to 50GHz) | 0.60(DC to 10GHz) 0.80(10GHz to 20GHz) 1.50(20GHz to 67GHz) |
| Isolation(dB Min) | 70(DC to 18GHz) | 70(DC to 26.5GHz) | 80(DC to 10GHz) 70(10GHz to 20GHz) 70(20GHz to 40GHz) | 85(DC to 10GHz) 77(10GHz to 20GHz) 70(20GHz to 50GHz) | 85(DC to 10GHz) 77(10GHz to 20GHz) 70(20GHz to 67GHz) |
| Power handling (CW, W Max) | 50(DC to 4GHz) 40(4GHz to 12.4GHz) 30(12.4GHz to 18GHz) | 50(DC to 4GHz) 40(4GHz to 12.4GHz) 20(12.4GHz to 26.5GHz) | 20(DC to 10GHz) 5(10GHz to 20GHz) 2(20GHz to 40GHz) | 20(DC to 10GHz) 5(10GHz to 20GHz) 2(20GHz to 50GHz) | 15(DC to 10GHz) 5(10GHz to 20GHz) 1(20GHz to 67GHz) |
| Switching time(ms Max) | 15, room temperature | 15, room temperature | 15, room temperature | 15, room temperature | 15, room temperature |
| Repeatability(dB Max) | 0.03 | 0.03 | 0.03 | 0.05 | 0.10 |
| Lifetime (ten-thousand cycles, Min) | 300 | 300 | 300 | 200 | 200 |
| Connector | SMA(f) | SMA(f) | 2.92mm(f) | 2.4mm(f) | 1.85mm(f) |
| Termination | Unterminated | Unterminated | Unterminated | Unterminated | Unterminated |
| DC drive voltage(V) | Options: +22 to +28(nominal +24V)/+10 to 15(nominal 12V)/+4.8 to +6(nominal +5V) | Options: +22 to +28(nominal +24V)/+10 to 15(nominal 12V)/+4.8 to +6(nominal +5V) | Options: +22 to +28(nominal +24V)/+10 to 15(nominal 12V)/+4.8 to +6(nominal +5V) | Options: +22 to +28(nominal +24V)/+10 to 15(nominal 12V)/+4.8 to +6(nominal +5V) | Options: +22 to +28(nominal +24V)/+10 to 15(nominal 12V)/+4.8 to +6(nominal +5V) |
| DC drive current(mA, ±10%) | 120(+24V, room temperature)/210(+12V, room temperature)/430(+5V, room temperature) | 120(+24V, room temperature)/210(+12V, room temperature)/430(+5V, room temperature) | 120(+24V, room temperature)/210(+12V, room temperature)/430(+5V, room temperature) | 120(+24V, room temperature)/210(+12V, room temperature)/430(+5V, room temperature) | 120(+24V, room temperature)/210(+12V, room temperature)/430(+5V, room temperature) |
| Control method | TTL high / TTL low | TTL high / TTL low | TTL high / TTL low | TTL high / TTL low | TTL high / TTL low |
| Relay structure | Latching | Latching | Latching | Latching | Latching |
SPDT: terminated, latching, TTL
| Parameter | 80113D series | 80113E series | 80113F series | 80113H series |
|---|---|---|---|---|
| Frequency range(GHz) | DC to 18 | DC to 26.5 | DC to 40 | DC to 50 |
| VSWR(Max) | 1.15(DC to 4GHz) 1.30(4GHz to 12.4GHz) 1.50(12.4GHz to 18GHz) | 1.15(DC to 4GHz) 1.30(4GHz to 12.4GHz) 1.50(12.4GHz to 26.5GHz) | 1.30(DC to 10GHz) 1.50(10GHz to 20GHz) 1.80(20GHz to 40GHz) | 1.25(DC to 10GHz) 1.50(10GHz to 20GHz) 1.80(20GHz to 50GHz) |
| Insertion loss(dB Max) | 0.20(DC to 4GHz) 0.30(4GHz to 12.4GHz) 0.60(12.4GHz to 18GHz) | 0.20(DC to 4GHz) 0.30(4GHz to 12.4GHz) 0.60(12.4GHz to 26.5GHz) | 0.40(DC to 10GHz) 0.60(10GHz to 20GHz) 0.80(20GHz to 40GHz) | 0.60(DC to 10GHz) 0.80(10GHz to 20GHz) 1.00(20GHz to 50GHz) |
| Isolation(dB Min) | 70(DC to 18GHz) | 70(DC to 26.5GHz) | 80(DC to 10GHz) 70(10GHz to 20GHz) 70(20GHz to 40GHz) | 85(DC to 10GHz) 77(10GHz to 20GHz) 70(20GHz to 50GHz) |
| Power handling (CW, W Max) | 50(DC to 4GHz) 40(4GHz to 12.4GHz) 30(12.4GHz to 18GHz) | 50(DC to 4GHz) 40(4GHz to 12.4GHz) 20(12.4GHz to 26.5GHz) | 20(DC to 10GHz) 5(10GHz to 20GHz) 2(20GHz to 40GHz) | 20(DC to 10GHz) 5(10GHz to 20GHz) 2(20GHz to 50GHz) |
| Switching time(ms Max) | 15, room temperature | 15, room temperature | 15, room temperature | 15, room temperature |
| Repeatability(dB Max) | 0.03 | 0.03 | 0.03 | 0.05 |
| Lifetime (ten-thousand cycles, Min) | 300 | 300 | 300 | 200 |
| Connector | SMA(f) | SMA(f) | 2.92mm(f) | 2.4mm(f) |
| Termination | Terminated | Terminated | Terminated | Terminated |
| DC drive voltage(V) | Options: +22 to +28(nominal +24V)/+10 to 15(nominal 12V)/+4.8 to +6(nominal +5V) | Options: +22 to +28(nominal +24V)/+10 to 15(nominal 12V)/+4.8 to +6(nominal +5V) | Options: +22 to +28(nominal +24V)/+10 to 15(nominal 12V)/+4.8 to +6(nominal +5V) | Options: +22 to +28(nominal +24V)/+10 to 15(nominal 12V)/+4.8 to +6(nominal +5V) |
| DC drive current(mA, ±10%) | 240(+24V, room temperature)/420(+12V, room temperature)/860(+5V, room temperature) | 240(+24V, room temperature)/420(+12V, room temperature)/860(+5V, room temperature) | 240(+24V, room temperature)/420(+12V, room temperature)/860(+5V, room temperature) | 240(+24V, room temperature)/420(+12V, room temperature)/860(+5V, room temperature) |
| Control method | TTL high / TTL low | TTL high / TTL low | TTL high / TTL low | TTL high / TTL low |
| Relay structure | Latching | Latching | Latching | Latching |
SPDT: 67/90/110 GHz configurations
| Parameter | 80113L series | 80113N series | 80113P series |
|---|---|---|---|
| Frequency range(GHz) | DC to 67 | DC to 90 | DC to 110 |
| VSWR(Max) | 1.25(DC to 10GHz) 1.50(10GHz to 20GHz) 1.90(20GHz to 67GHz) | 1.60(DC to 20GHz) 1.80(20GHz to 50GHz) 1.90(50GHz to 67GHz) 2.00(67GHz to 90GHz) | 1.50(DC to 20GHz) 1.80(20GHz to 50GHz) 1.90(50GHz to 67GHz) 2.20(67GHz to 110GHz) |
| Insertion loss(dB Max) | 0.60(DC to 10GHz) 0.80(10GHz to 20GHz) 1.50(20GHz to 67GHz) | 0.80(DC to 20GHz) 1.40(20GHz to 50GHz) 1.80(50GHz to 67GHz) 2.20(67GHz to 90GHz) | 0.80(DC to 20GHz) 1.40(20GHz to 50GHz) 1.80(50GHz to 67GHz) 2.50(67GHz to 110GHz) |
| Isolation(dB Min) | 85(DC to 10GHz) 77(10GHz to 20GHz) 70(20GHz to 67GHz) | 70(DC to 20GHz) 65(20GHz to 50GHz) 60(50GHz to 67GHz) 60(67GHz to 90GHz) | 70(DC to 20GHz) 65(20GHz to 50GHz) 60(50GHz to 67GHz) 50(67GHz to 110GHz) |
| Power handling (CW, W Max) | 15(DC to 10GHz) 5(10GHz to 20GHz) 1(20GHz to 67GHz) | — | — |
| Switching time(ms Max) | 15, room temperature | 15, room temperature | 15, room temperature |
| Repeatability(dB Max) | 0.10 | 0.28 | 0.28 |
| Lifetime (ten-thousand cycles, Min) | 200 | 100 | 100 |
| Connector | 1.85mm(f) | 1.0mm(f) | 1.0mm(f) |
| Termination | Terminated | Terminated | Terminated |
| DC drive voltage(V) | Options: +22 to +28(nominal +24V)/+10 to 15(nominal 12V)/+4.8 to +6(nominal +5V) | Options: +22 to +28(nominal +24V)/+10 to 15(nominal 12V)/+4.8 to +6(nominal +5V) | Options: +22 to +28(nominal +24V)/+10 to 15(nominal 12V)/+4.8 to +6(nominal +5V) |
| DC drive current(mA, ±10%) | 240(+24V, room temperature)/420(+12V, room temperature)/860(+5V, room temperature) | 240(+24V, room temperature)/420(+12V, room temperature)/860(+5V, room temperature) | 240(+24V, room temperature)/420(+12V, room temperature)/860(+5V, room temperature) |
| Control method | TTL high / TTL low | TTL high / TTL low | TTL high / TTL low |
| Relay structure | Latching | Latching | Latching |
Bypass: terminated, latching, TTL
| Parameter | 80110A | 80110DA | 80114EA |
|---|---|---|---|
| Frequency range(GHz) | DC to 26.5 | DC to 50 | DC to 67 |
| VSWR(Max) | 1.20(DC to 4GHz) 1.30(4GHz to 12.4GHz) 1.50(12.4GHz to 26.5GHz) | 1.25(DC to 10GHz) 1.50(10GHz to 20GHz) 1.80(20GHz to 50GHz) | 1.25(DC to 10GHz) 1.50(10GHz to 20GHz) 1.90(20GHz to 67GHz) |
| Insertion loss(dB Max) | 0.20(DC to 4GHz) 0.30(4GHz to 12.4GHz) 0.60(12.4GHz to 26.5GHz) | 0.60(DC to 10GHz) 0.80(10GHz to 20GHz) 1.00(20GHz to 50GHz) | 0.60(DC to 10GHz) 0.80(10GHz to 20GHz) 1.50(20GHz to 67GHz) |
| Isolation(dB Min) | 60(DC to 26.5GHz) | 85(DC to 10GHz) 77(10GHz to 20GHz) 70(20GHz to 50GHz) | 85(DC to 10GHz) 77(10GHz to 20GHz) 70(20GHz to 67GHz) |
| Power handling (CW, W Max) | 40 (DC to 12.4GHz) 20(12.4GHz to 26.5GHz) | 20(DC to 10GHz) 5(10GHz to 20GHz) 2(20GHz to 50GHz) | 15(DC to 10GHz) 5(10GHz to 20GHz) 1(20GHz to 67GHz) |
| Switching time(ms Max) | 15, room temperature | 15, room temperature | 15, room temperature |
| Repeatability(dB Max) | 0.03 | 0.05 | 0.10 |
| Lifetime (ten-thousand cycles, Min) | 300 | 200 | 200 |
| Connector | SMA(f) | 2.4mm(f) | 1.85mm(f) |
| Termination | Terminated | Terminated | Terminated |
| DC drive voltage(V) | +4.8 to +6(nominal +5V) | +4.8 to +6(nominal +5V) | +4.8 to +6(nominal +5V) |
| DC drive current(mA, ±10%) | 860(+5V, room temperature) | 860(+5V, room temperature) | 860(+5V, room temperature) |
| Relay structure | Latching | Latching | Latching |
| Control method | TTL low | TTL low | TTL low |
DPDT: unterminated, latching, TTL
| Parameter | 80104D | 80104E | 80104F | 80104 | 80104L |
|---|---|---|---|---|---|
| Frequency range(GHz) | DC to 18 | DC to 26.5 | DC to 40 | DC to 50 | DC to 67 |
| VSWR(Max) | 1.20(DC to 3GHz) 1.30(3GHz to 6GHz) 1.40(6GHz to 12.4GHz) 1.50(12.4GHz to 18GHz) | 1.20(DC to 3GHz) 1.30(3GHz to 6GHz) 1.40(6GHz to 12.4GHz) 1.50(12.4GHz to 26.5GHz) | 1.20(DC to 4GHz) 1.50(4GHz to 20GHz) 1.80(20GHz to 40GHz) | 1.20(DC to 4GHz) 1.50(4GHz to 20GHz) 1.80(20GHz to 50GHz) | 1.30(DC to 4GHz) 1.60(4GHz to 20GHz) 1.90(20GHz to 67GHz) |
| Insertion loss(dB Max) | 0.25(DC to 3GHz) 0.40(3GHz to 6GHz) 0.50(6GHz to 12.4GHz) 0.70(12.4GHz to 18GHz) | 0.25(DC to 3GHz) 0.40(3GHz to 6GHz) 0.50(6GHz to 12.4GHz) 0.70(12.4GHz to 26.5GHz) | 0.30(DC to 4GHz) 1.00(4GHz to 20GHz) 1.20(20GHz to 40GHz) | 0.30(DC to 4GHz) 1.00(4GHz to 20GHz) 1.20(20GHz to 40GHz) 1.50(40GHz to 50GHz) | 0.40(DC to 4GHz) 1.00(4GHz to 20GHz) 1.50(20GHz to 67GHz) |
| Isolation(dB Min) | 80(DC to 3GHz) 70(3GHz to 6GHz) 60(6GHz to 12.4GHz) 55(12.4GHz to 18GHz) | 80(DC to 3GHz) 70(3GHz to 6GHz) 60(6GHz to 12.4GHz) 55(12.4GHz to 26.5GHz) | 80(DC to 4GHz) 70(4GHz to 20GHz) 60(20GHz to 40GHz) | 50(DC to 50GHz) | 50(DC to 67GHz) |
| Power handling (CW, W Max) | 60(DC to 3GHz) 50(3GHz to 6GHz) 40(6GHz to 12.4GHz) 30(12.4GHz to 18GHz) | 60(DC to 3GHz) 50(3GHz to 6GHz) 40(6GHz to 12.4GHz) 20(12.4GHz to 26.5GHz) | 20(DC to 4GHz) 5(4GHz to 20GHz) 2(20GHz to 40GHz) | 20(DC to 4GHz) 5(4GHz to 20GHz) 2(20GHz to 50GHz) | 15(DC to 4GHz) 5(4GHz to 20GHz) 1(20GHz to 67GHz) |
| Switching time(ms Max) | 15, room temperature | 15, room temperature | 15, room temperature | 15, room temperature | 15, room temperature |
| Repeatability(dB Max) | 0.03 | 0.03 | 0.03 | 0.05 | 0.10 |
| Lifetime (ten-thousand cycles, Min) | 200 | 200 | 200 | 100 | 100 |
| Connector | SMA (f) | SMA (f) | 2.92mm (f) | 2.4mm(f) | 1.85mm(f) |
| Termination | Unterminated | Unterminated | Unterminated | Unterminated | Unterminated |
| DC drive voltage(V) | +20 to +28(nominal +24V) | +20 to +28(nominal +24V) | +20 to +28(nominal +24V) | +20 to +28(nominal +24V) | +20 to +28(nominal +24V) |
| DC drive current(mA, ±10%) | 200(+24V, room temperature) | 200(+24V, room temperature) | 200(+24V, room temperature) | 200(+24V, room temperature) | 200(+24V, room temperature) |
| Control method | TTL high / TTL low | TTL high / TTL low | TTL high / TTL low | TTL high / TTL low | TTL high / TTL low |
| Relay structure | Latching | Latching | Latching | Latching | Latching |
SP4T: 18/26.5/40 GHz configurations
| Parameter | 80119D | 80119E | 80119F |
|---|---|---|---|
| Frequency range(GHz) | DC to 18 | DC to 26.5 | DC to 40 |
| VSWR(Max) | 1.10(DC to 4GHz) 1.20(4GHz to 12.4GHz) 1.50(12.4GHz to 18GHz) | 1.20(DC to 4GHz) 1.35(4GHz to 12.4GHz) 1.70(12.4GHz to 26.5GHz) | 1.20(DC to 4GHz) 1.70(4GHz to 26.5GHz) 1.90(26.5GHz to 40GHz) |
| Insertion loss(dB Max) | 0.20(DC to 4GHz) 0.40(4GHz to 12.4GHz) 0.50(12.4GHz to 18GHz) | 0.20(DC to 4GHz) 0.50(4GHz to 12.4GHz) 0.70(12.4GHz to 26.5GHz) | 0.20(DC to 4GHz) 0.80(4GHz to 26.5GHz) 1.20(26.5GHz to 40GHz) |
| Isolation(dB Min) | 80(DC to 4GHz) 70(4GHz to 12.4GHz) 60(12.4GHz to 18GHz) | 80(DC to 4GHz) 70 (4GHz to 12.4GHz) 60(12.4GHz to 26.5GHz) | 80(DC to 4GHz) 70(4GHz to 26.5GHz) 60(26.5GHz to 40GHz) |
| Power handling (CW, W Max) | 50(DC to 4GHz) 40(4GHz to 12.4GHz) 30(12.4GHz to 18GHz) | 50(DC to 4GHz) 40(4GHz to 12.4GHz) 20(12.4GHz to 26.5GHz) | 20(DC to 4GHz) 5(4GHz to 26.5GHz) 2(26.5GHz to 40GHz) |
| Switching time(ms Max) | 15, room temperature | 15, room temperature | 15, room temperature |
| Repeatability(dB Max) | 0.03 | 0.03 | 0.03 |
| Lifetime (ten-thousand cycles, Min) | 200 | 200 | 200 |
| Connector | SMA(f) | SMA(f) | 2.92mm(f) |
| Termination | Terminated | Terminated | Terminated |
| DC drive voltage(V) | +20 to +28(nominal +24V) | +20 to +28(nominal +24V) | +20 to +28(nominal +24V) |
| DC drive current(mA, ±10%) | 240(+24V, room temperature) | 240(+24V, room temperature) | 240(+24V, room temperature) |
| Relay structure | Latching | Latching | Latching |
| Control method | TTL high | TTL high | TTL high |
SP4T: 50/54/67 GHz configurations
| Parameter | 80119H | 80119K | 80119L |
|---|---|---|---|
| Frequency range(GHz) | DC to 50 | DC to 54 | DC to 67 |
| VSWR(Max) | 1.30(DC to 4GHz) 1.70(4GHz to 26.5GHz) 1.90(26.5GHz to 50GHz) | 1.30(DC to 4GHz) 1.70(4GHz to 26.5GHz) 1.90(26.5GHz to 54GHz) | 1.30(DC to 10GHz) 1.60(10GHz to 20GHz) 2.00(20GHz to 67GHz) |
| Insertion loss(dB Max) | 0.20(DC to 4GHz) 0.80(4GHz to 26.5GHz) 1.20(26.5GHz to 50GHz) | 0.20(DC to 4GHz) 0.80(4GHz to 26.5GHz) 1.20(26.5GHz to 54GHz) | 0.40(DC to 10GHz) 0.80(10GHz to 20GHz) 1.80(20GHz to 67GHz) |
| Isolation(dB Min) | 80(DC to 4GHz) 70(4GHz to 26.5GHz) 60(26.5GHz to 50GHz) | 80(DC to 4GHz) 70(4GHz to 26.5GHz) 60(26.5GHz to 54GHz) | 80(DC to 10GHz) 70(10GHz to 20GHz) 60(20GHz to 67GHz) |
| Power handling (CW, W Max) | 20(DC to 4GHz) 5(4GHz to 26.5GHz) 2(26.5GHz to 50GHz) | 20(DC to 4GHz) 5(4GHz to 26.5GHz) 2(26.5GHz to 54GHz) | 15(DC to 10GHz) 5(10GHz to 20GHz) 1(20GHz to 67GHz) |
| Switching time(ms Max) | 15, room temperature | 15, room temperature | 15, room temperature |
| Repeatability(dB Max) | 0.05 | 0.05 | 0.10 |
| Lifetime (ten-thousand cycles, Min) | 100 | 100 | 100 |
| Connector | 2.4mm(f) | 1.85mm(f) | 1.85mm(f) |
| Termination | Terminated | Terminated | Terminated |
| DC drive voltage(V) | +20 to +28(nominal +24V) | +20 to +28(nominal +24V) | +20 to +28(nominal +24V) |
| DC drive current(mA, ±10%) | 200(+24V, room temperature) | 200(+24V, room temperature) | 200(+24V, room temperature) |
| Relay structure | Latching | Latching | Latching |
| Control method | TTL high | TTL high | TTL high |
SP6T: 18/26.5/40 GHz configurations
| Parameter | 80103 | 80103B | 80103C |
|---|---|---|---|
| Frequency range(GHz) | DC to 18 | DC to 26.5 | DC to 40 |
| VSWR(Max) | 1.10(DC to 4GHz) 1.20(4GHz to 12.4GHz) 1.50(12.4GHz to 18GHz) | 1.20(DC to 4GHz) 1.35(4GHz to 12.4GHz) 1.70(12.4GHz to 26.5GHz) | 1.20(DC to 4GHz) 1.70(4GHz to 26.5GHz) 1.90(26.5GHz to 40GHz) |
| Insertion loss(dB Max) | 0.20(DC to 4GHz) 0.40(4GHz to 12.4GHz) 0.50(12.4GHz to 18GHz) | 0.20(DC to 4GHz) 0.50(4GHz to 12.4GHz) 0.70(12.4GHz to 26.5GHz) | 0.20(DC to 4GHz) 0.80(4GHz to 26.5GHz) 1.20(26.5GHz to 40GHz) |
| Isolation(dB Min) | 80(DC to 4GHz) 70(4GHz to 12.4GHz) 60(12.4GHz to 18GHz) | 80(DC to 4GHz) 70(4GHz to 12.4GHz) 60(12.4GHz to 26.5GHz) | 80(DC to 4GHz) 70(4GHz to 26.5GHz) 60(26.5GHz to 40GHz) |
| Power handling (CW, W Max) | 50(DC to 4GHz) 40(4GHz to 12.4GHz) 30(12.4GHz to 18GHz) | 50(DC to 4GHz) 40(4GHz to 12.4GHz) 20(12.4GHz to 26.5GHz) | 20(DC to 4GHz) 5(4GHz to 26.5GHz) 2(26.5GHz to 40GHz) |
| Switching time(ms Max) | 15, room temperature | 15, room temperature | 15, room temperature |
| Repeatability(dB Max) | 0.03 | 0.03 | 0.03 |
| Lifetime (ten-thousand cycles, Min) | 200 | 200 | 200 |
| Connector | SMA(f) | SMA(f) | 2.92mm(f) |
| Termination | Terminated | Terminated | Terminated |
| DC drive voltage(V) | +20 to +28(nominal +24V) | +20 to +28(nominal +24V) | +20 to +28(nominal +24V) |
| DC drive current(mA, ±10%) | 240(+24V, room temperature) | 240(+24V, room temperature) | 240(+24V, room temperature) |
| Relay structure | Latching | Latching | Latching |
| Control method | TTL high | TTL high | TTL high |
SP6T: 50/54/67 GHz configurations
| Parameter | 80103D | 80103K | 80103L |
|---|---|---|---|
| Frequency range(GHz) | DC to 50 | DC to 54 | DC to 67 |
| VSWR(Max) | 1.30(DC to 4GHz) 1.70(4GHz to 26.5GHz) 1.90(26.5GHz to 50GHz) | 1.30(DC to 4GHz) 1.70(4GHz to 26.5GHz) 1.90(26.5GHz to 54GHz) | 1.30(DC to 10GHz) 1.60(10GHz to 20GHz) 2.00(20GHz to 67GHz) |
| Insertion loss(dB Max) | 0.20(DC to 4GHz) 0.80(4GHz to 26.5GHz) 1.20(26.5GHz to 50GHz) | 0.20(DC to 4GHz) 0.80(4GHz to 26.5GHz) 1.20(26.5GHz to 54GHz) | 0.40(DC to 10GHz) 0.80(10GHz to 20GHz) 1.80(20GHz to 67GHz) |
| Isolation(dB Min) | 80(DC to 4GHz) 70(4GHz to 26.5GHz) 60(26.5GHz to 50GHz) | 80(DC to 4GHz) 70(4GHz to 26.5GHz) 60(26.5GHz to 54GHz) | 80(DC to 10GHz) 70(10GHz to 20GHz) 60(20GHz to 67GHz) |
| Power handling (CW, W Max) | 20(DC to 4GHz) 5(4GHz to 26.5GHz) 2(26.5GHz to 50GHz) | 20(DC to 4GHz) 5(4GHz to 26.5GHz) 2(26.5GHz to 54GHz) | 15(DC to 10GHz) 5(10GHz to 20GHz) 1(20GHz to 67GHz) |
| Switching time(ms Max) | 15, room temperature | 15, room temperature | 15, room temperature |
| Repeatability(dB Max) | 0.05 | 0.05 | 0.10 |
| Lifetime (ten-thousand cycles, Min) | 100 | 100 | 100 |
| Connector | 2.4mm(f) | 1.85mm(f) | 1.85mm(f) |
| Termination | Terminated | Terminated | Terminated |
| DC drive voltage(V) | +20 to +28(nominal +24V) | +20 to +28(nominal +24V) | +20 to +28(nominal +24V) |
| DC drive current(mA, ±10%) | 200(+24V, room temperature) | 200(+24V, room temperature) | 200(+24V, room temperature) |
| Relay structure | Latching | Latching | Latching |
| Control method | TTL high | TTL high | TTL high |
SP6T: miniature, unterminated, normally open
| Parameter | 80103ED | 80103FD |
|---|---|---|
| Frequency range(GHz) | DC to 26.5 | DC to 40 |
| VSWR(Max) | 1.20(DC to 3GHz) 1.50(3GHz to 18GHz) 1.60(18GHz to 26.5GHz) | 1.20(DC to 3GHz) 1.70(3GHz to 18GHz) 2.20(18GHz to 40GHz) |
| Insertion loss(dB Max) | 0.20(DC to 3GHz) 0.50(3GHz to 18GHz) 0.60(18GHz to 26.5GHz) | 0.20(DC to 3GHz) 0.70(3GHz to 18GHz) 1.10(18GHz to 40GHz) |
| Isolation(dB Min) | 80(DC to 3GHz) 60(3GHz to 18GHz) 55(18GHz to 26.5GHz) | 80(DC to 3GHz) 60(3GHz to 18GHz) 45(18GHz to 40GHz) |
| Power handling (CW, W Max) | 50(DC to 3GHz) 30(3GHz to 18GHz) 10(18GHz to 26.5GHz) | 20(DC to 3GHz) 10(3GHz to 18GHz) 2(18GHz to 40GHz) |
| Switching time(ms Max) | 15, room temperature | 15, room temperature |
| Repeatability(dB Max) | 0.03 | 0.03 |
| Lifetime (ten-thousand cycles, Min) | 200 | 200 |
| Connector | SMA(f) | 2.92mm(f) |
| Termination | Unterminated | Unterminated |
| DC drive voltage(V) | +10 to +16(nominal +12V) | +10 to +16(nominal +12V) |
| DC drive current(mA, ±10%) | 280(+12V, room temperature) | 320(+12V, room temperature) |
| Relay structure | Normally open | Normally open |
| Control method | TTL high | TTL high |
SP6T: latching, direct power drive
| Parameter | 80103DF | 80103FF | 80133DE | 80133FE |
|---|---|---|---|---|
| Frequency range(GHz) | DC to 18 | DC to 40 | DC to 18 | DC to 40 |
| VSWR(Max) | 1.30(DC to 6GHz) 1.40(6GHz to 12GHz) 1.50(12GHz to 18GHz) | 1.40(DC to 12GHz) 1.60(12GHz to 26.5GHz) 1.80(26.5GHz to 40GHz) | 1.30(DC to 6GHz) 1.40(6GHz to 12GHz) 1.50(12GHz to 18GHz) | 1.40(DC to 18GHz) 1.60(18GHz to 26.5GHz) 1.80(26.5GHz to 40GHz) |
| Insertion loss(dB Max) | 0.30(DC to 6GHz) 0.40(6GHz to 12GHz) 0.50(12GHz to 18GHz) | 0.40(DC to 12GHz) 0.60(12GHz to 26.5GHz) 0.80(26.5GHz to 40GHz) | 0.30(DC to 6GHz) 0.40(6GHz to 12GHz) 0.50(12GHz to 18GHz) | 0.40(DC to 18GHz) 0.60(18GHz to 26.5GHz) 0.80(26.5GHz to 40GHz) |
| Isolation(dB Min) | 70(DC to 6GHz) 60(6GHz to 12GHz) 60(12GHz to 18GHz) | 70(DC to 12GHz) 60(12GHz to 26.5GHz) 60(26.5GHz to 40GHz) | 70(DC to 6GHz) 60(8GHz to 12GHz) 60(12GHz to 18GHz) | 70(DC to 18GHz) 60(18GHz to 26.5GHz) 60(26.5GHz to 40GHz) |
| Power handling (CW, W Max) | 100(DC to 6GHz) 60(6GHz to 12GHz) 50(12GHz to 18GHz) | 25(DC to 12GHz) 15(12GHz to 26.5GHz) 5(26.5GHz to 40GHz) | 100(DC to 6GHz) 60(6GHz to 12GHz) 50(12GHz to 18GHz) | 25(DC to 18GHz) 15(18GHz to 26.5GHz) 5(26.5GHz to 40GHz) |
| Switching time(ms Max) | 15, room temperature | 15, room temperature | 15, room temperature | 15, room temperature |
| Repeatability(dB Max) | 0.05 | 0.05 | 0.05 | 0.05 |
| Lifetime (ten-thousand cycles, Min) | 200 | 200 | 200 | 200 |
| Connector | SMA(f) | 2.92mm(f) | SMA(f) | 2.92mm(f) |
| Termination | Unterminated | Unterminated | Terminated | Terminated |
| DC drive voltage(V) | +24 to +30(nominal +28V) | +24 to +30(nominal +28V) | +24 to +30(nominal +28V) | +24 to +30(nominal +28V) |
| DC drive current(mA, ±10%) | 156(+28V, room temperature) | 156(+28V, room temperature) | 156(+28V, room temperature) | 156(+28V, room temperature) |
| Control method | Direct power drive | Direct power drive | Direct power drive | Direct power drive |
| Relay structure | Latching | Latching | Latching | Latching |
SP8T: normally open, TTL
| Parameter | 80134DL | 80134EY | 80134FY | 80134HY |
|---|---|---|---|---|
| Frequency range(GHz) | DC to 18 | DC to 26.5 | DC to 40 | DC to 50 |
| VSWR(Max) | 1.20(DC to 6GHz) 1.40(6GHz to 12GHz) 1.60(12GHz to 18GHz) | 1.40(DC to 6GHz) 1.60(6GHz to 18GHz) 1.80(18GHz to 26.5GHz) | 1.40(DC to 18GHz) 1.60(18GHz to 26.5GHz) 1.80(26.5GHz to 40GHz) | 1.60(DC to 26.5GHz) 1.80(26.5GHz to 40GHz) 2.20(40GHz to 50GHz) |
| Insertion loss(dB Max) | 0.30(DC to 6GHz) 0.40(6GHz to 12GHz) 0.60(12GHz to 18GHz) | 0.40(DC to 6GHz) 0.60(6GHz to 18GHz) 0.80(18GHz to 26.5GHz) | 0.60(DC to 18GHz) 0.80(18GHz to 26.5GHz) 1.00(26.5GHz to 40GHz) | 0.80(DC to 26.5GHz) 1.40(26.5GHz to 40GHz) 1.80(40GHz to 50GHz) |
| Isolation(dB Min) | 70(DC to 6GHz) 60(6GHz to 12GHz) 60(12GHz to 18GHz) | 70(DC to 6GHz) 60(6GHz to 18GHz) 60(18GHz to 26.5GHz) | 70(DC to 18GHz) 60(18GHz to 26.5GHz) 60(26.5GHz to 40GHz) | 60(DC to 26.5GHz) 60(26.5GHz to 40GHz) 50(40GHz to 50GHz) |
| Power handling (CW, W Max) | 100(DC to 6GHz) 60(6GHz to 12GHz) 50(12GHz to 18GHz) | 100(DC to 6GHz) 50(6GHz to 18GHz) 20(18GHz to 26.5GHz) | 25(DC to 18GHz) 15(18GHz to 26.5GHz) 5(26.5GHz to 40GHz) | 10(DC to 26.5GHz) 5(26.5GHz to 40GHz) 2(40GHz to 50GHz) |
| Switching time(ms Max) | 15, room temperature | 15, room temperature | 15, room temperature | 15, room temperature |
| Repeatability(dB Max) | 0.03 | 0.03 | 0.03 | 0.05 |
| Lifetime (ten-thousand cycles, Min) | 200 | 200 | 200 | 100 |
| Connector | SMA(f) | SMA(f) | 2.92mm(f) | 2.4mm(f) |
| Termination | Terminated | Terminated | Unterminated | Unterminated |
| DC drive voltage(V) | +26 to +30(nominal +28V) | +26 to +30(nominal +28V) | +26 to +30(nominal +28V) | +26 to +30(nominal +28V) |
| DC drive current(mA, ±10%) | 108(+28V, room temperature) | 108(+28V, room temperature) | 108(+28V, room temperature) | 108(+28V, room temperature) |
| Control method | TTL high | TTL high | TTL high | TTL high |
| Relay structure | Normally open | Normally open | Normally open | Normally open |
SP10T: unterminated, normally open, direct power drive
| Parameter | 80135DA | 80135EA |
|---|---|---|
| Frequency range(GHz) | DC to 18 | DC to 26.5 |
| VSWR(Max) | 1.30(DC to 4GHz) 1.50(4GHz to 12.4GHz) 1.60(12.4GHz to 18GHz) | 1.30(DC to 4GHz) 1.50(4GHz to 12.4GHz) 1.60(12.4GHz to 18GHz) 1.70(18GHz to 26.5GHz) |
| Insertion loss(dB Max) | 0.30(DC to 4GHz) 0.50(4GHz to 12.4GHz) 0.70(12.4GHz to 18GHz) | 0.40(DC to 4GHz) 0.50(4GHz to 12.4GHz) 0.70(12.4GHz to 18GHz) 1.00(18GHz to 26.5GHz) |
| Isolation(dB Min) | 70(DC to 4GHz) 60(4GHz to 12.4GHz) 55(12.4GHz to 18GHz) | 70(DC to 4GHz) 60(4GHz to 12.4GHz) 55(12.4GHz to 18GHz) 50(18GHz to 26.5GHz) |
| Power handling (CW, W Max) | 40(DC to 4GHz) 20(4GHz to 12.4GHz) 15(12.4GHz to 18GHz) | 40(DC to 4GHz) 20(4GHz to 12.4GHz) 15(12.4GHz to 18GHz) 10(18GHz to 26.5GHz) |
| Switching time(ms Max) | 15, room temperature | 15, room temperature |
| Repeatability(dB Max) | 0.05 | 0.05 |
| Lifetime (ten-thousand cycles, Min) | 100 | 100 |
| Connector | SMA(f) | SMA(f) |
| DC drive voltage(V) | +20 to +28(nominal +24V) | +20 to +28(nominal +24V) |
| DC drive current(mA) | 100(+24V, room temperature) | 100(+24V, room temperature) |
| Relay structure | Normally open | Normally open |
| Control method | Direct power drive | Direct power drive |
Waveguide switches
DPDT waveguide switches can also be used as SPDT. Match the waveguide frequency band and flange.
Waveguide switch selection
| Model | Product | Frequency range(GHz) | Waveguide | Flange | Switching time(ms Max) | Insertion loss(dB Max) | VSWR(Max) | Weight(g) |
|---|---|---|---|---|---|---|---|---|
| 82107H | Waveguide switch | 7.05 to 10 | WR112 | FBP 84 | 60 | 0.1 | 1.1 | 685±15 |
| 82107K | Waveguide switch | 8.2 to 12.4 | WR90 | FBP 100 | 50 | 0.1 | 1.1 | 615±15 |
| 82107L | Waveguide switch | 10 to 15 | WR75 | FBP 120 | 50 | 0.1 | 1.1 | 330±15 |
| 82107M | Waveguide switch | 12.4 to 18 | WR62 | FBP 140 | 50 | 0.1 | 1.1 | 235±15 |
| 82107P | Waveguide switch | 18 to 26.5 | WR42 | FBP 220 | 50 | 0.1 | 1.1 | 220±15 |
| 82107Q | Waveguide switch | 22 to 33 | WR34 | FBP 260 | 50 | 0.15 | 1.1 | 215±15 |
| 82107R | Waveguide switch | 26.5 to 40 | WR28 | FBP 320 | 50 | 0.15 | 1.15 | 215±15 |
| 82107S | Waveguide switch | 33 to 50 | WR22 | UG-383/U | 50 | 0.2 | 1.15 | 210±15 |
| 82107T | Waveguide switch | 40 to 60 | WR19 | UG-383/U | 50 | 0.3 | 1.2 | 200±15 |
| 82107V | Waveguide switch | 60 to 90 | WR12 | UG-387/U | 50 | 0.4 | 1.2 | 190±15 |
| 82107W | Waveguide switch | 75 to 110 | WR10 | UG-387/U | 50 | 0.4 | 1.2 | 185±15 |
DC blocks
DC block selection
| Model | Product | Frequency range(GHz) | Insertion loss(dB Max) | VSWR(Max) | Interface | Voltage rating(V Max) |
|---|---|---|---|---|---|---|
| 71802 | DC block | 0.045 to 26.5 | 1 | 1.3 | 3.5mm(m-f) | 50 |
| 71802A | DC block | 0.01 to 18 | 1 | 1.2 | N(m-f) | 50 |
| 71802C | DC block | 0.01 to 40 | 1 | 1.43 | 2.4mm(m-f) | 50 |
| 71802D | DC block | 0.01 to 67 | 1 | 1.45 | 1.85mm(m-f) | 16 |
| 71802LA | DC block | 0.01 to 67 | 1.5 | 1.8 | 1.85mm(m-f) | 16 |
| 71802E | DC block | 0.01 to 40 | 1 | 1.4 | 2.92mm(m-f) | 50 |
| 71802P | DC block | 0.01 to 110 | 2 | 1.8 | 1.0mm(m-f) | 16 |
Power dividers
Power divider selection
| Model | Product | Frequency range(GHz) | Isolation(dB Min) | Input return loss(dB Min) | Insertion loss(dB Max) | Amplitude balance(dB) | Phase balance(°) | Ports | Input power(W Max) | Interface |
|---|---|---|---|---|---|---|---|---|---|---|
| 81310 | Power divider | DC to 24 | 10 | 12 | 8 | ±1 | ±3.5 | 2 | 0.5 | 3.5mm(f) |
| 81320 | Power divider | DC to 40 | 10 | 9.5 | 16.3 | ±2.0 | ±7 | 4 | 0.5 | 2.4mm(f) |
| 81311 | Power divider | DC to 26.5 | 10 | 17 | 7.7 | ±0.25 | ±3 | 2 | 1 | 3.5mm(f) |
| 81312 | Power divider | DC to 40 | 9 | 15 | 7.7 | ±0.4 | ±4 | 2 | 1 | 2.92mm(f) |
| 81313 | Power divider | DC to 50 | 9 | 10 | 8.1 | ±0.5 | ±5 | 2 | 0.5 | 2.4mm(f) |
| 81314 | Power divider | DC to 67 | 8 | 10 | 8.2 | ±0.8 | ±7 | 2 | 0.5 | 1.85mm(f) |
| 81351GA | Power divider | DC to 110 | 8 | 9 | 9 | ±1.5 | ±15 | 2 | 1 | 1.0mm(f) |
Broadband baluns
The 81902 series is tested from 10 MHz. The 81902PQ is tested up to 110 GHz; 125 GHz is a design/simulation reference, not a measured performance guarantee. The EC/FC/HC/LC models use a four-port vector network analyzer; the 1 mm PN/PC/PQ models use two-port testing. Sds21 and Scs21 are differential-mode and common-mode transmission S-parameters. Other unspecified parameters refer to single-ended operation.
Broadband balun specifications
| Parameter | 81902EC | 81902FC | 81902HC | 81902LC | 81902PN | 81902PC | 81902PQ |
|---|---|---|---|---|---|---|---|
| Frequency range (GHz) | 0.01 to 26.5 | 0.01 to 40 | 0.01 to 50 | 0.01 to 67 | 0.01 to 90 | 0.01 to 110 | 0.01 to 110 |
| Insertion loss (dB) / Typ. | 8.2 | 8.8 | 8.9 | 9.0 | 9.2 | 9.4 | 9.4 |
| Insertion loss (dB) / Max. | 10.2 | 10.3 | 10.4 | 10.5 | 10.8 | 11.2 | 11.2 |
| Transmission frequency response (dB) / Typ. | 1.8 | 2.0 | 2.1 | 2.3 | 2.6 | 2.8 | 2.8 |
| Insertion loss Sds21 (dB) / Typ. | 6.2 | 6.3 | 6.4 | 6.5 | — | — | — |
| Insertion loss Sds21 (dB) / Max. | 7.2 | 7.3 | 7.4 | 7.5 | — | — | — |
| Transmission frequency response Sds21 (dB) / Typ. | 1.6 | 1.7 | 1.8 | 2.0 | — | — | — |
| Nominal phase shift (°) | 180.0 | 180.0 | 180.0 | 180.0 | 180.0 | 180.0 | 180.0 |
| Phase balance (°) / Typ. | ±4.0 | ±4.0 | ±4.0 | ±4.0 | ±4.0 | ±4.0 | ±5.0 |
| Phase balance (°) / Max. | ±6.0 | ±6.0 | ±6.0 | ±6.0 | ±6.0 | ±6.0 | ±7.0 |
| Amplitude balance (dB) / Typ. | ±0.6 | ±0.6 | ±0.6 | ±0.6 | ±0.7 | ±0.7 | ±0.8 |
| Amplitude balance (dB) / Max. | ±1.0 | ±1.0 | ±1.0 | ±1.0 | ±1.0 | ±1.0 | ±1.1 |
| Common-mode rejection (dB) / Min. | 28.0 | 28.0 | 28.0 | 28.0 | 28.0 | 28.0 | 28.0 |
| Common-mode rejection (dB) / Typ. | 32.0 | 32.0 | 32.0 | 32.0 | 32.0 | 32.0 | 32.0 |
| Common-mode rejection Scs21 (dB) / Min. | 30.0 | 30.0 | 30.0 | 30.0 | — | — | — |
| Common-mode rejection Scs21 (dB) / Typ. | 35.0 | 35.0 | 35.0 | 35.0 | — | — | — |
| Return loss (dB) / Common port / Min. | 18.0 | 17.0 | 17.0 | 16.0 | 14.0 | 13.0 | 12.0 |
| Return loss (dB) / Common port / Typ. | 21.0 | 20.0 | 20.0 | 18.0 | 16.0 | 15.0 | 14.0 |
| Return loss (dB) / Differential port / Min. | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 |
| Return loss (dB) / Differential port / Typ. | 12.0 | 12.0 | 12.0 | 12.0 | 12.0 | 12.0 | 12.0 |
| Connector(f) | 3.5mm | 2.92mm | 2.4mm | 1.85mm | 1.0mm | 1.0mm | 1.0mm |
Test cables
Select interface, frequency range, required length and phase/amplitude stability. m denotes male and f denotes female.
VNA test cables
| Model | Product | Frequency range(GHz) | Connector | VSWR | Insertion loss(dB) | Phase stability(°) | Amplitude stability(dB) | Length(cm) |
|---|---|---|---|---|---|---|---|---|
| 87308 | VNA test cable | DC to 26.5 | NMD3.5-3.5(m) | 1.25 | 2.2 | 4.0 | 0.08 | 63 |
| 87308A | VNA test cable | DC to 26.5 | NMD3.5-3.5(f) | 1.25 | 2.2 | 4.0 | 0.08 | 63 |
| 87308SR | VNA test cable | DC to 40 | NMD2.92-2.92(m) | 1.32 | 2.7 | 4.0 | 0.08 | 63 |
| 87308SS | VNA test cable | DC to 40 | NMD2.92-2.92(f) | 1.32 | 2.7 | 4.0 | 0.08 | 63 |
| 87308QS | VNA test cable | DC to 40 | NMD2.4-2.92(f) | 1.32 | 2.7 | 4.0 | 0.08 | 63 |
| 87308QR | VNA test cable | DC to 40 | NMD2.4-2.92(m) | 1.32 | 2.7 | 4.0 | 0.08 | 63 |
| 87308HA | VNA test cable | DC to 50 | NMD2.4-2.4(f) | 1.35 | 3.0 | 6.0 | 0.08 | 63 |
| 87308HB | VNA test cable | DC to 50 | NMD2.4-2.4(m) | 1.35 | 3.0 | 6.0 | 0.08 | 63 |
| 87302NN | VNA test cable | DC to 67 | NMD1.85-1.85(f) | 1.40 | 5.0 | 8.5 | 0.10 | 63 |
| 87302NM | VNA test cable | DC to 67 | NMD1.85-1.85(m) | 1.40 | 5.0 | 8.5 | 0.10 | 63 |
| 87308HG | VNA test cable | DC to 110 | NMD1.0-1.0(m) | 1.35 | 7.2 | 25.0 | 0.20 | 35 |
| 87308HH | VNA test cable | DC to 110 | NMD1.0-1.0(f) | 1.35 | 7.2 | 25.0 | 0.20 | 35 |
Flexible test cables
| Model | Product | Frequency range(GHz) | Connector | VSWR | Insertion loss(dB) | Phase stability(°) | Amplitude stability(dB) | Length(cm) |
|---|---|---|---|---|---|---|---|---|
| 87302AZ | Flexible test cable | DC to 18 | N(m)-N(m) | 1.25 | 1.6 | 4.0 | 0.05 | 60 |
| 87302BA | Flexible test cable | DC to 18 | N(m)-N(f) | 1.25 | 1.6 | 4.0 | 0.05 | 60 |
| 87302AY | Flexible test cable | DC to 18 | N(m)-SMA(f) | 1.25 | 2.2 | 4.0 | 0.05 | 80 |
| 87302AX | Flexible test cable | DC to 18 | N(m)-SMA(m) | 1.25 | 2.2 | 4.0 | 0.05 | 80 |
| 87302FZ | Flexible test cable | DC to 26.5 | 3.5(f)-3.5(f) | 1.25 | 1.9 | 5.0 | 0.10 | 60 |
| 87302FE | Flexible test cable | DC to 26.5 | 3.5(f)-3.5(m) | 1.25 | 1.9 | 5.0 | 0.10 | 60 |
| 87302SR | Flexible test cable | DC to 40 | 2.92(f)-2.92(m) | 1.25 | 2.6 | 6.0 | 0.10 | 60 |
| 87302SS | Flexible test cable | DC to 40 | 2.92(f)-2.92(f) | 1.25 | 2.6 | 6.0 | 0.10 | 60 |
| 87302QS | Flexible test cable | DC to 40 | 2.4(f)-2.92(f) | 1.25 | 2.6 | 6.0 | 0.10 | 60 |
| 87302QR | Flexible test cable | DC to 40 | 2.4(f)-2.92(m) | 1.25 | 2.6 | 6.0 | 0.10 | 60 |
| 87302QQ | Flexible test cable | DC to 50 | 2.4(f)-2.4(f) | 1.30 | 2.6 | 8.0 | 0.10 | 60 |
| 87302QP | Flexible test cable | DC to 50 | 2.4(f)-2.4(m) | 1.30 | 2.6 | 8.0 | 0.10 | 60 |
| 87302NZ | Flexible test cable | DC to 67 | 1.85(f)-1.85(f) | 1.35 | 4.5 | 10.0 | 0.15 | 60 |
| 87302NY | Flexible test cable | DC to 67 | 1.85(f)-1.85(m) | 1.35 | 4.5 | 10.0 | 0.15 | 60 |
| 87302HH | Flexible test cable | DC to 110 | 1.0(f)-1.0(f) | 1.35 | 2.9 | 20.0 | 0.20 | 10 |
| 87302HG | Flexible test cable | DC to 110 | 1.0(f)-1.0(m) | 1.35 | 2.9 | 20.0 | 0.20 | 10 |
| 87302KK | Flexible test cable | DC to 145 | 0.8(f)-0.8(f) | 1.43 | 3.8 | — | — | 10 |
| 87302KL | Flexible test cable | DC to 145 | 0.8(f)-0.8(m) | 1.43 | 3.8 | — | — | 10 |
Test antennas
Double-ridged horn antennas and conical/pyramidal horns are listed separately. Gain and VSWR for the 89905 and 89906 series are manufacturer design/simulation reference values. Measured performance may vary with configuration.
Double-ridged horn antennas
| Model | Frequency range(GHz) | Interface VSWR | Interface | Antenna gain(dB) |
|---|---|---|---|---|
| 89901 | 1 to 18 | ≤2.8(1GHz≤f≤4GHz) ≤2.5(4GHz＜f＜14GHz) ≤2.8(14GHz≤f≤18GHz) | N(f) | ≥3dB(1GHz≤f≤4GHz) ≥7dB(4GHz＜f＜14GHz) ≥6dB(14GHz≤f≤18GHz) |
| 89902 | 18 to 40 | ≤2.5(18GHz≤f≤26.5GHz) ≤4.8(26.5GHz＜f≤40GHz) | 2.92mm(f) | ≥3dB(18GHz≤f≤26.5GHz) ≥5dB(26.5GHz＜f≤40GHz) |
Conical horn antennas
| Model | Frequency range(GHz) | Gain (dB Min, design reference) | Gain (dB Typ, design reference) | VSWR (Max, design reference) | VSWR (Typ, design reference) | Waveguide | Flange |
|---|---|---|---|---|---|---|---|
| 89905H | 33 to 50 | 15 | 20 | 1.5 | 1.3 | WR22 | UG-383/U |
| 89905K | 40 to 60 | 15 | 20 | 1.5 | 1.3 | WR19 | UG-383/U |
| 89905NA | 50 to 75 | 15 | 20 | 1.5 | 1.3 | WR15 | UG-385/U |
| 89905N | 60 to 90 | 15 | 20 | 1.5 | 1.3 | WR12 | UG-387/U |
| 89905P | 75 to 110 | 15 | 20 | 1.5 | 1.3 | WR10 | UG-387/U |
| 89905QA | 90 to 140 | 15 | 20 | 1.5 | 1.3 | WR8.0 | UG-387/U |
| 89905Q | 110 to 170 | 15 | 20 | 1.5 | 1.3 | WR6.5 | UG-387/U |
| 89905R | 140 to 220 | 15 | 20 | 1.5 | 1.3 | WR5.1 | UG-387/U |
| 89905SA | 170 to 260 | 15 | 20 | 1.5 | 1.3 | WR4.3 | UG-387/U |
| 89905S | 220 to 325 | 15 | 23 | 1.5 | 1.3 | WR3.4 | UG-387/U |
| 89905TA | 260 to 400 | 15 | 23 | 1.5 | 1.3 | WR2.8 | UG-387/U |
| 89905T | 325 to 500 | 15 | 23 | 1.5 | 1.3 | WR2.2 | UG-387/U |
| 89905UA | 400 to 600 | 15 | 23 | 1.5 | 1.3 | WR1.9 | UG-387/U |
| 89905U | 500 to 750 | 15 | 23 | 1.5 | 1.3 | WR1.5 | UG-387/U |
| 89905VA | 600 to 900 | 15 | 23 | 1.5 | 1.3 | WR1.2 | UG-387/U |
| 89905V | 750 to 1100 | 15 | 23 | 1.5 | 1.3 | WR1.0 | UG-387/U |
Pyramidal horn antennas
| Model | Frequency range(GHz) | Gain (dB Min, design reference) | Gain (dB Typ, design reference) | VSWR (Max, design reference) | VSWR (Typ, design reference) | Waveguide | Flange |
|---|---|---|---|---|---|---|---|
| 89906H | 33 to 50 | 15 | 23 | 1.5 | 1.2 | WR22 | UG-383/U |
| 89906K | 40 to 60 | 15 | 23 | 1.5 | 1.2 | WR19 | UG-383/U |
| 89906NA | 50 to 75 | 15 | 23 | 1.5 | 1.2 | WR15 | UG-385/U |
| 89906N | 60 to 90 | 15 | 23 | 1.5 | 1.2 | WR12 | UG-387/U |
| 89906P | 75 to 110 | 15 | 23 | 1.5 | 1.2 | WR10 | UG-387/U |
| 89906QA | 90 to 140 | 15 | 23 | 1.5 | 1.2 | WR8.0 | UG-387/U |
| 89906Q | 110 to 170 | 15 | 23 | 1.5 | 1.2 | WR6.5 | UG-387/U |
| 89906R | 140 to 220 | 15 | 23 | 1.5 | 1.2 | WR5.1 | UG-387/U |
| 89906SA | 170 to 260 | 15 | 23 | 1.5 | 1.2 | WR4.3 | UG-387/U |
| 89906S | 220 to 325 | 15 | 23 | 1.5 | 1.2 | WR3.4 | UG-387/U |
| 89906TA | 260 to 400 | 15 | 23 | 1.5 | 1.2 | WR2.8 | UG-387/U |
| 89906T | 325 to 500 | 15 | 23 | 1.5 | 1.2 | WR2.2 | UG-387/U |
| 89906UA | 400 to 600 | 15 | 24 | 1.5 | 1.2 | WR1.9 | UG-387/U |
| 89906U | 500 to 750 | 15 | 24 | 1.5 | 1.2 | WR1.5 | UG-387/U |
| 89906VA | 600 to 900 | 15 | 24 | 1.5 | 1.2 | WR1.2 | UG-387/U |
| 89906V | 750 to 1100 | 15 | 23 | 1.5 | 1.2 | WR1.0 | UG-387/U |
Microwave measurement probes
Match frequency range, interface, contact pitch and contact size to the device under test. Typical values, maximum loss and minimum return loss are listed separately.
Microwave probe selection
| Model | Frequency range | Interface | Contact pitch(μm) | Contact size(μm) | Insertion loss(dB Typ) | Insertion loss(dB Max) | Return loss(dB Typ) | Return loss(dB Min) |
|---|---|---|---|---|---|---|---|---|
| 36102FC | DC to 40GHz | 2.92mm(f) | 150 | 50 | 0.65dB | 0.9dB | 19dB | 15dB |
| 36102FC-100-0000 | DC to 40GHz | 2.92mm(f) | 100 | 50 | 0.65dB | 0.9dB | 19dB | 15dB |
| 36102FC-100-0010 | DC to 40GHz | 2.92mm(f) | 100 | 50 | 0.65dB | 0.9dB | 19dB | 15dB |
| 36102FC-100-1000 | DC to 40GHz | 2.92mm(f) | 100 | 25 | 0.65dB | 0.9dB | 19dB | 15dB |
| 36102FC-100-1010 | DC to 40GHz | 2.92mm(f) | 100 | 25 | 0.65dB | 0.9dB | 19dB | 15dB |
| 36102FC-150-0001 | DC to 40GHz | 2.92mm(f) | 150 | 50 | 0.65dB | 0.9dB | 19dB | 15dB |
| 36102FC-150-0010 | DC to 40GHz | 2.92mm(f) | 150 | 50 | 0.65dB | 0.9dB | 19dB | 15dB |
| 36102FC-150-1000 | DC to 40GHz | 2.92mm(f) | 150 | 25 | 0.65dB | 0.9dB | 19dB | 15dB |
| 36102FC-150-100H | DC to 40GHz | 2.92mm(f) | 150 | 25 | 0.6dB | 0.8dB | 21dB | 15dB |
| 36102FC-150-100P | DC to 40GHz | 2.92mm(f) | 150 | 25 | 0.6dB | 0.8dB | 21dB | 15dB |
| 36102FC-150-1010 | DC to 40GHz | 2.92mm(f) | 150 | 25 | 0.65dB | 0.9dB | 19dB | 15dB |
| 36102FC-200-0000 | DC to 40GHz | 2.92mm(f) | 200 | 50 | 0.65dB | 0.9dB | 19dB | 15dB |
| 36102FC-200-0010 | DC to 40GHz | 2.92mm(f) | 200 | 50 | 0.65dB | 0.9dB | 19dB | 15dB |
| 36102FC-200-1000 | DC to 40GHz | 2.92mm(f) | 200 | 25 | 0.65dB | 0.9dB | 19dB | 15dB |
| 36102FC-200-1010 | DC to 40GHz | 2.92mm(f) | 200 | 25 | 0.65dB | 0.9dB | 19dB | 15dB |
| 36102FC-250-0000 | DC to 40GHz | 2.92mm(f) | 250 | 50 | 0.7dB | 1.0dB | 18dB | 14dB |
| 36102FC-250-0010 | DC to 40GHz | 2.92mm(f) | 250 | 50 | 0.7dB | 1.0dB | 18dB | 14dB |
| 36102FC-250-1000 | DC to 40GHz | 2.92mm(f) | 250 | 25 | 0.7dB | 1.0dB | 18dB | 14dB |
| 36102FC-250-1010 | DC to 40GHz | 2.92mm(f) | 250 | 25 | 0.7dB | 1.0dB | 18dB | 14dB |
| 36102FC-500-0000 | DC to 40GHz | 2.92mm(f) | 500 | 50 | 0.9dB | 1.0dB | 16dB | 14dB |
| 36102HC | DC to 50GHz | 2.4mm(f) | 150 | 50 | 0.8dB | 1.2dB | 19dB | 14dB |
| 36102HC-100-0000 | DC to 50GHz | 2.4mm(f) | 100 | 50 | 0.8dB | 1.2dB | 19dB | 14dB |
| 36102HC-100-0010 | DC to 50GHz | 2.4mm(f) | 100 | 50 | 0.8dB | 1.2dB | 19dB | 14dB |
| 36102HC-100-1000 | DC to 50GHz | 2.4mm(f) | 100 | 25 | 0.8dB | 1.2dB | 19dB | 14dB |
| 36102HC-100-1010 | DC to 50GHz | 2.4mm(f) | 100 | 25 | 0.8dB | 1.2dB | 19dB | 14dB |
| 36102HC-150-0010 | DC to 50GHz | 2.4mm(f) | 150 | 50 | 0.8dB | 1.2dB | 19dB | 14dB |
| 36102HC-150-1000 | DC to 50GHz | 2.4mm(f) | 150 | 25 | 0.8dB | 1.2dB | 19dB | 14dB |
| 36102HC-150-100P | DC to 50GHz | 2.4mm(f) | 150 | 25 | 0.7dB | 1.2dB | 20dB | 14dB |
| 36102HC-150-1010 | DC to 50GHz | 2.4mm(f) | 150 | 25 | 0.8dB | 1.2dB | 19dB | 14dB |
| 36102HC-200-0000 | DC to 50GHz | 2.4mm(f) | 200 | 50 | 0.8dB | 1.2dB | 19dB | 14dB |
| 36102HC-200-0010 | DC to 50GHz | 2.4mm(f) | 200 | 50 | 0.8dB | 1.2dB | 19dB | 14dB |
| 36102HC-200-1000 | DC to 50GHz | 2.4mm(f) | 200 | 25 | 0.8dB | 1.2dB | 19dB | 14dB |
| 36102HC-200-1010 | DC to 50GHz | 2.4mm(f) | 200 | 25 | 0.8dB | 1.2dB | 19dB | 14dB |
| 36102HC-250-0000 | DC to 50GHz | 2.4mm(f) | 250 | 50 | 0.9dB | 1.6dB | 18dB | 13dB |
| 36102HC-250-0010 | DC to 50GHz | 2.4mm(f) | 250 | 50 | 0.9dB | 1.6dB | 18dB | 13dB |
| 36102HC-250-1000 | DC to 50GHz | 2.4mm(f) | 250 | 25 | 0.9dB | 1.6dB | 18dB | 13dB |
| 36102HC-250-1010 | DC to 50GHz | 2.4mm(f) | 250 | 25 | 0.9dB | 1.6dB | 18dB | 13dB |
| 36102LC | DC to 67GHz | 1.85mm(f) | 150 | 50 | 1.1dB | 1.4dB | 19dB | 14dB |
| 36102LC-100-0000 | DC to 67GHz | 1.85mm(f) | 100 | 50 | 1.1dB | 1.4dB | 19dB | 14dB |
| 36102LC-100-0010 | DC to 67GHz | 1.85mm(f) | 100 | 50 | 1.1dB | 1.4dB | 19dB | 14dB |
| 36102LC-100-1000 | DC to 67GHz | 1.85mm(f) | 100 | 25 | 1.1dB | 1.4dB | 19dB | 14dB |
| 36102LC-100-1010 | DC to 67GHz | 1.85mm(f) | 100 | 25 | 1.1dB | 1.4dB | 19dB | 14dB |
| 36102LC-150-0010 | DC to 67GHz | 1.85mm(f) | 150 | 50 | 1.1dB | 1.4dB | 19dB | 14dB |
| 36102LC-150-1000 | DC to 67GHz | 1.85mm(f) | 150 | 25 | 1.1dB | 1.4dB | 19dB | 14dB |
| 36102LC-150-100P | DC to 67GHz | 1.85mm(f) | 150 | 25 | 1.0dB | 1.4dB | 20dB | 14dB |
| 36102LC-150-1010 | DC to 67GHz | 1.85mm(f) | 150 | 25 | 1.1dB | 1.4dB | 19dB | 14dB |
| 36102LC-200-0000 | DC to 67GHz | 1.85mm(f) | 200 | 50 | 1.1dB | 1.4dB | 19dB | 14dB |
| 36102LC-200-0010 | DC to 67GHz | 1.85mm(f) | 200 | 50 | 1.1dB | 1.4dB | 19dB | 14dB |
| 36102LC-200-1000 | DC to 67GHz | 1.85mm(f) | 200 | 25 | 1.1dB | 1.4dB | 19dB | 14dB |
| 36102LC-200-1010 | DC to 67GHz | 1.85mm(f) | 200 | 25 | 1.1dB | 1.4dB | 19dB | 14dB |
| 36102LC-250-0000 | DC to 67GHz | 1.85mm(f) | 250 | 50 | 1.2dB | 2.2dB | 17dB | 12dB |
| 36102LC-250-0010 | DC to 67GHz | 1.85mm(f) | 250 | 50 | 1.2dB | 2.2dB | 17dB | 12dB |
| 36102LC-250-1000 | DC to 67GHz | 1.85mm(f) | 250 | 25 | 1.2dB | 2.2dB | 17dB | 12dB |
| 36102LC-250-1010 | DC to 67GHz | 1.85mm(f) | 250 | 25 | 1.2dB | 2.2dB | 17dB | 12dB |
| 36102PC | DC to 110GHz | 1.0mm(f) | 150 | 50 | 1.5dB | 2.0dB | 16dB | 12dB |
| 36102PC-100-0000 | DC to 110GHz | 1.0mm(f) | 100 | 50 | 1.5dB | 2.0dB | 16dB | 12dB |
| 36102PC-100-0010 | DC to 110GHz | 1.0mm(f) | 100 | 50 | 1.5dB | 2.0dB | 16dB | 12dB |
| 36102PC-100-1000 | DC to 110GHz | 1.0mm(f) | 100 | 25 | 1.5dB | 2.0dB | 16dB | 12dB |
| 36102PC-100-1010 | DC to 110GHz | 1.0mm(f) | 100 | 25 | 1.5dB | 2.0dB | 16dB | 12dB |
| 36102PC-150-0010 | DC to 110GHz | 1.0mm(f) | 150 | 50 | 1.5dB | 2.0dB | 16dB | 12dB |
| 36102PC-150-1000 | DC to 110GHz | 1.0mm(f) | 150 | 25 | 1.5dB | 2.0dB | 16dB | 12dB |
| 36102PC-150-1010 | DC to 110GHz | 1.0mm(f) | 150 | 25 | 1.5dB | 2.0dB | 16dB | 12dB |
Microwave amplifiers
Amplifier components and modules are listed separately. Apply the specified Min/Max/Typ and frequency conditions to gain, noise figure, P-1dB and saturation power. Power-supply parameters are typical values for each model.
Low-noise amplifier components
| Model | Frequency range(GHz) | Gain(dB Min) | Noise figure(dB Max) | P-1dB(dBm Typ) | Power supply(Typ) | Interface |
|---|---|---|---|---|---|---|
| 80230AE | 0.01 to 2 | 25 | 1.7 | 15 | 230mA@+8V | SMA(f) |
| 80230AF | 0.01 to 6 | 30 | 2.5(0.2GHz to 6GHz) | 12 | 150mA@+8V | SMA(f) |
| 80230DB | 0.1 to 18 | 24 | 4.5 | 22 | 220mA@+8V | 3.5mm(f) |
| 80230DA | 2 to 20 | 25 | 4 | 12 | 130mA@+8V | 3.5mm(f) |
| 80230EA | 18 to 26.5 | 30 | 4 | 12 | 160mA@+7V | 3.5mm(f) |
| 80230FC | 0.5 to 40 | 31 | 6 | 15 | 300mA@+7V | 2.4mm(f) |
| 80230FA | 18 to 40 | 28 | 4.5 | 14 | 230mA@+7V | 2.4mm(f) |
| 80230FB | 26.5 to 40 | 30 | 4 | 10 | 270mA@+8V | 2.4mm(f) |
| 80230HA | 0.5 to 50 | 18 | 6(0.5GHz to 40GHz) 8.5(40GHz to 50GHz) | 10(40GHz) 7(50GHz) | 150mA@+7V | 2.4mm(f) |
| 80230LA | 40 to 67 | 20 | 7 | 8 | 210mA@+7V | 1.85mm(f) |
| 80235H | 0.0001 to 50 | 20 | 8(0.2GHz to 50GHz) | 10 | 170mA@+7V | 1.85mm(f) |
| 80235L | 0.0001 to 67 | 15 | 9.5(0.2GHz to 50GHz) | 11 | 190mA@+7V | 1.85mm(f) |
| 80235P | 0.0001 to 110 | 10(100kHz to 100GHz) 7(100GHz to 110GHz) | 12(0.2GHz to 67GHz) | - | 110mA@+5V | 1.0mm(f) |
Driver amplifier components
| Model | Frequency range(GHz) | Gain(dB Min) | Noise figure(dB Typ) | P-1dB(dBm Typ) | Psat(dBm Min) | Power supply(Typ) | Interface |
|---|---|---|---|---|---|---|---|
| 80210AA | 0.05 to 3 | 30 | 6 | 31 | 33 | 800mA@+26V | SMA(f) |
| 80210DB | 0.0001 to 20 | 23 | 4 | 25 | 26 | 570mA@+10V | 3.5mm(f) |
| 80210DA | 0.8 to 20 | 32 | 5 | 29 | 30 | 1.3A@+10V | 3.5mm(f) |
| 80210EB | 0.045 to 26.5 | 25 | 12 | 18 | 20 | 400mA@+7V | 3.5mm(f) |
| 80210EA | 1 to 26.5 | 10 | 8 | 18 | 20 | 200mA@+7V | 3.5mm(f) |
| 80210ED | 18 to 26.5 | 29 | 7 | 28 | 29 | 1.8A@+9V | 3.5mm(f) |
| 80210FA | 0.045 to 40 | 25 | 12 | 14 | 16 | 400mA@+7V | 2.4mm(f) |
| 80210FB | 18 to 40 | 22 | 10 | 24 | 25 | 1.5A@+9V | 2.4mm(f) |
| 80210FC | 18 to 40 | 22 | 10 | 24 | 25 | 1.5A@+9V | 2.92mm(f) |
| 80210HA | 20 to 50 | 26 | - | 24 | 25 | 2A@+7V | 2.4mm(f) |
| 80210LB | 0.01 to 67 | 20 | 8 | 8 | 10 | 350mA@+7V | 1.85mm(f) |
Low-noise amplifier modules
| Model | Frequency range(GHz) | Gain(dB Min) | Noise figure(dB Max) | P-1dB(dBm Typ) | Power supply(Typ) | Interface |
|---|---|---|---|---|---|---|
| 3840AE | 0.01 to 2 | 24 | 1.7 | 15 | 220V/ 50Hz (via power adapter) 12VDC (φ2.5mmDC terminal) | SMA(f) |
| 3840AF | 0.01 to 6 | 29 | 2.5(0.2GHz to 6GHz) | 11 | 220V/ 50Hz (via power adapter) 12VDC (φ2.5mmDC terminal) | SMA(f) |
| 3840DB | 0.1 to 18 | 22 | 4.5 | 21 | 220V/ 50Hz (via power adapter) 12VDC (φ2.5mmDC terminal) | 3.5mm(f) |
| 3840DA | 2 to 20 | 24 | 4.0 | 11 | 220V/ 50Hz (via power adapter) 12VDC (φ2.5mmDC terminal) | 3.5mm(f) |
| 3840EA | 18 to 26.5 | 29 | 4.0 | 10 | 220V/ 50Hz (via power adapter) 12VDC (φ2.5mmDC terminal) | 3.5mm(f) |
| 3840FA | 18 to 40 | 26 | 4.5 | 12 | 220V/ 50Hz (via power adapter) 12VDC (φ2.5mmDC terminal) | 2.4mm(f) |
| 3840FB | 26.5 to 40 | 29 | 4.0 | 10 | 220V/ 50Hz (via power adapter) 12VDC (φ2.5mmDC terminal) | 2.4mm(f) |
| 3840FC | 0.5 to 40 | 30 | 6.0 | 14 | 220V/ 50Hz (via power adapter) 12VDC (φ2.5mmDC terminal) | 2.4mm(f) |
| 3840HA | 0.5 to 50 | 18 | 6(0.5GHz to 40GHz) 8.5(40GHz to 50GHz) | 7 | 220V/ 50Hz (via power adapter) 12VDC (φ2.5mmDC terminal) | 2.4mm(f) |
| 3840LA | 40 to 67 | 20 | 7.0 | 8 | 220V/ 50Hz (via power adapter) 12VDC (φ2.5mmDC terminal) | 1.85mm(f) |
Driver amplifier modules
| Model | Frequency range(GHz) | Gain(dB Min) | Noise figure(dB Typ) | P-1dB(dBm Typ) | Psat(dBm Min) | Power supply(Typ) | Interface |
|---|---|---|---|---|---|---|---|
| 3843AA | 0.05 to 3 | 30 | 6 | 31 | 33 | 220V/ 50Hz (via power adapter) 12VDC (φ2.5mmDC terminal) | SMA(f) |
| 3843DA | 0.8 to 20 | 31 | 5 | 29 | 30 | 220V/ 50Hz (via power adapter) 12VDC (φ2.5mmDC terminal) | 3.5mm(f) |
| 3843DB | 0.0001 to 20 | 22 | 4 | 25 | 26 | 220V/ 50Hz (via power adapter) 12VDC (φ2.5mmDC terminal) | 3.5mm(f) |
| 3843EB | 0.045 to 26.5 | 24 | 12 | 19 | 20 | 220V/ 50Hz (via power adapter) 12VDC (φ2.5mmDC terminal) | 3.5mm(f) |
| 3843ED | 18 to 26.5 | 28 | 7 | 28 | 29 | 220V/ 50Hz (via power adapter) 12VDC (φ2.5mmDC terminal) | 3.5mm(f) |
| 3843FA | 0.045 to 40 | 24 | 12 | 15 | 16 | 220V/ 50Hz (via power adapter) 12VDC (φ2.5mmDC terminal) | 2.4mm(f) |
| 3843FB | 18 to 40 | 21 | 10 | 24 | 25 | 220V/ 50Hz (via power adapter) 12VDC (φ2.5mmDC terminal) | 2.4mm(f) |
| 3843FC | 18 to 40 | 21 | 10 | 24 | 25 | 220V/ 50Hz (via power adapter) 12VDC (φ2.5mmDC terminal) | 2.92mm(f) |
| 3843HA | 20 to 50 | 25 | - | 24 | 25 | 220V/ 50Hz (via power adapter) 12VDC (φ2.5mmDC terminal) | 2.4mm(f) |
| 3843LB | 0.01 to 67 | 18 | 8 | 9 | 10 | 220V/ 50Hz (via power adapter) 12VDC (φ2.5mmDC terminal) | 1.85mm(f) |
Electronic switches
Electronic switch selection
| Model | Type | Frequency range | Insertion loss(dB Max) | Isolation(dB Min) | Isolation(dB Typ) | On-state VSWR(Typ) | Off-state VSWR(Typ) | Interface |
|---|---|---|---|---|---|---|---|---|
| 80107 | SP4T(absorptive) | 10MHz to 20GHz | 6.0 | 90 | 110 | 2.3 | 2.1 | 3.5mm(f) |
| 80110 | SP3T(absorptive) | 1MHz to 18GHz | 6.0 | 40 | 50 | 1.8 | — | 3.5mm(f) |
Detectors
Standard products have negative output polarity. Specify positive polarity when ordering if required.
Coaxial detectors
| Model | Frequency range(GHz) | Frequency response(dB) | VSWR(Max) | Voltage sensitivity(mV/μW) | Maximum power handling(dBm) | Input interface | Output interface | RF bypass capacitance | Output polarity |
|---|---|---|---|---|---|---|---|---|---|
| 10317 | 0.01 to 8 | ±0.8 | 1.5 | 0.4 | +20 | SMA(m) | SMA(f) | 6.2pf | Negative |
| 10318 | 0.01 to 18 | ±1.0 | 2.0 | 0.4 | +20 | SMA(m) | SMA(f) | 6.2pf | Negative |
| 70302 | 0.01 to 26.5 | ±1.5 | 2.0 | 0.4 | +20 | 3.5mm(m) | SMA(f) | 6.2pf | Negative |
| 70303 | 0.01 to 40 | ±1.75 | 2.0 | 0.35 | +20 | 2.4mm(m) | SMA(f) | 6.2pf | Negative |
Waveguide detectors
| Model | Frequency range(GHz) | Frequency response(dB) | Voltage sensitivity(mV/μW) | Maximum power handling(dBm) | Input waveguide | Output interface | Output polarity |
|---|---|---|---|---|---|---|---|
| 70304 | 26.5 to 40 | ±1.5 | 0.3 | +20 | WR28 | SMA(f) | Negative |
| 82320 | 33 to 50 | ±1.8 | 0.3 | +20 | WR22 | SMA(f) | Negative |
| 70305 | 40 to 60 | ±1.8 | 0.3 | +20 | WR19 | SMA(f) | Negative |
| 82322 | 50 to 75 | ±2.0 | 0.2 | +20 | WR15 | SMA(f) | Negative |
| 70306 | 75 to 110 | ±2.2 | 0.1 | +20 | WR10 | SMA(f) | Negative |
Selection and ordering notes
- This page is an accessory selection catalog. Accessories may be quoted separately; it is not one standard bundle. Kits are supplied only according to the selected 87601-series configuration.
- m denotes male and f denotes female. Confirm frequency range, connector gender, impedance, power, voltage and mounting requirements.
- Max, Min and Typ denote maximum, minimum and typical values. The frequency bands and test conditions stated with a parameter remain applicable.
- Images show representative configurations for the relevant category. Appearance and supplied items depend on the selected model and order.
- For a quotation, specify accessory type, model/frequency range, interface, quantity and test-system requirements. Lead time depends on configuration.
