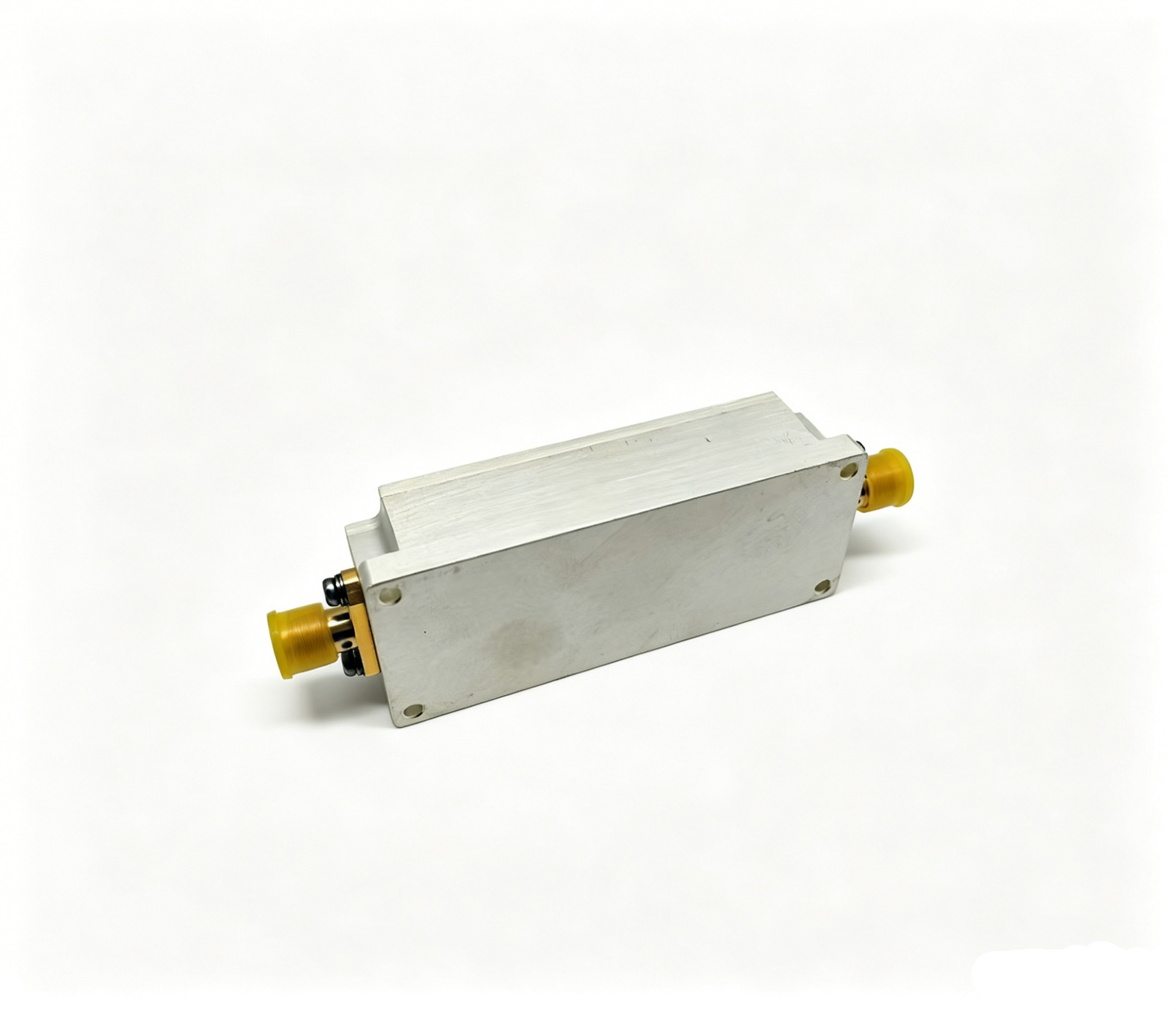

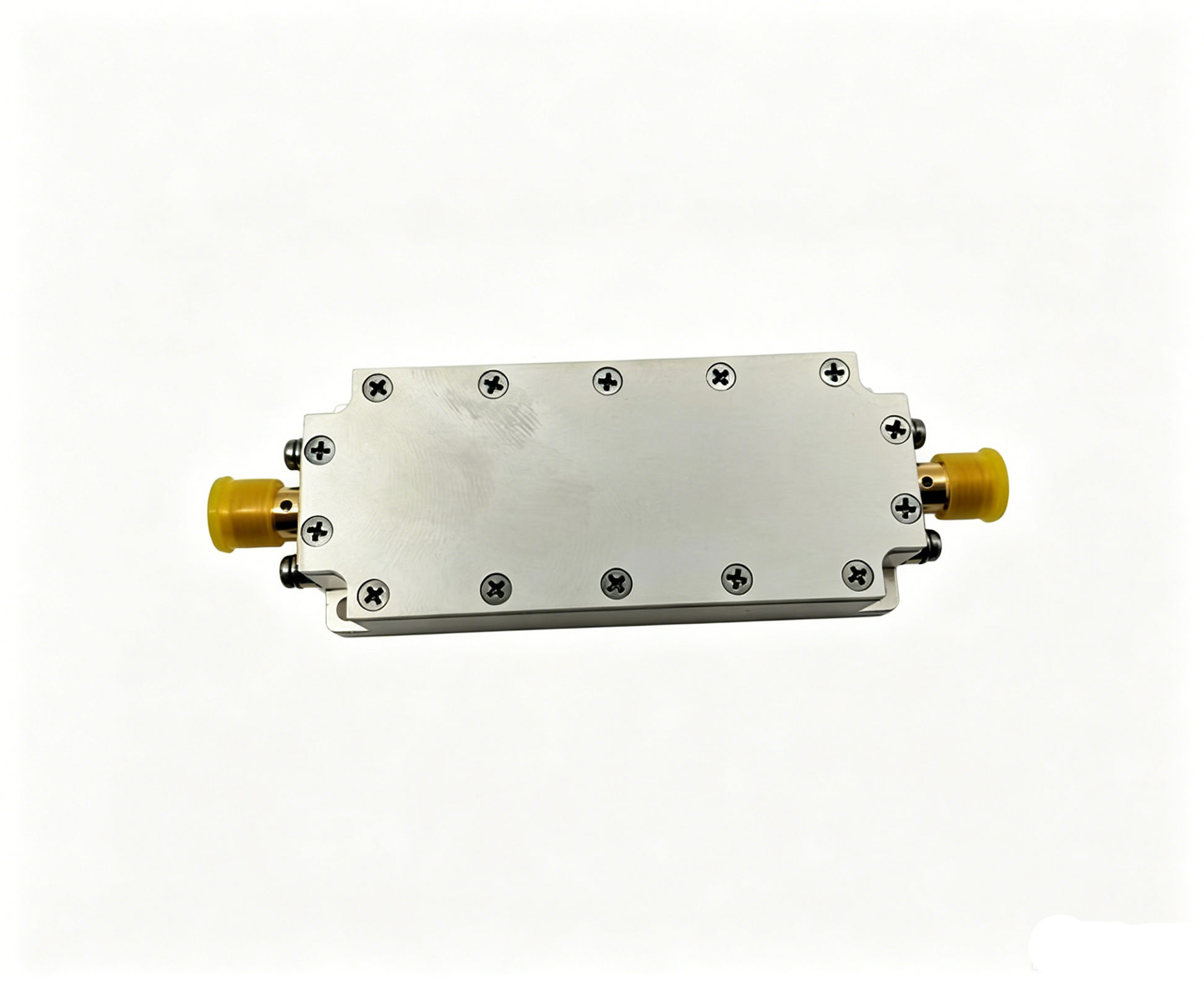

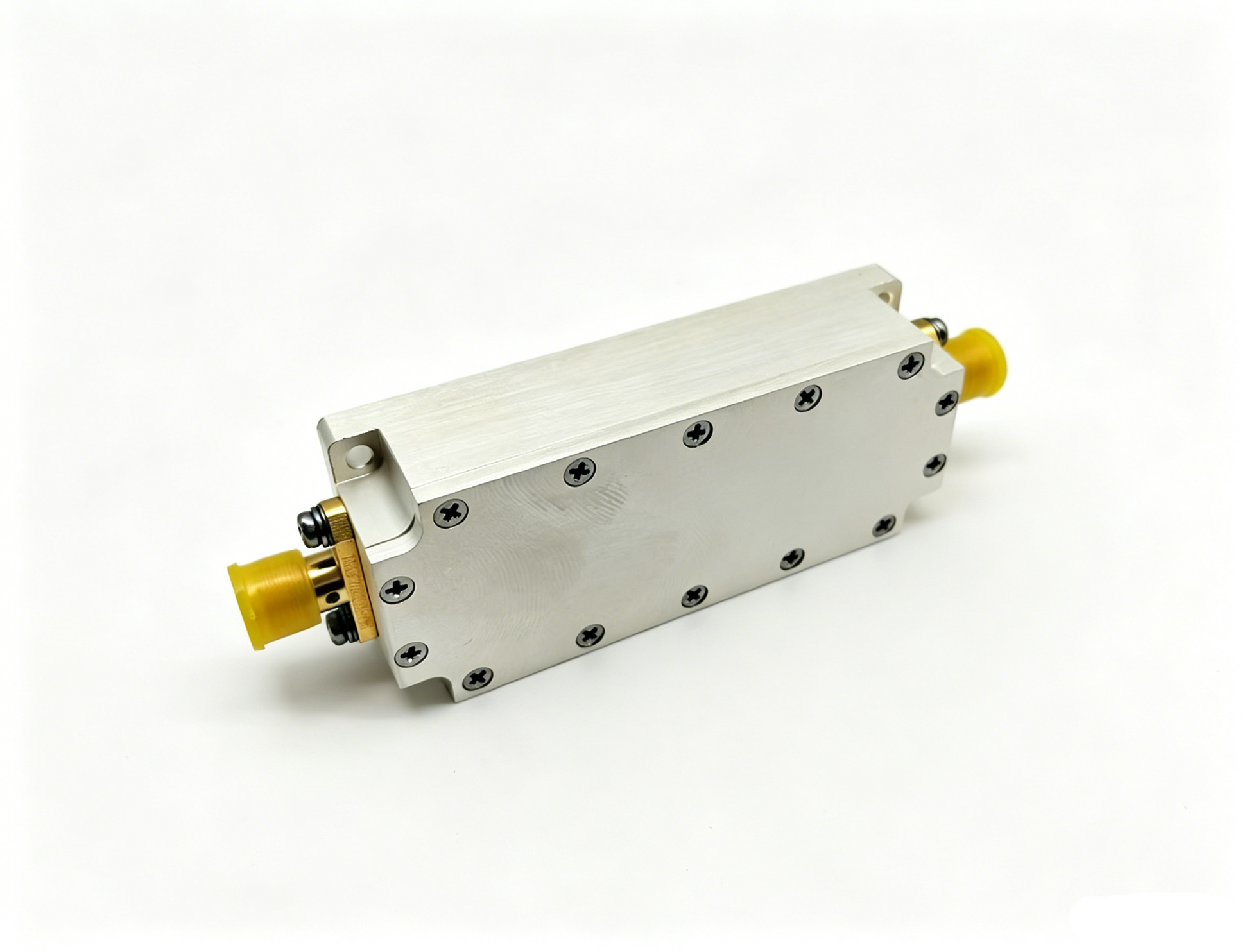

LC Filter ZCL1100M550BP

SMA Connector + Case-Type LC Filter

Product Configuration: Frequency 300-1200MHz, Insertion Loss 0.85dB, Rejection 1700MHz at 40dB, 1900MHz at 70dB, Power 200W; VSWR 1.5;

Product Dimensions: 65mm*25mm*15mm

Features: Ultra-wideband, metal structure, high reliability, low insertion loss, high power, small size;

Precautions for Use: Ensure adequate grounding and secure product mounting

Application Scenarios: Communication link systems, navigation, radar, anti-drone, and other fields;
