Ceyear waveguide mechanical calibration kit — representative configuration

YC-TI-CAL-0001 | Ceyear Coaxial/Waveguide Mechanical Calibration Kits

Price on request

Request a quote

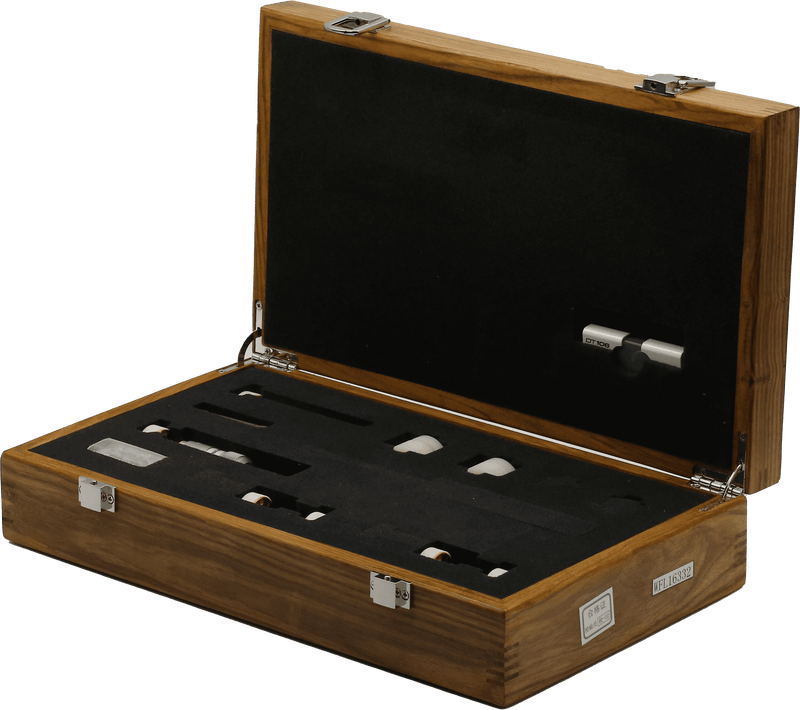

Image shows a representative Ceyear waveguide mechanical calibration kit. The appearance and accessories of coaxial and other waveguide models depend on the selected configuration.

Product overview

Coaxial and waveguide mechanical calibration kits support measurement calibration of compatible network analyzers. Select opens, shorts, loads, adapters and waveguide standards by interface, connector gender and frequency band. The tables list 34 coaxial and 28 waveguide configurations, each a selectable model, not one standard bundle containing every model.

Key specifications

Coaxial models and key specifications

Model	Frequency range	Interface	Configuration	Open	Short	Load VSWR	Adapter VSWR
20204	DC–3 GHz	N 75 Ω	Male/female kit	±1.6°	±1.2°	<1.04	<1.05
20205	DC–3 GHz	N	Male/female kit	±0.85°	±0.65°	<1.015	<1.029
20207	DC–3 GHz	N 50 Ω	T-type male	±0.85°	±0.65°	<1.015	—
20207A	DC–3 GHz	N 50 Ω	T-type female	±0.85°	±0.65°	<1.015	—
31104	DC–6 GHz	N	Male/female kit	±1.5°	±1.0°	<1.023	<1.029
31121A	DC–6 GHz	3.5 mm	Male/female kit	±0.85°	±0.55°	<1.029	<1.04
31121C	DC–6 GHz	3.5 mm	Male	±0.85°	±0.65°	≤1.029	≤1.052
31121B	DC–6 GHz	3.5 mm	Female	±0.85°	±0.65°	≤1.029	≤1.05
20208	50 MHz–7.5 GHz	7/16	Male/female kit	±2.0° (50 MHz–4 GHz); ±3.0° (4–7.5 GHz)	±1.8° (50 MHz–4 GHz); ±2.5° (4–7.5 GHz)	<1.066	<1.066 (50 MHz–4 GHz); <1.18 (4–7.5 GHz)
20201	DC–9 GHz	N	Male/female kit	±1.2°	±1.0°	<1.029	<1.052
20201A	DC–9 GHz	N 50 Ω	T-type male	±1.2°	±1.0°	<1.029	—
20201B	DC–9 GHz	N 50 Ω	T-type female	±1.2°	±1.0°	<1.029	—
20202	DC–9 GHz	3.5 mm	Male/female kit	±1.0°	±0.85°	<1.029	<1.052
20202A	DC–9 GHz	3.5 mm	Female	±0.85°	±0.65°	≤1.029	≤1.041
20202B	DC–9 GHz	3.5 mm	Male	±1.00°	±0.85°	≤1.029	≤1.041
31101	DC–18 GHz	N	Male/female kit	±0.5°	±0.5°	<1.04	—
31101A	DC–18 GHz	N 50 Ω	T-type male	±1.5°	±1.0°	<1.055	—
31101B	DC–18 GHz	N 50 Ω	T-type female	±1.5°	±1.0°	<1.055	—
31111	DC–18 GHz	7 mm	Calibration kit	±0.5°	±0.5°	<1.04	—
31101MA	50 MHz–18 GHz	N	Y-type male	±3.0°	±2.5°	≤1.08	≤1.1
31101MB	50 MHz–18 GHz	N	Y-type female	±3.0°	±2.5°	≤1.08	≤1.1
31121MA	50 MHz–26.5 GHz	3.5 mm	Y-type male	±2.0°	±2.0°	≤1.065	≤1.12
31121MB	50 MHz–26.5 GHz	3.5 mm	Y-type female	±2.0°	±2.0°	≤1.065	≤1.12
31121MC	50 MHz–26.5 GHz	3.5 mm	T-type male	±2.0°	±2.0°	≤1.065	—
31121MD	50 MHz–26.5 GHz	3.5 mm	T-type female	±2.0°	±2.0°	≤1.065	—
31121	DC–26.5 GHz	3.5 mm	Male/female kit	±1.5°	±1.5°	<1.041	<1.106
20206MA	100 MHz–40 GHz	2.92 mm	Y-type male	±6.0°	±4.5°	≤1.17	≤1.15
20206MB	100 MHz–40 GHz	2.92 mm	Y-type female	±6.0°	±4.5°	≤1.17	≤1.15
20206MC	100 MHz–40 GHz	2.92 mm	Female	±6.0°	±4.5°	≤1.17	≤1.15
20209FB	DC–40 GHz	2.92 mm	Male/female kit	±2.0°	±2.0°	≤1.07	≤1.12
31123A	DC–50 GHz	2.4 mm	Male/female kit	±2.25°	±2.0°	<1.106	<1.222
20209LA	10 MHz–67 GHz	1.85 mm	Male/female kit	±3.0°	±2.5°	≤1.06 (10 MHz–35 GHz)	≤1.23
20209LB	DC–67 GHz	1.85 mm	Male/female kit	±3.0°	±2.5°	≤1.12	≤1.23
20209QA	DC–120 GHz	1.0 mm	Male/female kit	±8.0°	±5.5°	≤1.14 (10 MHz–50 GHz)	≤1.38

Waveguide models and key specifications

Model	Frequency range	Fixed-load VSWR	Sliding-load VSWR	Adapter VSWR	Listed transition
32112	2.6–3.95 GHz	<1.03	—	<1.15	WR284–7 mm
32113	3.94–6 GHz	<1.03	—	<1.15	WR187–7 mm
32151	3.94–6 GHz	<1.03	—	<1.20	WR187–N (M/F)
32114	4.64–7.05 GHz	<1.03	—	<1.20	WR159–7 mm
32115	5.88–8.17 GHz	<1.03	—	<1.20	WR137–7 mm
32116	7–10 GHz	<1.03	—	<1.20	WR112–7 mm
32117	8–12 GHz	<1.03	—	<1.20	WR90–7 mm
32152	9–10 GHz	<1.03	—	<1.20	WR90–N (M/F)
32154	10–15 GHz	<1.03	—	<1.20	WR75–7 mm
32118	12–18 GHz	<1.03	—	<1.20	WR62–7 mm
32119	18–26.5 GHz	<1.03	—	<1.20	WR42–3.5 mm (F)
32101	26.5–40 GHz	<1.032	<1.032	—	—
32157	33–50 GHz	<1.06	<1.06	—	—
32121K	40–60 GHz	<1.06	<1.06	—	—
32156	50–75 GHz	<1.06	<1.06	—	—
32155N	60–90 GHz	<1.06	<1.07	—	—
32141	75–110 GHz	<1.065	<1.065	—	—
32155Q	90–140 GHz	<1.07	<1.085	—	—
32155	110–170 GHz	<1.06	<1.06	—	—
32155R	140–220 GHz	<1.085	—	—	—
20301	170–220 GHz	<1.085	—	—	—
32155S	170–260 GHz	<1.095	—	—	—
20302	220–325 GHz	<1.11	—	—	—
32155T	260–400 GHz	<1.12	—	—	—
20301T	325–500 GHz	<1.12	—	—	—
32155UB	400–600 GHz	<1.15	—	—	—
32155UA	500–750 GHz	<1.25	—	—	—
32155V	750–1100 GHz	<1.3	—	—	—

Waveguide component quantities

Model	Shorts	1/4 λg shims	1/8 λg shims	3/8 λg shims	Straight guides	Fixed loads	Sliding loads	Adapters
32112	2	2	0	0	0	2	0	2
32113	2	2	0	0	0	2	0	2
32151	2	0	1	1	0	2	0	2
32114	2	2	0	0	0	2	0	2
32115	2	2	0	0	0	2	0	2
32116	2	2	0	0	0	2	0	2
32117	2	2	0	0	0	2	0	2
32152	2	0	1	1	0	2	0	2
32154	2	2	0	0	0	2	0	2
32118	2	2	0	0	0	2	0	2
32119	2	2	0	0	0	2	0	2
32101	2	2	0	0	2	1	1	0
32157	2	2	0	0	2	1	1	0
32121K	1	1	0	0	2	1	1	0
32156	1	1	0	0	2	1	1	0
32155N	2	2	0	0	2	1	1	0
32141	1	1	0	0	2	1	1	0
32155Q	2	2	0	0	2	1	1	0
32155	1	1	0	0	2	1	1	0
32155R	2	2	0	0	2	2	0	0
20301	2	2	0	0	2	2	0	0
32155S	2	2	0	0	2	2	0	0
20302	2	2	0	0	2	2	0	0
32155T	2	2	0	0	2	2	0	0
20301T	2	2	0	0	2	2	0	0
32155UB	2	2	0	0	2	2	0	0
32155UA	2	2	0	0	2	2	0	0
32155V	2	2	0	0	2	2	0	0

Coaxial kit contents and optional accessories

Model	Contents for the selected model
20204	Open N75 m ×1; Short N75 m ×1; Fixed load N75 m ×1; Open N75 f ×1; Short N75 f ×1; Fixed load N75 f ×1; Adapter N75 f-f ×1; Adapter N75 m-m ×1; Adapter N75 m-f ×1; Adapter N50(f)-N75(m) ×1 (optional); Adapter N50(m)-N75(m) ×1 (optional); Adapter N50(m)-N75(f) ×1 (optional); Adapter N50(f)-N75(f) ×1 (optional); Torque wrench N ×1
20205	Open N m ×1; Short N m ×1; Fixed load N m ×1; Open N f ×1; Short N f ×1; Fixed load N f ×1; Adapter N f-f ×1; Adapter N m-m ×1; Adapter N m-f ×1; Torque wrench N ×1
20207	T-type male calibration kit N 50 Ω ×1
20207A	T-type female calibration kit N 50 Ω ×1
31104	Open N m ×1; Short N m ×1; Fixed load N m ×1; Open N f ×1; Short N f ×1; Fixed load N f ×1; Adapter N f-f ×1; Adapter N m-m ×1; Adapter N m-f ×1; Torque wrench N ×1
31121A	Open 3.5 mm m ×1; Short 3.5 mm m ×1; Fixed load 3.5 mm m ×1; Open 3.5 mm f ×1; Short 3.5 mm f ×1; Fixed load 3.5 mm f ×1; Adapter 3.5 mm f-f ×1; Adapter 3.5 mm m-m ×1; Adapter 3.5 mm m-f ×1; Adapter N(m)-3.5mm(m) ×1; Adapter N(m)-3.5mm(f) ×1; Adapter N(f)-3.5mm(m) ×1; Adapter N(f)-3.5mm(f) ×1; Torque wrench 3.5 mm ×1
31121C	Open 3.5 mm m ×1; Short 3.5 mm m ×1; Fixed load 3.5 mm m ×1; Adapter 3.5mm(m)-3.5mm(m) ×1 (optional); Adapter 3.5mm(m)-3.5mm(f) ×1 (optional); Adapter 3.5mm(f)-3.5mm(f) ×1 (optional); Adapter N(m)-3.5mm(m) ×1 (optional); Adapter N(m)-3.5mm(f) ×1 (optional)
31121B	Open 3.5 mm f ×1; Short 3.5 mm f ×1; Fixed load 3.5 mm f ×1; Adapter 3.5mm(m)-3.5mm(m) ×1 (optional); Adapter 3.5mm(m)-3.5mm(f) ×1 (optional); Adapter 3.5mm(f)-3.5mm(f) ×1 (optional); Adapter N(m)-3.5mm(m) ×1 (optional); Adapter N(m)-3.5mm(f) ×1 (optional)
20208	Open 7/16 m ×1; Short 7/16 m ×1; Fixed load 7/16 m ×1; Open 7/16 f ×1; Short 7/16 f ×1; Fixed load 7/16 f ×1; Adapter 7/16-KK ×1; Adapter 7/16-KJ ×1; Adapter 7/16-JJ ×1
20201	Open N m ×1; Short N m ×1; Fixed load N m ×1; Open N f ×1; Short N f ×1; Fixed load N f ×1; Adapter N f-f ×1; Adapter N m-m ×1; Adapter N m-f ×1; Torque wrench N ×1
20201A	T-type male calibration kit N 50 Ω ×1
20201B	T-type female calibration kit N 50 Ω ×1
20202	Open 3.5 mm m ×1; Short 3.5 mm m ×1; Fixed load 3.5 mm m ×1; Open 3.5 mm f ×1; Short 3.5 mm f ×1; Fixed load 3.5 mm f ×1; Adapter 3.5 mm f-f ×1; Adapter 3.5 mm m-m ×1; Adapter 3.5 mm m-f ×1; Adapter N(m)-3.5mm(m) ×1; Adapter N(m)-3.5mm(f) ×1; Adapter N(f)-3.5mm(m) ×1; Adapter N(f)-3.5mm(f) ×1; Torque wrench 3.5 mm ×1
20202A	Open 3.5 mm f ×1; Short 3.5 mm f ×1; Fixed load 3.5 mm f ×1; Adapter 3.5mm(f)-3.5mm(f) ×1
20202B	Open 3.5 mm m ×1; Short 3.5 mm m ×1; Fixed load 3.5 mm m ×1; Adapter 3.5mm(m)-3.5mm(m) ×1
31101	Open N m ×1; Short N m ×1; Fixed load N m ×1; Open N f ×1; Short N f ×1; Fixed load N f ×1; Adapter N(f)-N(f) ×1; Adapter N(m)-N(m) ×1; Adapter 7mm-N(m) ×1; Adapter 7mm-N(f) ×1; Torque wrench N ×1; Hook spanner ×1
31101A	T-type male calibration kit N 50 Ω ×1
31101B	T-type female calibration kit N 50 Ω ×1
31111	Open 7 mm ×1; Short 7 mm ×1; Fixed load 7 mm ×1; Torque wrench N ×1
31101MA	Y-type male calibration kit N ×1
31101MB	Y-type female calibration kit N ×1
31121MA	Y-type male calibration kit 3.5 mm ×1
31121MB	Y-type female calibration kit 3.5 mm ×1
31121MC	T-type male calibration kit 3.5 mm ×1
31121MD	T-type female calibration kit 3.5 mm ×1
31121	Open 3.5 mm m ×1; Short 3.5 mm m ×1; Fixed load 3.5 mm m ×1; Open 3.5 mm f ×1; Short 3.5 mm f ×1; Fixed load 3.5 mm f ×1; Adapter 3.5 mm f-f ×1; Adapter 3.5 mm m-m ×1; Adapter 3.5 mm m-f ×1; Torque wrench 3.5 mm ×1
20206MA	Y-type male calibration kit 2.92 mm ×1
20206MB	Y-type female calibration kit 2.92 mm ×1
20206MC	Mechanical calibration kit 2.92 mm f ×1
20209FB	Open 2.92 mm m ×1; Short 2.92 mm m ×1; Fixed load 2.92 mm m ×1; Open 2.92 mm f ×1; Short 2.92 mm f ×1; Fixed load 2.92 mm f ×1; Adapter 2.92 mm f-f ×1; Adapter 2.92 mm m-m ×1; Adapter 2.92 mm m-f ×1; Torque wrench 3.5 mm ×1
31123A	Open 2.4 mm m ×1; Short 2.4 mm m ×1; Fixed load 2.4 mm m ×1; Open 2.4 mm f ×1; Short 2.4 mm f ×1; Fixed load 2.4 mm f ×1; Adapter 2.4 mm f-f ×1; Adapter 2.4 mm m-m ×1; Adapter 2.4 mm m-f ×1; Torque wrench 3.5 mm ×1
20209LA	Open 1.85 mm m ×1; Short 1.85 mm m #1 ×1; Short 1.85 mm m #2 ×1; Short 1.85 mm m #3 ×1; Short 1.85 mm m #4 ×1; Fixed load 1.85 mm m ×1; Open 1.85 mm f ×1; Short 1.85 mm f #1 ×1; Short 1.85 mm f #2 ×1; Short 1.85 mm f #3 ×1; Short 1.85 mm f #4 ×1; Fixed load 1.85 mm f ×1; Adapter 1.85 mm f-f ×1; Adapter 1.85 mm m-m ×1; Adapter 1.85 mm m-f ×1; Torque wrench 3.5 mm ×1
20209LB	Open 1.85 mm m ×1; Short 1.85 mm m ×1; Fixed load 1.85 mm m ×1; Open 1.85 mm f ×1; Short 1.85 mm f ×1; Fixed load 1.85 mm f ×1; Adapter 1.85 mm f-f ×1; Adapter 1.85 mm m-m ×1; Adapter 1.85 mm m-f ×1; Torque wrench 3.5 mm ×1
20209QA	Open 1.0 mm m ×1; Short 1.0 mm m #1 ×1; Short 1.0 mm m #2 ×1; Short 1.0 mm m #3 ×1; Short 1.0 mm m #4 ×1; Fixed load 1.0 mm m ×1; Open 1.0 mm f ×1; Short 1.0 mm f #1 ×1; Short 1.0 mm f #2 ×1; Short 1.0 mm f #3 ×1; Short 1.0 mm f #4 ×1; Fixed load 1.0 mm f ×1; Adapter J-K ×1; Adapter J-J ×1; Adapter K-K ×1; Card wrench 1.0 mm ×1; Torque wrench 1.0 mm ×1

Additional information

Open and short entries specify angular figures. Strict and non-strict VSWR inequalities represent different limits.
The 20209LA load VSWR ≤1.06 applies only at 10 MHz–35 GHz. The 20209QA load VSWR ≤1.14 applies only at 10 MHz–50 GHz, not throughout the operating band.
Connector notation m/M/J means male, and f/F/K means female. Models sharing a frequency band may differ in interfaces, standards and calibration methods; frequency alone does not establish interchangeability.
Contents are listed per selected kit. Adapters marked optional are not standard items. A dash means that no value is listed, not zero error; a quantity of 0 means that component is absent from that configuration.
λg is the waveguide wavelength. Each row is a selectable model, not an all-model bundle. Provide the analyzer, band, interface, calibration method, report requirements and quantity; final configuration and delivery are defined in the quotation.
