YC-TI-PS-0004 | Ceyear 87237 Series USB Thermal Power Sensor
Price on request
Request a quoteThe 87237 series uses thermocouple detection to measure average power of CW and modulated signals. Models D, L and P cover DC–18 GHz, DC–67 GHz and DC–110 GHz, respectively; accuracy varies by model and band.

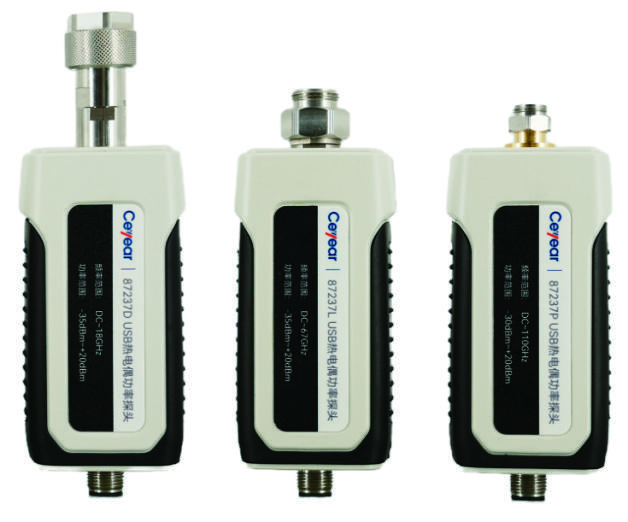

Series appearance reference showing multiple models. It does not imply that a set of sensors is included. The supplied model and connector are defined in the quotation.
Models and measurement ranges
| Manufacturer model | Frequency range | Power measurement range |
|---|---|---|
| 87237D | DC–18 GHz | −35…+20 dBm |
| 87237L | DC–67 GHz | −35…+20 dBm |
| 87237P | DC–110 GHz | −30…+20 dBm |
Accuracy and conditions
Accuracy conditions: −15…+20 dBm, DUT SWR<1.20 and averaging count 128. Zero-setting and measurement noise have increasing effects below −15 dBm.
| Manufacturer model | Frequency interval | Power measurement accuracy |
|---|---|---|
| 87237D | DC≤f≤8 GHz | ±0.16 dB |
| 87237D | 8 GHz<f≤18 GHz | ±0.19 dB |
| 87237L / 87237P | DC≤f≤8 GHz | ±0.19 dB |
| 87237L / 87237P | 8 GHz<f≤18 GHz | ±0.21 dB |
| 87237L / 87237P | 18 GHz<f≤26.5 GHz | ±0.25 dB |
| 87237L / 87237P | 26.5 GHz<f≤40 GHz | ±0.31 dB |
| 87237L / 87237P | 40 GHz<f≤67 GHz | ±0.37 dB |
| 87237P | 67 GHz<f≤80 GHz | ±0.41 dB |
| 87237P | 80 GHz<f≤95 GHz | ±0.57 dB |
| 87237P | 95 GHz<f≤110 GHz | ±0.61 dB |
Maximum VSWR
| Manufacturer model | Frequency interval | Maximum VSWR |
|---|---|---|
| 87237D | DC≤f≤18 GHz | 1.20 |
| 87237L | 100 kHz≤f≤18 GHz | 1.19 |
| 87237L | 18 GHz<f≤26.5 GHz | 1.25 |
| 87237L | 26.5 GHz<f≤33 GHz | 1.31 |
| 87237L | 33 GHz<f≤50 GHz | 1.48 |
| 87237L | 50 GHz<f≤67 GHz | 1.57 |
| 87237P | 100 kHz≤f≤18 GHz | 1.20 |
| 87237P | 18 GHz<f≤26.5 GHz | 1.25 |
| 87237P | 26.5 GHz<f≤33 GHz | 1.31 |
| 87237P | 33 GHz<f≤50 GHz | 1.48 |
| 87237P | 50 GHz<f≤67 GHz | 1.57 |
| 87237P | 67 GHz<f≤95 GHz | 1.67 |
| 87237P | 95 GHz<f≤110 GHz | 1.79 |
- ±0.16 dB applies only to the 87237D DC–8 GHz band under the stated conditions, not to every model and frequency.
- Stored calibration data and parameters do not remove periodic calibration requirements under a customer quality system.
- L/P VSWR specifications start at 100 kHz and are not extrapolated to DC–100 kHz. A DC measurement range does not imply the same VSWR specification at DC.
- Test/calibration services are model-specific options. For 87237P, a calibration report is offered below 67 GHz and a test report for 67–110 GHz; these are different documents.
Options and quotation
English labels, manuals and software are model-specific -H12 options. Calibration reports and extended-warranty services are quoted separately, not assumed included. Specify model, signal type, power range, connector needs, accessories and quantity. Scope of supply and delivery schedule are defined in the quotation.
