YC-TI-SA-0010 | 82407 Series Spectrum Analyzer Extension Modules
Price on request
Request a quote82407 extension modules work with compatible 4051, 4052 and 4082 series spectrum analyzer hosts for millimeter-wave and higher-frequency spectrum measurements. The 12 module configurations collectively cover 50–1100 GHz; each module covers the band shown below. Signal identification is supported. An intelligent USB interface enables automatic module identification and configuration of frequency-band and conversion-loss information.
Model selection and performance
| Model | Frequency range | Mixing factor | Conversion loss | DANL | RF input damage limit | Input waveguide |
|---|---|---|---|---|---|---|
| 82407NA | 50–75 GHz | 6 | ≤12 dB | ≤-150 dBm/Hz | 10 dBm | WR15 |
| 82407NC | 60–90 GHz | 6 | ≤12 dB | ≤-150 dBm/Hz | 10 dBm | WR12 |
| 82407PA | 75–110 GHz | 9 | ≤12 dB | ≤-150 dBm/Hz | 10 dBm | WR10 |
| 82407QA | 90–140 GHz | 9 | ≤14 dB | ≤-150 dBm/Hz | 10 dBm | WR8.0 |
| 82407QB | 110–170 GHz | 12 | ≤14 dB | ≤-150 dBm/Hz | 10 dBm | WR6.5 |
| 82407RA | 140–220 GHz | 18 | ≤16 dB | ≤-150 dBm/Hz | 10 dBm | WR5.1 |
| 82407SA | 170–260 GHz | 18 | ≤18 dB | ≤-150 dBm/Hz | 10 dBm | WR4.3 |
| 82407S | 220–325 GHz | 24 | ≤20 dB | ≤-150 dBm/Hz | 10 dBm | WR3.4 |
| 82407TA | 260–400 GHz | 24 | ≤20 dB | ≤-150 dBm/Hz | 10 dBm | WR2.8 |
| 82407R | 325–500 GHz | 36 | ≤30 dB | ≤-140 dBm/Hz | 5 dBm | WR2.2 |
| 82407U | 500–750 GHz | 48 | ≤30 dB | ≤-135 dBm/Hz | 5 dBm | WR1.5 |
| 82407V | 750–1100 GHz | 72 | ≤45 dB | ≤-120 dBm/Hz | 5 dBm | WR1.0 |
Common specifications
| Parameter | Specification |
|---|---|
| Compatible hosts | 4051 / 4052 / 4082 series spectrum analyzers; match the host configuration |
| Host information interface | Intelligent USB; automatic module identification and frequency-band/conversion-loss configuration |
| Signal identification | Supported |
| Local oscillator power range | 8–12 dBm |
| Local oscillator connector | 3.5 mm (female) |
| IF connector | 3.5 mm (female) |
| Power input | 12 V adapter |
| Power consumption | ≤30 W |
| Weight | ≤5.0 kg |
| Dimensions, W × H × D (excluding handle, feet and connectors) | (120.0±0.8) × (85.0±0.8) × (240.0±1.2) mm |
| Dimensions, W × H × D (including handle, feet and connectors) | (138±2.5) × (140.0±2.5) × (255.5±2.5) mm |
Standard accessories
| Accessory | Quantity | Details |
|---|---|---|
| Power cord | 1 | Standard three-core power cord |
| User manual | 1 | One printed manual or electronic file |
| USB cable | 1 | Host/module information exchange |
| Product certificate | 1 | Factory product certificate |
| Power adapter | 1 | 12 V DC output |
| Aluminium-alloy case | 1 | Module carrying case |
Optional connection cables
| Option code | Cable assembly | Quantity | Application |
|---|---|---|---|
| 82407-H04 | 2.4/3.5-JJ cable assembly | 1 | External frequency-extension connection cable |
| 82407-H05 | SMA/SMA-JJ cable assembly | 1 | External frequency-extension connection cable |
Selection and use
- Select the module for your required frequency band and provide the host model, interfaces and signal requirements so the module and cables can be matched.
- This product is an extension module, not a standalone spectrum analyzer. Inclusion of a host instrument or optional cables is subject to the quotation and ordered configuration.
- The RF input damage limit is an input-protection limit, not a recommended operating level. Check signal levels and protective measures before use.

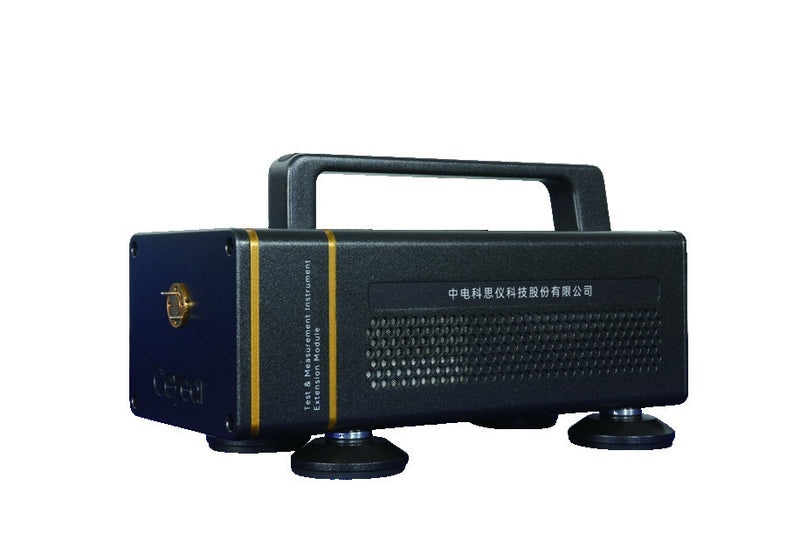

- The photo illustrates the module appearance. Interfaces and supplied configuration depend on the selected frequency band and confirmed order.
