YC-TI-CONV-0002 | 80704A/80705A/80719/80720 Series Frequency Converters
Price on request
Request a quoteProduct overview
Eight Ceyear up/downconverter models cover specific RF bands within 2.0-31 GHz, with 70 MHz or 70/140 MHz IF configurations, adjustable gain and 1 Hz frequency steps for test-system integration.
Compact, programmable and modular converters provide model-specific upconversion or downconversion. IF/RF bands, connectors and customization depend on the selected model and order.

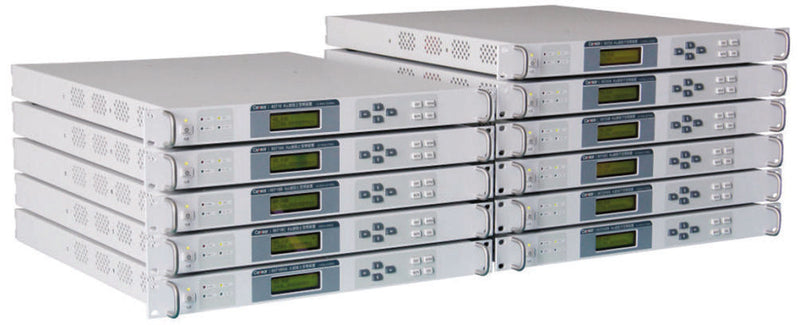

The image shows representative series appearances. Connectors, accessories and appearance depend on the selected configuration; the group image is not the delivery quantity.
Model and frequency selection
| Manufacturer model | Type | Input frequency | Output frequency | RF connector (50 Ω) |
|---|---|---|---|---|
| 80704A | Upconversion | 70 MHz ±20 MHz | 2.0-2.4 GHz | N female |
| 80719 | Upconversion | 70 MHz ±20 MHz / 140 MHz ±40 MHz | 13.7-14.5 GHz | SMA female |
| 80719A | Upconversion | 70 MHz ±20 MHz / 140 MHz ±40 MHz | 29.7-31 GHz | 2.92 mm female |
| 80719B | Upconversion | 70 MHz ±20 MHz / 140 MHz ±40 MHz | 25.3-26.3 GHz | 2.92 mm female |
| 80705A | Downconversion | 2.0-2.4 GHz | 70 MHz ±20 MHz | N female |
| 80720 | Downconversion | 11.7-12.5 GHz | 70 MHz ±20 MHz / 140 MHz ±40 MHz | SMA female |
| 80720A | Downconversion | 19.7-21.2 GHz | 70 MHz ±20 MHz / 140 MHz ±40 MHz | 2.92 mm female |
| 80720B | Downconversion | 25.3-26.3 GHz | 70 MHz ±20 MHz / 140 MHz ±40 MHz | 2.92 mm female |
Upconverter specifications
| Parameter | 80704A | 80719 | 80719A | 80719B |
|---|---|---|---|---|
| Input frequency range | 70 MHz ±20 MHz | 70 MHz ±20 MHz / 140 MHz ±40 MHz | 70 MHz ±20 MHz / 140 MHz ±40 MHz | 70 MHz ±20 MHz / 140 MHz ±40 MHz |
| Output frequency range | 2.0-2.4 GHz | 13.7-14.5 GHz | 29.7-31 GHz | 25.3-26.3 GHz |
| Output power (P-1dB) | ≥10 dBm | ≥10 dBm | ≥10 dBm | ≥10 dBm |
| Output third-order intercept | ≥20 dBm | ≥20 dBm | ≥20 dBm | ≥20 dBm |
| Adjustable gain and step | 0-30 dB, step 0.1 dB | 10-40 dB, step 0.1 dB | 10-40 dB, step 0.1 dB | 10-40 dB, step 0.1 dB |
| Amplitude flatness (±20 MHz) | ≤1.0 dB p.t.p. | ≤1.2 dB p.t.p. | ≤1.2 dB p.t.p. | ≤1.2 dB p.t.p. |
| Amplitude flatness (full RF band) | ≤3.0 dB p.t.p. (output band) | ≤3.0 dB p.t.p. (output band) | ≤3.0 dB p.t.p. (output band) | ≤3.0 dB p.t.p. (output band) |
| Group-delay distortion | ≤2 ns (±5 MHz); ≤5 ns (±20 MHz) | ≤2 ns (±5 MHz); ≤5 ns (±20 MHz) | ≤2 ns (±5 MHz); ≤5 ns (±20 MHz) | ≤2 ns (±5 MHz); ≤5 ns (±20 MHz) |
| Gain accuracy | ±1.0 dB | ±1.5 dB | ±1.5 dB | ±1.5 dB |
| Frequency setting step | 1 Hz | 1 Hz | 1 Hz | 1 Hz |
| Noise figure (maximum gain) | ≤20 dB | ≤18 dB | ≤18 dB | ≤18 dB |
| Image rejection | ≥75 dB | ≥80 dB | ≥80 dB | ≥80 dB |
| In-band spurious response | ≤-60 dBc (0 dBm output, offsets of 1 kHz and beyond) | ≤-60 dBc (0 dBm output, offsets of 1 kHz and beyond) | ≤-60 dBc (0 dBm output, offsets of 1 kHz and beyond) | ≤-60 dBc (0 dBm output, offsets of 1 kHz and beyond) |
| Phase noise (1 kHz offset) | ≤-85 dBc/Hz | ≤-80 dBc/Hz | ≤-80 dBc/Hz | ≤-80 dBc/Hz |
| Phase noise (10 kHz offset) | ≤-95 dBc/Hz | ≤-90 dBc/Hz | ≤-90 dBc/Hz | ≤-90 dBc/Hz |
| Phase noise (100 kHz offset) | ≤-100 dBc/Hz | ≤-95 dBc/Hz | ≤-95 dBc/Hz | ≤-95 dBc/Hz |
Downconverter specifications
| Parameter | 80705A | 80720 | 80720A | 80720B |
|---|---|---|---|---|
| Input frequency range | 2.0-2.4 GHz | 11.7-12.5 GHz | 19.7-21.2 GHz | 25.3-26.3 GHz |
| Output frequency range | 70 MHz ±20 MHz | 70 MHz ±20 MHz / 140 MHz ±40 MHz | 70 MHz ±20 MHz / 140 MHz ±40 MHz | 70 MHz ±20 MHz / 140 MHz ±40 MHz |
| Output power (P-1dB) | ≥10 dBm | ≥15 dBm | ≥15 dBm | ≥15 dBm |
| Output third-order intercept | ≥20 dBm | ≥25 dBm | ≥25 dBm | ≥25 dBm |
| Adjustable gain and step | 20-40 dB, step 0.1 dB | 20-50 dB, step 0.1 dB | 20-50 dB, step 0.1 dB | 20-50 dB, step 0.1 dB |
| Amplitude flatness (±20 MHz) | ≤1.0 dB p.t.p. | ≤1.2 dB p.t.p. | ≤1.2 dB p.t.p. | ≤1.2 dB p.t.p. |
| Amplitude flatness (full RF band) | ≤3.0 dB p.t.p. (input band) | ≤3.0 dB p.t.p. (input band) | ≤3.0 dB p.t.p. (input band) | ≤3.0 dB p.t.p. (input band) |
| Group-delay distortion | ≤2 ns (±5 MHz); ≤5 ns (±20 MHz) | ≤2 ns (±5 MHz); ≤5 ns (±20 MHz) | ≤2 ns (±5 MHz); ≤5 ns (±20 MHz) | ≤2 ns (±5 MHz); ≤5 ns (±20 MHz) |
| Gain accuracy | ±1.0 dB | ±1.5 dB | ±1.5 dB | ±1.5 dB |
| Frequency setting step | 1 Hz | 1 Hz | 1 Hz | 1 Hz |
| Noise figure (maximum gain) | ≤17 dB | ≤12 dB | ≤12 dB | ≤12 dB |
| Image rejection | ≥75 dB | ≥80 dB | ≥80 dB | ≥80 dB |
| In-band spurious response | ≤-60 dBc (0 dBm output, offsets of 1 kHz and beyond) | ≤-60 dBc (0 dBm output, offsets of 1 kHz and beyond) | ≤-60 dBc (0 dBm output, offsets of 1 kHz and beyond) | ≤-60 dBc (0 dBm output, offsets of 1 kHz and beyond) |
| Phase noise (1 kHz offset) | ≤-85 dBc/Hz | ≤-80 dBc/Hz | ≤-80 dBc/Hz | ≤-80 dBc/Hz |
| Phase noise (10 kHz offset) | ≤-95 dBc/Hz | ≤-90 dBc/Hz | ≤-90 dBc/Hz | ≤-90 dBc/Hz |
| Phase noise (100 kHz offset) | ≤-100 dBc/Hz | ≤-95 dBc/Hz | ≤-95 dBc/Hz | ≤-95 dBc/Hz |
General specifications and connectors
| Parameter | Specification |
|---|---|
| Power supply | 200-240 VAC, automatic 50/60 Hz |
| Power consumption | ≤65 W |
| Operating temperature | 0 °C to +50 °C |
| Storage temperature | -40 °C to +70 °C |
| Overall dimensions (W×H×D) | (482.6±4.0) × (54.0±2.0) × (550.0±4.0) mm |
| Nominal dimensions (W×H×D) | (482.6±4.0) × (44.4±2.0) × (510.0±4.0) mm, excluding handles and feet |
| Connector impedance | 50 Ω |
| IF connector | BNC female |
| RF connectors | Below 6 GHz: N female; 6-18 GHz: SMA female; above 18 GHz: 2.92 mm female |
| Weight | <10 kg, depending on frequency configuration |
| Manufacturer environmental specification | GJB3947A-2009, class 3 equipment requirements |
| Manufacturer safety requirements | GJB3947A-2009, section 3.10 |
Included accessories and documentation
| Item | Description |
|---|---|
| Power-cord assembly | Included accessory |
| User manual | Included documentation |
| Factory product quality document | Included document; not a metrology calibration certificate |
Selection and ordering notes
- Each model covers only its listed RF band, not continuous 2.0-31 GHz coverage in one unit. 70 MHz ±20 MHz / 140 MHz ±40 MHz denotes alternative IF configurations; confirm when ordering.
- Use gain, noise figure and flatness with their maximum-gain, ±20 MHz or full input/output-band conditions. p.t.p. means peak-to-peak.
- Phase noise is specified separately at 1 kHz, 10 kHz and 100 kHz offsets. In-band spurious response applies at 0 dBm output with offsets of 1 kHz and beyond.
- Manufacturer environmental and safety clauses are product specifications, not a claim of separate Shanghai Yanchuan certification. The factory quality document is not a metrology calibration certificate.
- For a quotation, specify manufacturer model, conversion direction, input/output bands, IF configuration, quantity and integration needs. Lead time and customization require configuration review.
