YC-TI-VNA-0007 | 6956 Series Vector Network Analyzer
Price on request

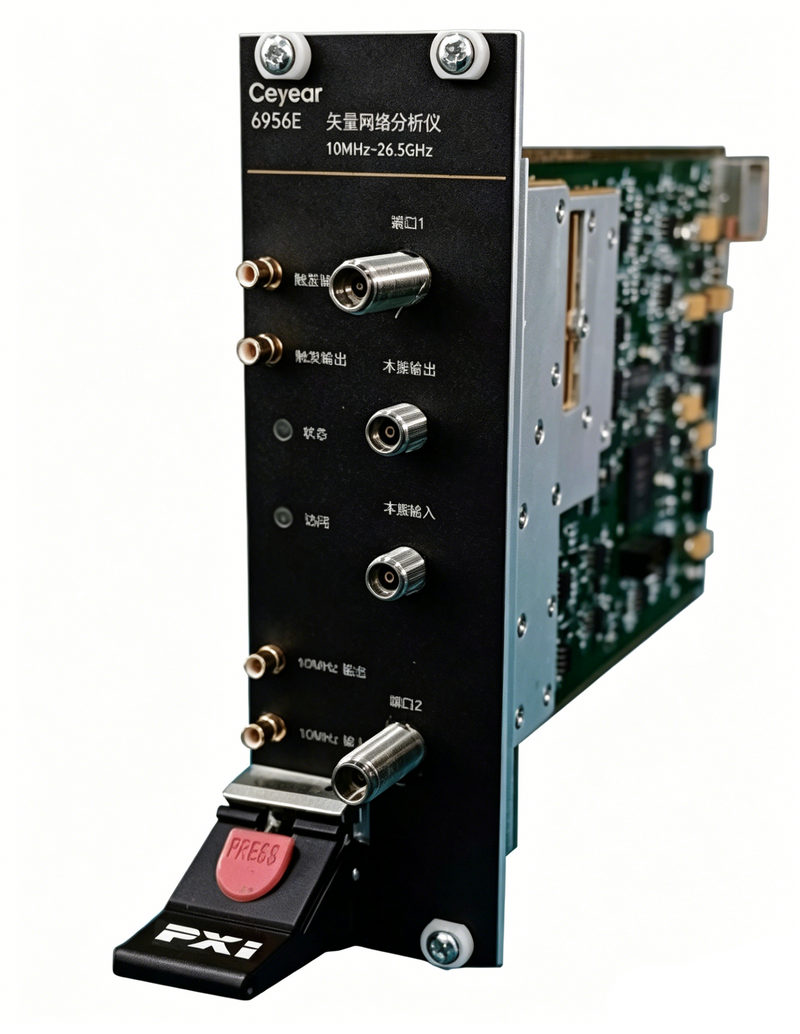

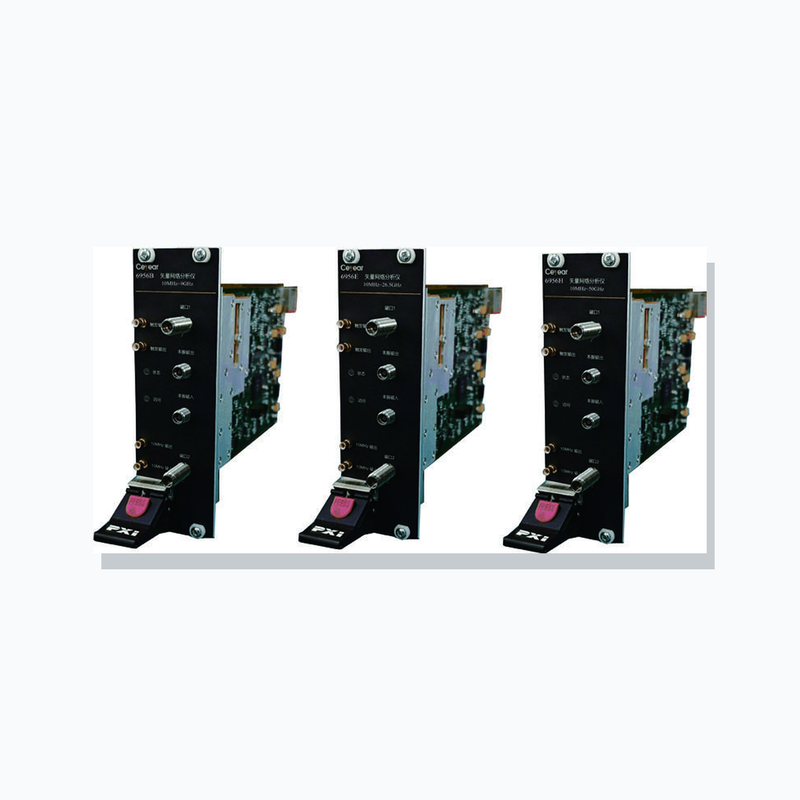

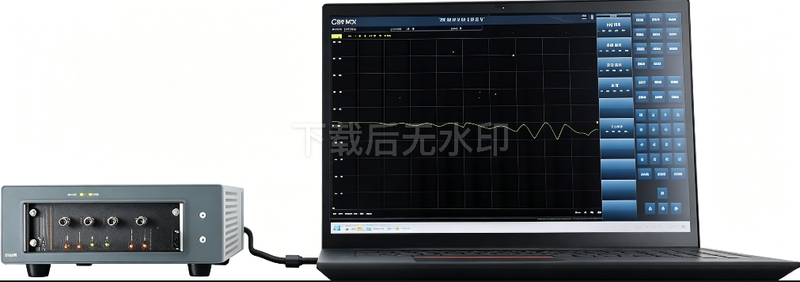

Request a quoteThe Ceyear 6956 series comprises PXIe modular vector network analyzers for S-parameter testing of RF devices, cables and multiport assemblies. Depending on the manufacturer model, the frequency range extends from 10 MHz up to 9–60 GHz. Test ports can be expanded through a configured system.
Manufacturer models and frequency range
| Manufacturer model | Frequency range |
|---|---|
| 6956B | 10 MHz–9 GHz |
| 6956D | 10 MHz–20 GHz |
| 6956E | 10 MHz–26.5 GHz |
| 6956G | 10 MHz–43.5 GHz |
| 6956H | 10 MHz–50 GHz |
| 6956K | 10 MHz–60 GHz |
Series specifications
| Module form | 3U, 2-slot PXIe module |
|---|---|
| Frequency resolution | 1 Hz |
| IF bandwidth | 10 Hz–1.0 MHz (1-2-5-10) |
| Measurement modes | Single-ended S-parameters, balanced S-parameters, receiver parameters |
| Port expansion | Optional expansion, up to 32 test ports |
Configuration and ordering

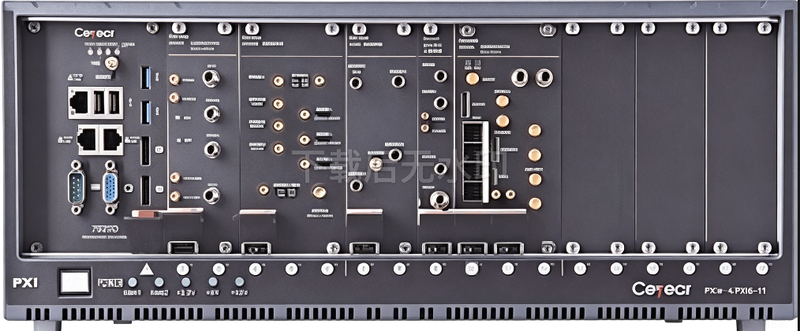

Electronic calibration, port expansion, chassis, controller, calibration kits and test cables are selected as options and are not included with the base module by default. Specify the target frequency range, port count and application to confirm the manufacturer model and accessories.
The Yanchuan web model is an inquiry reference; supply follows the manufacturer model, final configuration and written quotation.
