YC-TI-TRX-0001 | 6955 Series Signal Transceiver
Price on request
Request a quoteProduct overview
Ceyear 6955 PXIe signal transceivers combine signal analysis and generation. The 6955AC covers 40 MHz–6 GHz; 6955BA/C/E configurations offer frequency coverage up to 26.5 GHz and signal bandwidth up to 1 GHz, for modular RF testing and system integration.
Key functions
- Spectrum analysis, vector signal analysis, multitone generation, arbitrary waveform generation and pulse-modulated signal generation.
- System integration using Qt, LabWindows and Microsoft Visual Studio; digital I/O, programmable I/O and trigger channels.
- High-speed IQ data transfer interface for data streaming to storage.
Core specifications
| Parameter | 6955BA/C/E | 6955AC |
|---|---|---|
| Frequency range | 40 MHz–8 / 12 / 26.5 GHz | 40 MHz–6 GHz |
| Maximum signal bandwidth | Up to 1 GHz, depending on option and carrier frequency; see below | Up to 200 MHz, depending on option and carrier frequency; see below |
| Internal reference clock | 10 MHz | 10 MHz |
| Frequency switching time | ≤500 μs | ≤0.75 ms; typical ≤0.38 ms |
| Maximum input power | ≥+26.0 dBm (40 MHz–26.5 GHz) | +15 dBm (<65 MHz); +30 dBm (65 MHz–6 GHz) |
| Power switching time | ≤40 μs (<0.1 dB from final setting) | — |
Detailed specifications
Bandwidth options and carrier-frequency conditions
| Configuration / option | Maximum bandwidth and carrier-frequency conditions |
|---|---|
| 6955BA/C/E — S04 | 40–375 MHz: 20% of carrier frequency; 375 MHz–26.5 GHz: 100 MHz |
| 6955BA/C/E — S05 | 40–375 MHz: 20% of carrier frequency; 375 MHz–26.5 GHz: 200 MHz |
| 6955BA/C/E — S06 | 40–375 MHz: 20% of carrier frequency; 375–550 MHz: 200 MHz; 550–750 MHz: 300 MHz; 750 MHz–1 GHz: 400 MHz; 1–26.5 GHz: 500 MHz |
| 6955BA/C/E — S07 | 40–375 MHz: 20% of carrier frequency; 375–550 MHz: 200 MHz; 550–750 MHz: 300 MHz; 750 MHz–1 GHz: 400 MHz; 1–1.5 GHz: 750 MHz; 1.5–26.5 GHz: 1 GHz |
| 6955AC — S04 | 40–65 MHz: <10 MHz; 65–120 MHz: 20 MHz; 120 MHz–6 GHz: 50 MHz |
| 6955AC — S05 | 40–65 MHz: <10 MHz; 65–120 MHz: 20 MHz; 120–600 MHz: 50 MHz; 600 MHz–6 GHz: 100 MHz |
| 6955AC — S06 | 40–65 MHz: <10 MHz; 65–120 MHz: 20 MHz; 120–600 MHz: 50 MHz; 600 MHz–6 GHz: 200 MHz |
Signal-analysis performance
| Parameter | 6955BA/C/E | 6955AC |
|---|---|---|
| SSB phase noise (20 kHz offset) | Specified, 6955BA/C+6955-H01 and 6955E: ≤−118 dBc/Hz (40 MHz–7.1 GHz); ≤−114 dBc/Hz (7.1–14.2 GHz); ≤−108 dBc/Hz (14.2–26.5 GHz). 6955BA/C: ≤−103 dBc/Hz (40 MHz–7.1 GHz); ≤−97 dBc/Hz (7.1–12 GHz). Typical, 6955BA/C+6955-H01 and 6955E: ≤−124 dBc/Hz @5 GHz; ≤−120 dBc/Hz @10 GHz; ≤−112 dBc/Hz @26.5 GHz. | Specified: ≤−96 dBc/Hz (65 MHz–3 GHz); ≤−93 dBc/Hz (3–6 GHz) Typical: ≤−102 dBc/Hz (65 MHz–3 GHz); ≤−96 dBc/Hz (3–6 GHz) |
| Absolute power accuracy (reference level −30…0 dBm; 23°C±5°C) | 40 MHz–5 GHz: ±1.0 dB; 5–8 GHz: ±1.2 dB; 8–12 GHz: ±1.4 dB; 12–18 GHz: ±1.8 dB; 18–21 GHz: ±2.0 dB; 21–26.5 GHz: ±2.4 dB | Specified: ±0.75 dB (65 MHz–4 GHz); ±0.95 dB (4–6 GHz) Typical: ±0.35 dB (65 MHz–4 GHz); ±0.40 dB (4–6 GHz) |
| Frequency response | 40 MHz–8 GHz: ±2.2 dB; 8–12 GHz: ±2.3 dB; 12–18 GHz: ±2.4 dB; 18–21 GHz: ±2.7 dB; 21–26.5 GHz: ±2.4 dB | Specified: ±1.05 dB (250 MHz–6 GHz) Typical: ±0.65 dB (250 MHz–6 GHz) |
| Displayed average noise level | Reference 0 dBm (specified): ≤−143 dBm/Hz (40 MHz–5 GHz); ≤−142 dBm/Hz (5–12 GHz); ≤−141 dBm/Hz (12–21 GHz); ≤−136 dBm/Hz (21–26.5 GHz). Reference −30 dBm (typical): ≤−163 dBm/Hz (40 MHz–5 GHz); ≤−162 dBm/Hz (5–12 GHz); ≤−160 dBm/Hz (12–21 GHz); ≤−154 dBm/Hz (21–26.5 GHz). | Reference −50 dBm: specified −156 dBm/Hz (65 MHz–6 GHz); typical −162 dBm/Hz (65 MHz–6 GHz). |
| Input TOI (reference 0 dBm; −6 dBm per tone; offsets +95/+105 MHz) | ≥20 dBm (40 MHz–8 GHz); ≥19 dBm (8–12 GHz); ≥20 dBm (12–18 GHz); ≥16 dBm (18–21 GHz); ≥15 dBm (21–26.5 GHz) | 19 dBm (65 MHz–1.5 GHz); 20 dBm (1.5–6 GHz) |
| Residual responses | ≤−74 dBm (40 MHz–8 GHz); ≤−75 dBm (8–12 GHz); ≤−73 dBm (12–18 GHz); ≤−78 dBm (18–21 GHz); ≤−74 dBm (21–26.5 GHz) | — |
| LO leakage (reference −30…+15 dBm; 23°C±5°C) | ≤−44 dBr (40 MHz–8 GHz); ≤−38 dBr (8–12 GHz); ≤−38 dBr (12–18 GHz); ≤−35 dBr (18–21 GHz); ≤−40 dBr (21–26.5 GHz) | — |
| Sideband-image suppression (reference −30…+15 dBm; 23°C±5°C) | ≤−39 dBc (40 MHz–8 GHz); ≤−42 dBc (8–12 GHz); ≤−41 dBc (12–18 GHz); ≤−44 dBc (18–21 GHz); ≤−43 dBc (21–26.5 GHz) | — |
Signal-generation performance
| Parameter | 6955BA/C/E | 6955AC |
|---|---|---|
| Maximum output power (analog signal) | +5 dBm (40–120 MHz); +17 dBm (120 MHz–8 GHz); +15 dBm (8–18 GHz); +10 dBm (18–21 GHz); +10 dBm (21–26.5 GHz) | 0 dBm (40–120 MHz); +18 dBm (120 MHz–4 GHz); +15 dBm (4–6 GHz) |
| Power resolution | Output attenuator ≤1 dB; digital attenuation ≤0.1 dB | Output attenuator typical 0.25 dB; digital attenuation 0.01 dB |
| Power switching time | ≤40 μs (<0.1 dB from final setting) | ≤600 μs (<0.5 dB from final setting) |
| Output power accuracy (reference −40…0 dBm; 23°C±5°C) | ±1.0 dB (40 MHz–5 GHz); ±1.2 dB (5–8 GHz); ±1.4 dB (8–12 GHz); ±1.8 dB (12–18 GHz); ±2.0 dB (18–21 GHz); ±2.1 dB (21–26.5 GHz) | Specified: ±0.90 dB (65 MHz–4 GHz); ±1.15 dB (4–6 GHz) Typical: ±0.35 dB (65 MHz–4 GHz); ±0.55 dB (4–6 GHz) |
| Frequency response (23°C±5°C) | ±1.40 dB (40 MHz–5 GHz); ±1.45 dB (5–12 GHz); ±1.70 dB (12–18 GHz); ±1.95 dB (18–21 GHz); ±2.80 dB (21–26.5 GHz) | Specified: ±2.2 dB (250 MHz–6 GHz) Typical: ±0.6 dB (250 MHz–6 GHz) |
| Third-order intermodulation (−7 dBm per tone) | ≤−56 dBc (40 MHz–8 GHz); ≤−57 dBc (8–12 GHz); ≤−55 dBc (12–18 GHz); ≤−54 dBc (18–21 GHz); ≤−45 dBc (21–26.5 GHz) | −60 dBc (65 MHz–1 GHz); −53 dBc (1–3 GHz); −50 dBc (3–5 GHz); −45 dBc (5–6 GHz) |
| Harmonics (output level 0 dBm) | ≤−32 dBc (40 MHz–8 GHz); ≤−34 dBc (8–12 GHz); ≤−34 dBc (12–18 GHz); ≤−48 dBc (18–26.5 GHz) | Specified: −30 dBc (40 MHz–4.1 GHz); −40 dBc (4.1–6 GHz) Typical: −35 dBc (40 MHz–4.1 GHz); −45 dBc (4.1–6 GHz) |
| LO leakage (reference −30…0 dBm; 23°C±5°C) | ≤−47 dBr (40 MHz–8 GHz); ≤−36 dBr (8–12 GHz); ≤−36 dBr (12–18 GHz); ≤−35 dBr (18–21 GHz); ≤−34 dBr (21–26.5 GHz) | −45 dBc (65–375 MHz); −50 dBc (375 MHz–5 GHz); −48 dBc (5–6 GHz) |
| Sideband-image suppression (reference −30…0 dBm; 23°C±5°C) | ≤−34 dBc (40 MHz–8 GHz); ≤−41 dBc (8–12 GHz); ≤−46 dBc (12–18 GHz); ≤−41 dBc (18–21 GHz); ≤−41 dBc (21–26.5 GHz) | −40 dBc (65–500 MHz); −54 dBc (500 MHz–2 GHz); −50 dBc (2–6 GHz) |
| WLAN 802.11ax EVM (5.1–7.2 GHz; output −10 dBm; RF input/output directly connected) | 6955BA/C: ≤−40 dB (80 MHz); ≤−37 dB (160 MHz). 6955BA/C+6955-H01 and 6955E: ≤−50 dB (80 MHz); ≤−47 dB (160 MHz). | ≤−40 dB (80 MHz); ≤−37 dB (160 MHz) |
| 5G NR EVM (output −10 dBm; RF input/output directly connected) | 6955BA/C: ≤−34 dB (5–8 GHz, 1×400 MHz); ≤−33 dB (8–12 GHz, 1×400 MHz). 6955BA/C+6955-H01 and 6955E: ≤−43 dB (5–8 GHz, 1×400 MHz); ≤−43 dB (8–12 GHz, 1×400 MHz); ≤−41 dB (12–18 GHz, 1×400 MHz); ≤−41 dB (18–21 GHz, 1×400 MHz); ≤−39 dB (21–26.5 GHz, 1×100 MHz). | — |
Mechanical, environmental and power specifications
| Parameter | 6955BA/C/E | 6955AC |
|---|---|---|
| Construction | 6955BA/C: 3U, 2 slots; 6955BA/C+6955-H01: 3U, 3 slots; 6955E: 3U, 4 slots; PXIe modules | 3U, 2-slot PXIe module |
| Dimensions (W×H×D) | 6955BA/C: (41.0±1.5)×(130.5±2.5)×(211.0±2.5) mm; 6955BA/C+6955-H01: (61.0±1.5)×(130.5±2.5)×(211.0±2.5) mm; 6955E: (81.4±1.5)×(130.5±2.5)×(211.0±2.5) mm | (40.8±0.5)×(130.5±2)×(211±2) mm |
| Weight | 6955BA/C: ≤1.5 kg; 6955BA/C+6955-H01: ≤2.5 kg; 6955E: ≤3.0 kg | ≤1.5 kg |
| Operating temperature | 0…+50°C | 0…+50°C |
| Storage temperature | −40…+70°C | −40…+70°C |
| Power supply | Powered by PXIe chassis | Powered by PXIe chassis |
| Power consumption | 6955BA/C: ≤90 W; 6955BA/C+6955-H01: ≤120 W; 6955E: ≤160 W | ≤80 W |
| Test ports | RF input: 3.5 mm female; RF output: 3.5 mm female | RF input: 3.5 mm female; RF output: 3.5 mm female |
Additional interfaces by configuration
| Configuration | Interfaces |
|---|---|
| 6955BA/C | Reference input, reference output, programmable I/O, LO0 input/output and LO input/output: MMPX female. Digital I/O: Molex Nano-Pitch I/O. JTAG: Micro-USB Type-B female. |
| 6955BA/C+6955-H01 | Reference output, programmable I/O and LO0/LO1 outputs: MMPX female. LO0/LO1 inputs and reference input: SMA female. Digital I/O: Molex Nano-Pitch I/O. JTAG: Micro-USB Type-B female. |
| 6955E | Programmable I/O, LO0/LO1 outputs, LO0/LO1 inputs, reference input and reference output: SMA female. Pulse input/output: SMB female. Digital I/O and control: Molex Nano-Pitch I/O. MGT: iPass+. JTAG: Micro-USB Type-B female. |
| 6955AC | Reference input, reference output and PFI: SMA female. Digital I/O: VHDCI. LO input and output: MMPX female. |
Application and selection notes
Frequency, bandwidth and performance depend on the module and options. Each specification applies only to its listed frequency range and test conditions. PXIe modules require a compatible chassis, controller and software.
WLAN and 5G NR EVM figures apply to the listed bandwidths with RF input and output directly connected, not to every configuration or frequency.

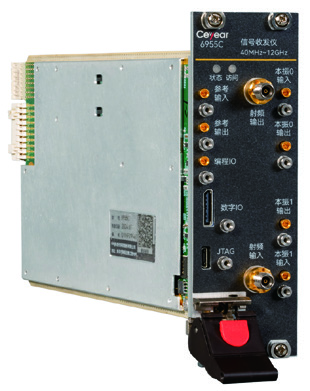

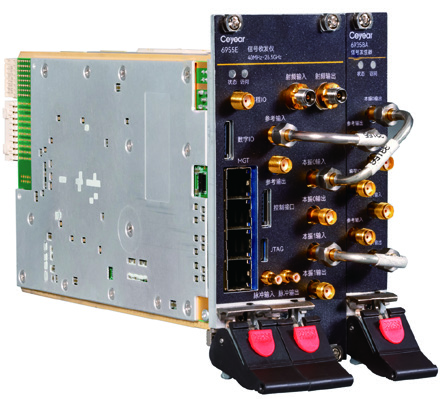

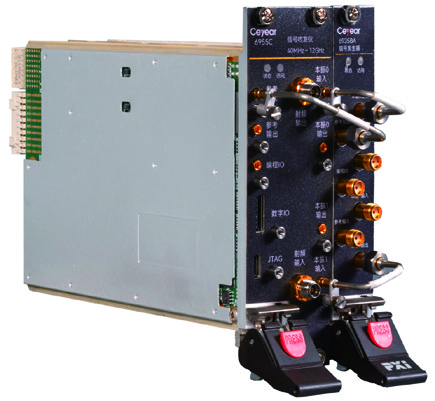

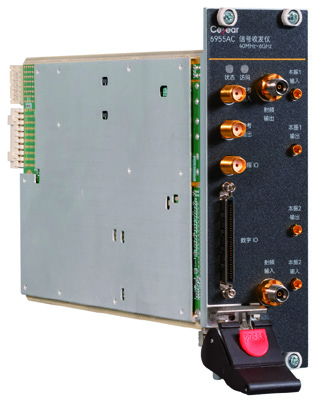

Product images show configuration examples of 6955BA/C, 6955AC, 6955BA/C+6955-H01 and 6955E, in that order. Modules and options are configured according to the quotation.
Ordering and delivery
Typical MOQ is 1 unit; supply scope, chassis and delivery are subject to the formal quotation.
