YC-TI-FS-0001 | 6481 Series Fibre Fusion Splicer (A/B Configurations)
Price on request
Request a quoteProduct overview
The 6481 series splices standard fibres, drop cables and patch cords. The six-motor 6481A supports precision core, cladding and manual alignment; the four-motor 6481B supports cladding and manual alignment. Ceramic V-grooves, multifunction clamps, a 4.3-inch LCD and a graphical interface support fibre-network installation and maintenance.
Key features
- Supports splicing fibres with a 5 mm short cleave length.
- Ceramic V-grooves and multifunction clamps for standard fibres, drop cables and patch cords.
- Graphical interface and touchscreen; USB and SD interfaces, with software upgrades via USB drive.
- 300 splice modes and 100 heating modes; record capacity differs between A/B models.
- Supports bidirectional and automatic splicing and intelligent sleeve heating, with automatic heating after the sleeve is placed in the heater.
- Built-in removable lithium battery supports at least 220 splice-and-heat cycles per charge.
Core specifications
| Parameter | 6481A | 6481B |
|---|---|---|
| Motor count | 6 | 4 |
| Alignment method | Precision core, cladding and manual alignment | Cladding and manual alignment |
| Supported fibres | ITU-T G.651–653, G.655, G.657; standard fibres, drop cables and patch cords | ITU-T G.651–653, G.655, G.657; standard fibres, drop cables and patch cords |
| Fibre diameters | Cladding: 80–150 μm; coating: 0.1–3 mm | Cladding: 80–150 μm; coating: 0.1–3 mm |
| Splice loss (typical) | SMF: 0.02 dB; MMF: 0.01 dB; DSF: 0.04 dB; NZDSF: 0.04 dB | SMF: 0.03 dB; MMF: 0.02 dB; DSF: 0.05 dB; NZDSF: 0.05 dB |
| Splice time (typical) | 7 s (fast mode) | 7 s (fast mode) |
| Heating time | ≤15 s; 40 mm thin heat-shrink sleeve, 23 °C | ≤15 s; 40 mm thin heat-shrink sleeve, 23 °C |
| Tension test | 1.96–2.25 N | 1.96–2.25 N |
| Heat-shrink sleeves | 60 mm, 40 mm and a range of heat-shrink sleeves | 60 mm, 40 mm and a range of heat-shrink sleeves |
| Display | 4.3-inch LCD | 4.3-inch LCD |
| Splice records | 30000 records; 200 images | 30000 records |
| Maximum power consumption | 80 W | 80 W |
| Battery capacity | ≥5200 mAh | ≥5200 mAh |
| Battery service life | 300–500 recharge cycles; user-replaceable | 300–500 recharge cycles; user-replaceable |
| Electrode life (typical) | 3000 cycles; user-replaceable | 3000 cycles; user-replaceable |
| Work illumination | Built-in high-brightness, wide-area lamp | Built-in high-brightness, wide-area lamp |
| Operating environment | Temperature: −10–50 °C; humidity: 0–95% RH; altitude: 0–6000 m | Temperature: −10–50 °C; humidity: 0–95% RH; altitude: 0–6000 m |
| User interface | Graphical user interface (GUI) | Graphical user interface (GUI) |
| External power supply | AC: 100–240 V, 50/60 Hz, 0–1.5 A; DC: 10–15 V | AC: 100–240 V, 50/60 Hz, 0–1.5 A; DC: 10–15 V |
| External interfaces | USB / SD | USB / SD |
| Dimensions (W × H × D) | (120±3) × (130±3) × (154±3) mm; excluding rubber shock-absorbing pads | (120±3) × (130±3) × (154±3) mm; excluding rubber shock-absorbing pads |
| Weight | Without battery: (1.8±0.1) kg; with battery: (2.1±0.1) kg | Without battery: (1.65±0.1) kg; with battery: (1.95±0.1) kg |
Main-unit configurations
| Main-unit model | Description |
|---|---|
| 6481A | Six motors; precision core, cladding and manual alignment |
| 6481B | Four motors; cladding and manual alignment |
Tools and accessories
Companion tools
| Item |
|---|
| Fibre cleaver |
| Drop-cable stripper |
| Miller stripper |
| Spare electrodes |
| Cooling tray |
| Cleaning kit |
| Carry case |
| Alcohol bottle |
Accessories
| Item |
|---|
| Power-cord assembly |
| User manual |
Functional options
| Option model | Item |
|---|---|
| 6481-001 | USB drive |
| 6481-002 | Lithium battery |
| 6481-003 | Cigarette-lighter power cable |
| 6481-004 | Charging cradle |
| 6481-074 | IoT module |
| 6481-079 | GPS module |
| 6481-080 | Optical power meter / visible fault locator module |
Additional information

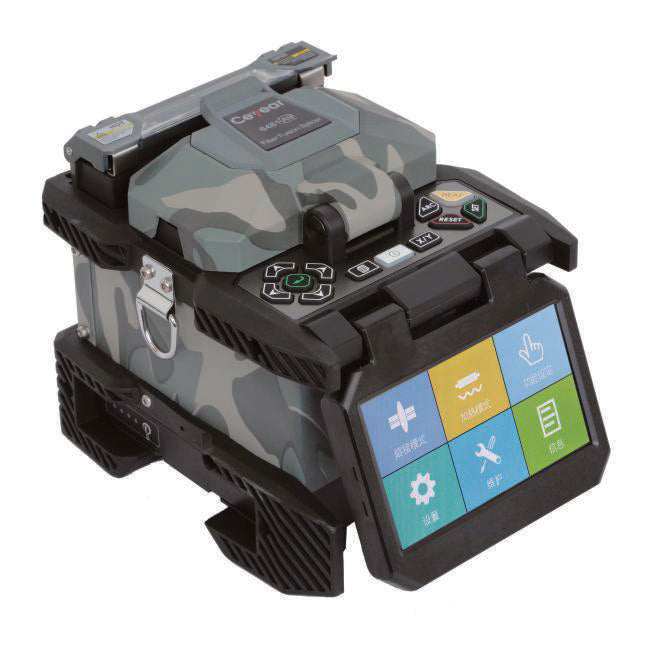

Select a 6481A or 6481B main unit; specifications of different models are not combined. Select functional options as needed; the supplied items are agreed for the chosen configuration and quotation. The photo shows a representative series configuration. Typical splice losses and times are not guaranteed for every fibre condition. Price and delivery depend on the quoted configuration.
