YC-TI-OWM-0001 | 6371A Optical Wavelength Meter
Price on request
Request a quoteThe 6371A uses Fizeau interferometry and a solid-state optical unit with no moving parts to measure wavelengths from 1250 to 1650 nm. Wavelength accuracy is ±0.7 ppm and maximum measurement rate is 1 kHz. External triggering and wavelength-drift measurement support testing of lasers, optical transceivers and photonic chips, and calibration of iTLA, DFB and tunable lasers.
Wavelength specifications
| Parameter | Value |
|---|---|
| Manufacturer model | 6371A |
| Wavelength range | 1250–1650 nm |
| Wavelength accuracy | ±0.7 ppm (±1 pm @ 1550 nm) |
| Minimum display resolution | 0.1 pm |
Power specifications
| Parameter | Value |
|---|---|
| Power accuracy | ±0.5 dB |
| Power linearity | ±0.5 dB |
| Power display resolution | 0.01 dB |
| Maximum displayed power | 10 dBm |
| Maximum safe input power | 18 dBm |
| Return loss | 35 dB |
Measurement rate and sensitivity
| Measurement rate | Sensitivity |
|---|---|
| 1 kHz | −25 dBm |
| 500 Hz | −30 dBm |
| 250 Hz | −35 dBm |
| 100 Hz | −40 dBm |
Instrument specifications
| Parameter | Value |
|---|---|
| Maximum measurement rate | 1 kHz |
| Optical connector | FC/APC |
| Operating temperature and humidity | 15–30 °C; 75% relative humidity, non-condensing |
| Operating pressure | 500–900 mmHg |
| Dimensions (W × H × D) | (426±4.0) × (98.5±1.5) × (426.5±4.0) mm |
| Weight | ≤12 kg |
Standard accessories
| Accessory | Quantity | Description |
|---|---|---|
| Power cord assembly | 1 | Standard three-core power cord |
| User manual | 1 | — |
| Product certificate | 1 | — |
Notes
Sensitivity varies with measurement rate. Specify wavelength range, input optical power and sampling rate when selecting the instrument.
Maximum displayed power and maximum safe input power are different specifications; 18 dBm is not the upper display limit.

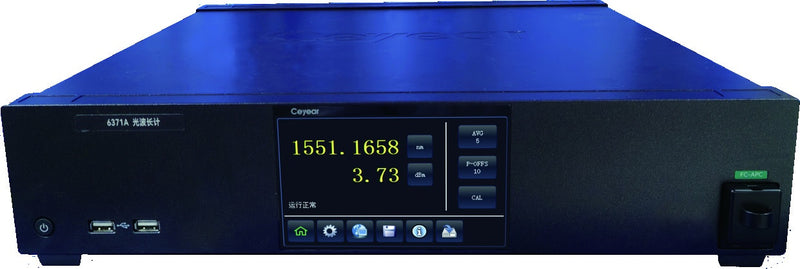

The photograph shows the 6371A instrument. Order configuration, accessories, delivery and pricing are confirmed with the quotation.
