The 6337D is a dual-channel modular optical power meter supporting simultaneous measurement with two power-meter modules. The optional 74601A-1133 and 74601A-1132 InGaAs modules cover 800–1700 nm, with power ranges of −90 to +10 dBm and −50 to +26 dBm respectively under CW operation at 1000–1630 nm. LAN, RS232C and USB interfaces support testing and calibration of optical communication components, fiber cables and optical sources.
Mainframe specifications
| Parameter | Value |
|---|
| Mainframe model | 6337D |
| Modules / channels | Two power-meter modules / simultaneous dual-channel measurement |
| Display | 3.5 inches |
| Function keys | Yes |
| Communication interfaces | LAN / RS232C / USB |
| Power supply | 220 VAC ±10%, 50 Hz ±5% |
| Maximum consumption | 15 W |
| Mainframe dimensions (W × H × D) | (213±5) × (88±5) × (350±5) mm, excluding handle and feet |
| Mainframe weight | (3±0.5) kg, excluding optional modules |
Optional module comparison
| Parameter | 74601A-1133 | 74601A-1132 |
|---|
| Detector | InGaAs | InGaAs |
| Fiber compatibility | Standard SM / MM | Standard SM / MM |
| Wavelength range | 800–1700 nm | 800–1700 nm |
| Calibration wavelengths | 850 / 1260 / 1310 / 1490 / 1550 / 1650 nm | 850 / 1260 / 1310 / 1490 / 1550 / 1650 nm |
| Power range¹ | −90 to +10 dBm | −50 to +26 dBm |
| Accuracy | ±3.5% ±5 pW | ±3.5% ±5 pW |
| Linearity² | <±0.02 dB at 23°C ±5°C; <±0.05 dB at other operating temperatures | <±0.05 dB |
| Maximum safe input power | 16 dBm | 27 dBm |
| Averaging time | 4 µs to 4 s | 4 µs to 4 s |
| Analog output | 0–5 V | 0–5 V |
| Optical connector | FC | FC |
| Module dimensions (W × H × D) | (28±5) × (75±5) × (305±5) mm | (28±5) × (75±5) × (305±5) mm |
| Module weight | (0.25±0.04) kg | (0.25±0.04) kg |
Environmental conditions
| Parameter | Value |
|---|
| Operating temperature (mainframe and modules) | 0–40 °C |
| Storage temperature (mainframe and modules) | −40–70 °C |
| Relative humidity (mainframe and modules) | 5–90%, non-condensing |
Standard accessories
| Accessory | Quantity | Description |
|---|
| Power cord | 1 | Standard three-core cord |
| User manual | 1 | Supplied with the product |
| Product certificate | 1 | Supplied with the product |
Configuration and operating notes
- ¹ Module power ranges apply to continuous-wave (CW) input at 1000–1630 nm, not automatically to the entire 800–1700 nm band.
- ² Linearity conditions: CW, −60 to +10 dBm, 1000–1630 nm. These values do not cover the entire power range.
- Other calibration wavelengths can be configured on request. Set the measurement wavelength to match the center wavelength of the optical source.

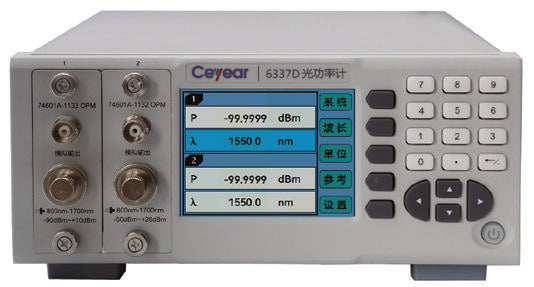

- The product photograph illustrates a mainframe with installed modules. Power-meter modules are optional; confirm models, quantity and lead time when requesting a quotation.
- Specify the wavelength, power range, fiber type, number of modules, communication interface and application when requesting a quotation.
