Product overview
5258A is a compact frequency scanner for base-station deployment, network optimisation and coverage investigation. Its standard RF range is 9 kHz–6.3 GHz. Configured functions include base-station scanning, spectrum clearance, coverage tests, base-station positioning and interference analysis. It supports 5G NR, LTE and other selected radio technologies, with remote control for public, private and rail communications field measurements.
Key features
- 5G NR / LTE coverage testing of up to 32 frequency points simultaneously; co-channel detection capability >25 dB.
- Blind scanning, Layer 2 / Layer 3 demodulation and MIB / SIB tests.
- 100 MHz real-time analysis bandwidth and TDD uplink/downlink-separated interference investigation.
- Spectrum, waterfall and channel-power displays; data saving and replay, reports and route statistics.
- Positioning with GPS, BeiDou and GLONASS, plus external-battery or vehicle-adapter power, according to configuration.
- Supports NB-IoT, CDMA2000, GSM, LTE, WCDMA, TD-SCDMA, EVDO and 5G NR technologies; test functions depend on the configuration.
RF specifications
| Parameter | Specification |
|---|
| Standard frequency range | 9 kHz–6.3 GHz |
|---|
| Level accuracy | ±1.5 dB |
|---|
| Phase noise | ≤−106 dBc/Hz at 10 kHz offset, 1 GHz; ≤−127 dBc/Hz at 1 MHz offset, 1 GHz |
|---|
| Real-time spectrum analysis bandwidth | 100 MHz max. |
|---|
| Residual response | <−90 dBm |
|---|
| Safe input level | ≤26 dBm |
|---|
| Frequency accuracy | ±1 ppm |
|---|
Power and physical specifications
| Parameter | Specification |
|---|
| AC adapter input | 100–240 VAC; 50/60 Hz |
|---|
| Adapter output | 5 VDC; 2 A |
|---|
| Dimensions (W × H × D) | (60±0.6) × (34±0.3) × (145±1.45) mm |
|---|
| Weight | ≤0.38 kg |
|---|
| Operating / storage temperature | 0–50 °C / −40–85 °C |
|---|
Input and output interfaces
| Parameter | Specification |
|---|
| RF input | SMA |
|---|
| Data interface | Type-C USB 3.0 |
|---|
| Trigger output | Type-C |
|---|
| Trigger input | Type-C |
|---|
| Power input | Type-C |
|---|
| GPS antenna interface | SMA |
|---|
| GPS data interface | USB |
|---|
| Reference input | MCX (F) |
|---|
5G NR test specifications
| Parameter | Specification |
|---|
| Output data | Frequency [MHz], NR channel number, PCI, SSBIndex; SSS/PSS/DMRS/PBCH RSRP [dBm], RSRQ [dB], SINR [dB]; Delay [Ts], MCC, MNC, TAC, CellIdentity, EVM [%], SectorID; false/public-security/shared base-station classification, Band, TopN |
|---|
| Measurement mode | (P-SS/S-SS) & PBCH |
|---|
| Co-channel cell detection capability | >25 dB |
|---|
| Measurement speed | 300 ms per point |
|---|
| Carrier spacing | 15 / 30 kHz |
|---|
| Dynamic range (CINR) | PSS/SSS: −10–+5 dB; PBCH DMRS: −8–+40 dB |
|---|
| Level measurement accuracy | ±1 dB |
|---|
| Detection sensitivity (RSRP) | ≤−128 dBm @ 30 kHz |
|---|
LTE test specifications
| Parameter | Specification |
|---|
| Output data | Frequency [MHz], EARFCN, PCI, RSSI [dBm], RSRP [dBm], RSRQ [dB], CINR [dB]; PSS/SSS RP [dBm], RQ [dB], RSSI [dBm]; TimeOffset [Ts], EVM [%], MCC, MNC, TAC, CellIdentity, SectorID; false/public-security/shared base-station classification, Band, TopN |
|---|
| Channel bandwidth | 1.4 / 3 / 5 / 10 / 15 / 20 MHz |
|---|
| Measurement rate | >40 channels/s @ 20 MHz |
|---|
| SIB decoding success rate | 90% @ CINR >0 dB |
|---|
| Co-channel cell detection capability | >25 dB |
|---|
| Dynamic range (CINR) | −5–+40 dB @ 20 MHz: RS |
|---|
| Detection sensitivity (RSRP) | −120 dBm @ 20 MHz |
|---|
Typical applications
| Parameter | Specification |
|---|
| Spectrum clearance tests | Identify other signals and interference in the operating band before base-station deployment |
|---|
| Coverage tests | Indoor/outdoor 5G NR, TDD-LTE and FDD-LTE coverage, plus non-base-station power coverage tests |
|---|
| Base-station analysis | Operator identification, false-base-station identification and base-station position estimation |
|---|
| Operator analysis | Analyse deployed-network base-station information; save and replay test data |
|---|
Standard accessories
| Item | Description |
|---|
| Scanner test software | Licence dongle |
|---|
| User manual | Electronic version |
|---|
| Power cable | Power cable and adapter |
|---|
| Product conformity certificate | Factory product conformity document |
|---|
Mainframe and optional functions
| Configuration code | Item | Description |
|---|
| 5258A | 9 kHz–6.3 GHz scanner | Select for the required operating band |
|---|
| 5258A-H01 | 9 kHz–6.3 GHz with GPS positioning | GPS positioning and dependent functions |
|---|
| 5258A-S001 | NB-IoT base-station scanning | Software function |
|---|
| 5258A-S002 | CDMA2000 base-station scanning | Software function |
|---|
| 5258A-S003 | GSM base-station scanning | Software function |
|---|
| 5258A-S004 | LTE base-station scanning | Software function |
|---|
| 5258A-S005 | WCDMA base-station scanning | Software function |
|---|
| 5258A-S007 | 5G NR base-station scanning | Software function |
|---|
| 5258A-S008 | Base-station positioning | Software function |
|---|
| 5258A-S009 | Real-time spectrum | Software function |
|---|
| 5258A-S0010 | Spectrum analysis | Software function |
|---|
| 5258A-S0011 | Interference search and analysis | Software function |
|---|
| 5258A-JL | Metrology service | — |
|---|
Additional information

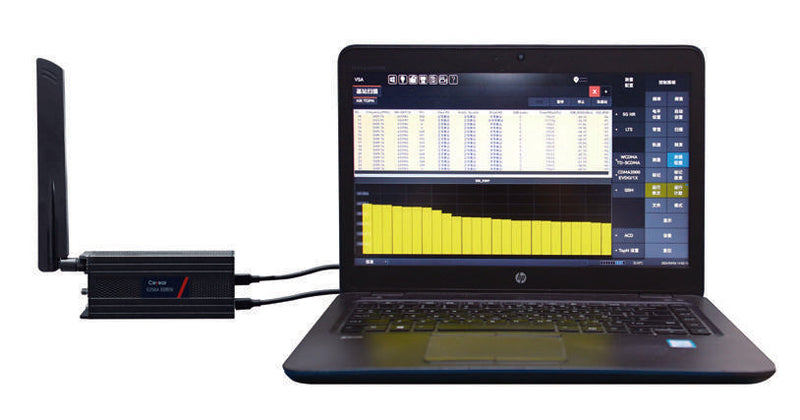

GPS positioning and dependent functions correspond to the 5258A-H01 configuration. Base-station scanning, real-time spectrum, interference analysis and other software functions are selected as required and are not all included with the base mainframe. A 20 GHz extension can be discussed separately, subject to the specified configuration quotation. The photo shows a scanner connected to a computer; the computer and example antenna are not indicated as standard mainframe items. Final price, lead time, licences and delivery scope depend on the quotation.
