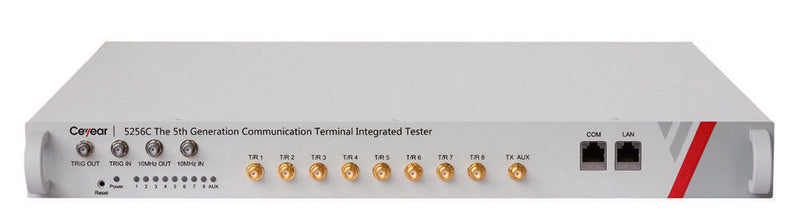

YC-TI-CT-0005 | 5256C 5G Terminal Comprehensive Tester
Price on request
Request a quoteProduct overview
5256C is a comprehensive RF tester for R&D, production, calibration, inspection, certification testing and teaching involving 5G terminals, baseband chips and communication modules. It provides signal transmission, power, demodulation and spectrum analysis for fast production-line calibration and transmitter / receiver tests. Its RF range is 70 MHz–7.125 GHz, with a 1U chassis, 8T/8R SMA ports and network control for automated test systems.
Key features
- Supports terminal RF testing under 3GPP TS38.521 Release 15 / 16 and TS38.521-1, with multiple domains and radio technologies.
- Option-configured testing for 5G NR, LTE, WCDMA, CDMA2000, GSM / EDGE, Wi-Fi, Bluetooth, navigation, NB-IoT and LTE-V2X.
- Wi-Fi analysis bandwidth up to 160 MHz, with options for Wi-Fi 7, LEO and Tiantong satellite terminal tests.
- Tests include transmit power, frequency error, SEM, ACLR, EVM, reference sensitivity and maximum receive level for terminal and module production lines.
- Network configuration and control, graphical web operation and automated production-line integration.
Core specifications
| Parameter | Specification |
|---|---|
| Transmit / receive frequency range | 70 MHz–7.125 GHz |
| Transmit / receive frequency accuracy | ≤0.05 ppm + 0.1 Hz |
| RF transmit/receive ports | SMA, 8T/8R |
| VSA / VSG units | 1 |
| Port impedance | 50 Ω |
| Port VSWR | ≤1.5; typical 1.38 |
| Maximum received power | +30 dBm (CW, duration <1 min); typical +33 dBm |
| Receive channel bandwidth | 20 MHz (70 MHz–7.125 GHz); 200 MHz (400 MHz–7.125 GHz) |
| Chassis height | 1U |
| 5G NR maximum single-carrier bandwidth | 100 MHz |
| Wi-Fi maximum analysis bandwidth | 160 MHz |
| 5G test protocols | 3GPP TS38.521 Release 15 / 16; TS38.521-1 |
Output performance
| Parameter | Specification |
|---|---|
| Output power range (CW) | −120…−6 dBm (70 MHz–6 GHz); −120…−12 dBm (6–7.125 GHz) |
| Output power accuracy (CW) | ±0.6 dB (70…0 dBm); ±1.2 dB (−100…−70 dBm); ±2.0 dB (−120…−100 dBm) |
| Power resolution | 0.1 dB |
| Output spurious signals | ≤−55 dBc (70 MHz–6 GHz; excludes spurs at 7 GHz and 8.47456 GHz−Fout) |
| Second harmonic distortion | ≤−30 dBc (>200 MHz, −10 dBm) |
| Third harmonic distortion | ≤−40 dBc (>200 MHz, −10 dBm) |
| In-band flatness (160 MHz bandwidth) | ≤1 dB (600 MHz–6 GHz), typical 0.5 dB; ≤1.5 dB (6–7.125 GHz), typical 0.8 dB |
Cellular terminal tests
| Technology | Parameter / function | Specification |
|---|---|---|
| 5G NR | Trigger source | Internal trigger output; 5G: IF power trigger |
| 5G NR | Maximum single-carrier bandwidth | 100 MHz |
| 5G NR | Supported frequencies | FR1: 70 MHz–7.125 GHz |
| 5G NR | Modulation | QPSK / 16QAM / 64QAM / 256QAM |
| 5G NR | Subcarrier spacing | 15 / 30 kHz |
| 5G NR | Residual receive EVM | ≤1.0%, RMS |
| 5G NR | Power accuracy | ±0.7 dB |
| 5G NR | Signal analysis functions | EVM, magnitude error ME, phase error PE, frequency error, carrier leakage, power, peak power, ACLR and SEM |
| 5G NR | Receiver tests | Maximum input level BER; reference sensitivity BER |
| LTE (TDD / FDD) | Trigger source | Internal trigger output; LTE: IF power trigger |
| LTE (TDD / FDD) | Maximum single-carrier bandwidth | 20 MHz |
| LTE (TDD / FDD) | Modulation | QPSK / 16QAM / 64QAM / 256QAM |
| LTE (TDD / FDD) | Subcarrier spacing | 15 kHz |
| LTE (TDD / FDD) | Residual receive EVM | ≤1.0%, RMS |
| LTE (TDD / FDD) | Signal analysis functions | EVM, magnitude error ME, phase error PE, frequency error, carrier leakage, power, peak power, ACLR and SEM |
| LTE (TDD / FDD) | Receiver tests | Maximum input level BER; reference sensitivity BER |
| WCDMA | Trigger source | Internal trigger output; GPRF: signal transmission (MARK); WCDMA: IF power trigger |
| WCDMA | Residual receive EVM | ≤1.0%, RMS |
| WCDMA | Power accuracy | ±0.7 dB |
| WCDMA | Signal analysis functions | EVM, ME, PE, frequency error, carrier leakage, power, inner-loop power control, CDP, CDE, ACLR and SEM |
| WCDMA | Receiver tests | Maximum input level BER; reference sensitivity BER |
| CDMA2000 | Trigger source | BASE: internal trigger output; GPRF: signal transmission (MARK); 1xEV-DO: free run; superframe 80 ms |
| CDMA2000 | Residual receive EVM | ≤1.0%, RMS |
| CDMA2000 | Power accuracy | ±0.7 dB |
| CDMA2000 | Signal analysis functions | EVM, ME, PE, frequency error, rho, power, narrowband power (1.23 MHz) and ACPR |
| CDMA2000 | Receiver tests | Maximum input level BER; reference sensitivity BER |
| GSM / EDGE | Trigger source | Internal trigger output; GSM: free run and IF power trigger |
| GSM / EDGE | Modulation | GMSK / 8PSK |
| GSM / EDGE | Residual receive EVM | <0.8%, RMS |
| GSM / EDGE | Power accuracy | ±0.7 dB |
| GSM / EDGE | Signal analysis functions | EVM, ME, PE, frequency error, power, carrier leakage, modulation spectrum and switching spectrum |
| GSM / EDGE | Receiver tests | Maximum input level BER; reference sensitivity BER |
Wireless and IoT terminal tests
| Technology | Parameter / function | Specification |
|---|---|---|
| Wi-Fi | Trigger source | BASE: internal trigger output; Wi-Fi: IF power trigger |
| Wi-Fi | Maximum single-carrier bandwidth | 160 MHz |
| Wi-Fi | Supported modes | IEEE 802.11a / b / g / n / ac / ax / be |
| Wi-Fi | Residual receive EVM | 802.11ac / ax / be, 160 MHz: <−40 dB; typical −43 dB |
| Wi-Fi | Signal analysis functions | Power, EVM versus all / data / pilot carriers, frequency error, carrier leakage, TSMask and in-band flatness |
| Wi-Fi | Receiver tests | Packet error rate tests |
| Bluetooth | Trigger source | Internal trigger output; Bluetooth: IF power trigger |
| Bluetooth | Supported frequencies | 2402–2480 MHz |
| Bluetooth | Residual receive EVM | ≤1.5%, RMS |
| Bluetooth | Signal analysis functions | Frequency accuracy, frequency offset, initial frequency drift, frequency drift, maximum drift rate, power, DEVM (EDR) and 20 dB bandwidth |
| Bluetooth | Receiver tests | Packet error rate tests |
| GPS / BeiDou / GLONASS | Supported frequencies | L1 / L2: 1575.42 / 1227.6 MHz; B1I / B1C: 1561 / 1575 MHz |
| GPS / BeiDou / GLONASS | Receiver tests | Terminal receiver tests |
| NB-IoT | Trigger source | Internal trigger output; NB-IoT: IF power trigger |
| NB-IoT | Subcarrier spacing | 3.75 / 15 kHz |
| NB-IoT | Residual receive EVM | ≤1.0%, RMS |
| NB-IoT | Signal analysis functions | EVM, ME, PE, frequency error, carrier leakage, power, ACLR and SEM |
| NB-IoT | Receiver tests | Maximum input level BER; reference sensitivity BER |
| LTE-V2X | Trigger source | Internal trigger output; V2X: IF power trigger |
| LTE-V2X | Maximum single-carrier bandwidth | 20 MHz |
| LTE-V2X | Modulation | QPSK / 16QAM |
| LTE-V2X | Subcarrier spacing | 15 kHz |
| LTE-V2X | Residual receive EVM | ≤1.0%, RMS |
| LTE-V2X | Signal analysis functions | EVM, ME, PE, frequency error, carrier leakage, power and ACLR |
| LTE-V2X | Receiver tests | Maximum input level BER; reference sensitivity BER |
Physical and power specifications
| Parameter | Specification |
|---|---|
| Dimensions (W×H×D, excluding handles / connectors) | (426±4.26) × (45±0.5) × (450±4.5) mm |
| Operation | Graphical web interface and automated test-system operation |
| Control interface | Standard network interface |
| Power adapter input | 200–240 VAC, 50 / 60 Hz |
| Power adapter output | 48 VDC, 4.6 A |
| Weight | ≤12 kg including adapter; ≤9.8 kg excluding adapter |
Ordering options and services
| Ordering code | Function |
|---|---|
| 5256C-001 | 5G NR terminal transmitter / receiver tests |
| 5256C-002 | LTE terminal transmitter / receiver tests |
| 5256C-003 | WCDMA terminal transmitter / receiver tests |
| 5256C-004 | CDMA2000 terminal transmitter / receiver tests |
| 5256C-005 | GSM / EDGE terminal transmitter / receiver tests |
| 5256C-006 | Wi-Fi (a / b / g / n / ac / ax) terminal transmitter / receiver tests |
| 5256C-006BE | Wi-Fi 7 terminal transmitter / receiver tests |
| 5256C-007 | Bluetooth terminal transmitter / receiver tests |
| 5256C-008 | GPS / BeiDou / GLONASS terminal receiver tests |
| 5256C-009 | NB-IoT terminal transmitter / receiver tests |
| 5256C-010 | LTE-V2X terminal transmitter / receiver tests |
| 5256C-011 | Low-Earth-orbit satellite terminal transmitter / receiver tests |
| 5256C-012 | Tiantong satellite terminal transmitter / receiver tests |
| 5256C-EWT1 | Extended warranty service |
| 5256C-JL | Product metrology calibration |
Standard accessories
| Item | Description |
|---|---|
| Power cable | Standard three-core 220 V power cable |
| Power adapter | 48 VDC, 4.6 A |
| User manual | Quick-start guide, including remote programming manual |
| Product conformity certificate | Factory conformity document |
Additional information
Communication protocols and satellite test functions depend on ordering options and software configuration; they are not all included by default. 8T/8R describes RF ports, while the instrument has one VSA/VSG unit, not eight independent analysis/generation units. Typical and conditional specifications apply under their corresponding conditions. Price, configuration, accessories, lead time and final supply scope follow the quotation.
