YC-TI-BERT-0001 | 5233D Bit Error Rate Tester
Price on request
Request a quoteProduct overview
5233D is a modular bit error rate test platform for optical modules in a 2U chassis, supporting NRZ and PAM4. Selected function and interface boards cover aggregate interface rates of 100 Mbps–600 Gbps and provide BER, eye diagrams, voltage bias, pre-emphasis, amplitude control, temperature and power monitoring, with RS232 and Ethernet remote control. Rates, channel counts and functions depend on the selected configuration.
Key features
- Automatic optical-module recognition and control, with BER tests per interface and channel.
- Module power supply, voltage bias, I/O and status control.
- I2C / MDIO digital diagnostic monitoring and register/alarm queries.
- Eye height and width per interface and channel, plus optical-module temperature monitoring.
- Command-based remote control for automated test workflows.
Chassis specifications
| Parameter | DC chassis (default) | AC chassis (optional) |
|---|---|---|
| Service slots | 4 | 3 |
| Chassis format | 2U | 2U |
| Ethernet remote interfaces | 2 × RJ45; 10/100/1000 Mbps | 2 × RJ45; 10/100/1000 Mbps |
| Serial remote interfaces | 4 × RS232 (COM1–COM4) | 3 × RS232 (COM1–COM3) |
| Power input | 48 V ±5 V DC; 10 A ±1 A | 220 V ±22 V AC; 50 Hz ±2.5 Hz |
| Maximum power consumption | 480 W | 350.4 W |
| Dimensions (W × H × D) | (449.00±2.00) × (88.10±0.80) × (502.00±2.00) mm | (449.00±2.00) × (88.10±0.80) × (502.00±2.00) mm |
| Dimension scope | Excludes handles, connectors and other projections | Excludes handles, connectors and other projections |
| Maximum weight | 20 kg; fully equipped with function and interface boards | 20 kg; fully equipped with function and interface boards |
| Operating temperature | 0–40 °C | 0–40 °C |
| Storage temperature | −40–70 °C | −40–70 °C |
| Remote control | Either LAN1 or LAN2 controls any slot; each COM controls its corresponding slot | Either LAN1 or LAN2 controls any slot; each COM controls its corresponding slot |
75111A: NRZ function board
| Parameter | Specification |
|---|---|
| Ordering configuration | 5233D-001 / 75111A |
| Aggregate interface rate range | 100 Mbps–400 Gbps |
| Programmable per-channel bit rates (bps) | 100M, 125M, 155.52M, 200M, 270M, 622.08M, 1.0625G, 1.25G, 2.125G, 2.4576G, 2.5G, 2.67G, 2.97G, 3.125G, 4.25G, 4.9152G, 5G, 6.144G, 8.5G, 9.8304G, 9.95328G, 10G, 10.1376G, 10.3125G, 10.51875G, 10.7091G, 11.0975G, 11.181G, 11.3G, 14.025G, 14.0625G, 24.33024G, 25G, 25.78125G, 26.5625G, 27.952493G, 28.05G |
| Compatible interface boards | SFP / CSFP / XFP / QSFP / CFP / CFP2 / CFP4 / CFP8 / CXP / DSFP |
| Voltage bias | 3.3 V; −10%–+10% |
| Temperature monitoring | Supported |
NRZ interface board selection
| Configuration / board | Interface | Test interfaces | Channels per interface | Modules | Mode | Framed services |
|---|---|---|---|---|---|---|
| 5233D-002 / 75110A | SFP | 8 | 1 | SFP / SFP+ / SFP28 | Unframed | — |
| 5233D-003 / 75110B | CSFP | 8 | 2 | CSFP | Unframed | — |
| 5233D-004 / 75110C | XFP | 4 | 1 | XFP | Unframed | — |
| 5233D-005 / 75110D | QSFP | 4 | 4 | QSFP / QSFP+ / QSFP28 | Framed / unframed | 40G Ethernet; 100G Ethernet; OTU3; OTU3e1; OTU3e2; OTU4.4 |
| 5233D-006 / 75110E | CFP | 2 | 10 | CFP | Framed / unframed | 100G Ethernet; OTU4.10 |
| 5233D-007 / 75110F | CFP2 | 2 | 4 / 10 | CFP2 | Framed / unframed | 40G Ethernet; 100G Ethernet; OTU3; OTU3e1; OTU3e2; OTU4.4; OTU4.10 |
| 5233D-008 / 75110G | CFP4 | 2 | 4 | CFP4 | Framed / unframed | 40G Ethernet; 100G Ethernet; OTU3; OTU3e1; OTU3e2; OTU4.4 |
| 5233D-009 / 75110H | CFP8 | 2 | 16 | CFP8 | Unframed | — |
| 5233D-010 / 75110K | CXP | 2 | 12 | CXP / CXP2 | Unframed | — |
| 5233D-011 / 75110L | DSFP | 8 | 2 | DSFP | Unframed | — |
Common NRZ interface test functions
| Parameter | Specification |
|---|---|
| Encoding | NRZ |
| Test patterns | PRBS7 / 9 / 11 / 15 / 20 / 23 / 31; inversion supported |
| Error insertion | Single error or 10^−n (n=2…12) |
| BER measurement | Per interface and channel |
| Monitoring and queries | Temperature monitoring; module registers, alarms, power and DDM queries |
75111B: 56G PAM4 function board
| Parameter | Specification |
|---|---|
| Ordering configuration | 5233D-012 / 75111B |
| Compatible interface boards | SFP-DD / QSFP-DD / OSFP / CXP3 |
| PAM4 aggregate interface rate | 30–600 Gbps |
| NRZ aggregate interface rate | 1.25–100 Gbps |
| PAM4 per-channel baud rates (GBaud) | 15.0, 15.9375, 16.25, 16.875, 20.125, 20.625, 20.9375, 21.25, 21.875, 23.125, 23.28125, 25.0, 25.78125, 26.5625, 27.34375, 27.95, 27.952493, 28.05, 28.125 |
| NRZ per-channel baud rates (GBaud) | 1.25, 2.5, 3.125, 4.25, 5.15625, 6.25, 7.5, 8.5, 9.8304, 9.95328, 10, 10.1376, 10.3125, 10.5281, 10.709, 10.755, 10.9375, 11.049, 11.0957, 11.181, 12.16512, 12.5, 14.025, 15.0, 20.625, 24.33024, 25.0, 25.78125, 26.5625, 27.95, 27.952493, 28.05, 28.125 |
| Rate relationship | PAM4 bit rate is twice its baud rate; NRZ bit rate numerically equals its baud rate |
| Voltage bias | 3.3 V; −10%–+10% |
| Temperature monitoring | Supported |
PAM4 interface board selection
| Configuration / board | Interface | Test interfaces | Channels per interface | Encoding | PAM4 modules | NRZ-compatible modules | Maximum per-channel bit rate |
|---|---|---|---|---|---|---|---|
| 5233D-013 / 75110M | SFP-DD | 8 | 2 | NRZ / PAM4 | SFP-DD / SFP56 | SFP / SFP+ / SFP28 | NRZ: 28.125 Gbps; PAM4: 56.25 Gbps |
| 5233D-014 / 75110N | QSFP-DD | 4 | 8 | NRZ / PAM4 | 400G QSFP-DD / QSFP56 | QSFP+ / QSFP28 | NRZ: 28.125 Gbps; PAM4: 56.25 Gbps |
| 5233D-015 / 75110P | OSFP | 4 | 8 | PAM4 | 400G OSFP | — | PAM4: 56.25 Gbps |
| 5233D-016 / 75110Q | CXP3 | 2 | 12 | PAM4 | 600G CXP3 | — | PAM4: 56.25 Gbps |
PAM4-board patterns and test functions
| Parameter | Specification |
|---|---|
| Data mode | All four interface boards above use unframed data |
| PAM4 TX/RX patterns | PRBS7Q / PRBS9_5Q / PRBS11Q / PRBS13Q / PRBS15Q / PRBS23Q / PRBS31Q; inversion supported |
| PAM4 TX-only patterns | PRBS9_4Q / PRBS58Q / SSPRQ / LIN / CJT / JP03A / JP03B / SQUARE / WORDS |
| WORDS | Two 64-bit user words, alternately filled for specified counts |
| NRZ TX/RX patterns (SFP-DD / QSFP-DD only) | PRBS7 / PRBS9_5 / PRBS11 / PRBS15 / PRBS23 / PRBS31; inversion supported |
| NRZ TX-only patterns (SFP-DD / QSFP-DD only) | PRBS9_4 / PRBS58 |
| Error insertion types | BIT0 / BIT1 / BIT01 / MSB55 / LSBAA / ALL / WALK / WALK3 |
| BER measurement | Per interface and channel |
| Monitoring and queries | Temperature monitoring; module registers, alarms, power and DDM queries |
Standard accessories
| Item | Quantity |
|---|---|
| Power cord (AC chassis only) | 1 |
| Serial-to-RJ45 cable | 1 |
| Cat5e Ethernet cable | 1 |
| User manual | 1 |
| Programming manual | 1 |
| Documentation CD | 1 |
| Product conformity certificate | 1 |
Optional configuration ordering table
| Ordering code | Board model | Item | Quantity per selected item |
|---|---|---|---|
| 5233D-001 | 75111A | NRZ function board | 1 |
| 5233D-002 | 75110A | SFP interface board | 1 |
| 5233D-003 | 75110B | CSFP interface board | 1 |
| 5233D-004 | 75110C | XFP interface board | 1 |
| 5233D-005 | 75110D | QSFP interface board | 1 |
| 5233D-006 | 75110E | CFP interface board | 1 |
| 5233D-007 | 75110F | CFP2 interface board | 1 |
| 5233D-008 | 75110G | CFP4 interface board | 1 |
| 5233D-009 | 75110H | CFP8 interface board | 1 |
| 5233D-010 | 75110K | CXP interface board | 1 |
| 5233D-011 | 75110L | DSFP interface board | 1 |
| 5233D-012 | 75111B | 56G PAM4 function board | 1 |
| 5233D-013 | 75110M | SFP-DD interface board | 1 |
| 5233D-014 | 75110N | QSFP-DD interface board | 1 |
| 5233D-015 | 75110P | OSFP interface board | 1 |
| 5233D-016 | 75110Q | CXP3 interface board | 1 |
Additional information

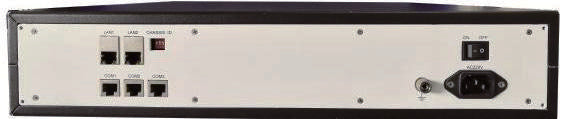

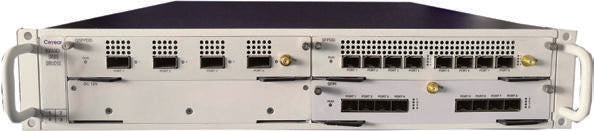

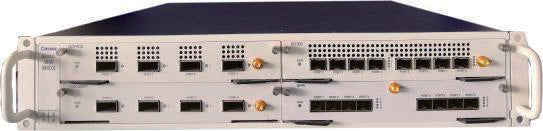

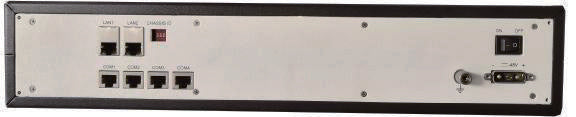

The DC chassis is standard; the AC chassis is optional. The mainframe and options may be ordered separately. Normal operation requires at least one test module system consisting of a function board and a compatible interface board. Quantities in the option table refer to each selected item, not to a complete set included with every mainframe. Photos show front and rear configuration examples of DC and AC chassis; the delivered interface combination follows the order. Price, lead time and delivery scope are subject to the final configuration quotation.
