YC-TI-NET-0002 | 5201M Portable Data Network Tester
Price on request
Request a quoteProduct overview
5201M is a portable modular Ethernet test platform for developing and testing switches, routers, network cards, optical modules and network chips, as well as network maintenance. It supports L2/L3 traffic testing, protocol simulation, packet capture and RFC2544 benchmarks. The two-slot chassis accepts optional 8-port or 16-port 10G modules and 4-port 100G modules; rates and port combinations depend on the configuration.
Key features
- Portable two-slot chassis with modular expansion.
- Listed configurations cover 10 Mbps–100 Gbps, with 100% line-rate traffic generation.
- 2.5 ns timestamp resolution with real-time port and flow statistics.
- Event-filtered and triggered packet capture, protocol simulation and RFC2544 reports.
- Supports multiple users, chassis cascading, Tcl/Python automation and graphical agile testing.
- Client download through a web browser; test software has Chinese and English interfaces.
Chassis specifications
| Parameter | Specification |
|---|---|
| Test slots | 2 |
| Configured rate range | 10 Mbps–100 Gbps; depends on selected modules and optical/electrical interfaces |
| Timestamp resolution | 2.5 ns |
| Power input | 220 VAC ±22 VAC; one AC input, 50 Hz ±2.5 Hz / 10 A |
| Maximum power consumption | ≤900 W |
| Chassis dimensions (W × H × D) | (378±2.5) × (106±1.5) × (500±4) mm; includes handles, side strap, feet, pads, connectors and other projections |
| Chassis weight | 7 kg; includes power supply and controller, excludes service boards |
| Operating / storage temperature | 0–40 °C / −40–70 °C |
| Chassis operating / storage humidity | 20–85% / 20–85% |
| Display and controls | OLED management display; PWR, FAN, ALM and M-S indicators; left/right, increment and confirm buttons; one switch button at the front and one at the rear |
| Recommended control computer | Windows 7 / Windows 10; quad-core i7 or higher; RAM ≥32 GB; disk ≥1 TB |
Test module comparison
| Parameter | 5201M-H03-08010 | 5201M-H04-16010 | 5201M-H05-04100 |
|---|---|---|---|
| Ports | 8 | 16 | 4 |
| Port type | SFP28 | SFP28 | QSFP |
| Port rates | 10 Gbps / 1000 Mbps / 100 Mbps / 10 Mbps | 10 Gbps / 1000 Mbps / 100 Mbps / 10 Mbps | 100 Gbps |
| Port allocation | Allocation per individual port | Allocation per individual port | Allocation per individual port |
| Module dimensions (W × H × D) | (217±1.2) × (42±0.8) × (420±2) mm | (217±1.2) × (42±0.8) × (420±2) mm | (217±1.2) × (42±0.8) × (420±2) mm |
| Module weight | ≤3 kg | ≤3 kg | ≤3 kg |
| Maximum module power consumption | 90 W | 170 W | 170 W |
| Stream blocks per port | 128 | 128 | 256 |
| Streams per port | 1k | 1k | 2k |
| Trackable streams per port | 1k | 1k | 2k |
| Module dimension scope | Includes handles, interfaces, connectors and other projections | Includes handles, interfaces, connectors and other projections | Includes handles, interfaces, connectors and other projections |
| Module operating / storage temperature | 0–40 °C / −40–70 °C | 0–40 °C / −40–70 °C | 0–40 °C / −40–70 °C |
| Module operating humidity conditions | Humidity not controlled below 10 °C; 10–30 °C: 5–95% RH; 30–40 °C: 5–75% RH | Humidity not controlled below 10 °C; 10–30 °C: 5–95% RH; 30–40 °C: 5–75% RH | Humidity not controlled below 10 °C; 10–30 °C: 5–95% RH; 30–40 °C: 5–75% RH |
| Module altitude range | 0–4600 m | 0–4600 m | 0–4600 m |
Management and synchronisation interfaces
| Parameter | Specification |
|---|---|
| Mouse / keyboard | 2 × USB |
| Monitor | 1 × DP |
| 1PPS | 1 × SMA |
| GPS | 1 × SMA |
| Remote management | 1 × RJ45 |
| COM | 1 × RJ45 |
| 1588v2 | 1 × RJ45 |
| Reserved | 1 × RJ45 |
| SYNC IN | 1 × RJ45 |
| SYNC OUT | 1 × RJ45 |
Traffic, statistics, capture and protocols
| Parameter | Specification |
|---|---|
| Frame length range | 64–16383 bytes |
| Frame length control | Fixed, incrementing, decrementing, random, IMIX |
| Maximum traffic rate | 100% line rate |
| Scheduling modes | Port-level load control with fixed IFG; independently configurable load per stream block |
| Error insertion | FCS; IPv4 checksum; TCP/UDP checksum |
| Latency modes | LIFO / FIFO / LILO / FILO |
| Sending modes | Continuous, burst, timed |
| Built-in packet templates | Ethernet II, ARP, RARP, IPv4, IPv6, GRE, ICMPv4, ICMPv6, TCP, UDP, VLAN, PPP, PPPoE |
| Custom packets | Supported |
| Field variation | 8 fields; fixed, incrementing, decrementing, random |
| Capture memory capacity | ≥512 MB |
| Capture events | FCS, IPv4 and TCP/UDP/IGMP checksum errors; sequence errors; undersize, oversize, jumbo and user-defined frame sizes; IPv4, IPv6, TCP, UDP and IGMP packets; stream ID and marked frames |
| Custom capture filters | 8 filters, 4 bytes each; OR / AND combinations; MATCH / NOT matching |
| Capture control | Start, filter, stop; ignore, include, exclude |
| Port TX statistics | Total frames, bytes and bits; total frame and bit rates; total IPv4/IPv6 frames; L1 bit rate |
| Port RX statistics | Total frames, bytes and bits; total frame and bit rates; IPv4/IPv6 frames; L1 bit rate; FCS, TCP and UDP checksum error frames and trigger frames |
| Flow TX statistics | Frames, bytes, bits, frame rate, byte rate, bit rate, L1 bits and L1 bit rate |
| Flow RX statistics | Frames, bytes, bits, frame rate, byte rate, bit rate, L1 bits and L1 bit rate; FCS, IPv4 and TCP/UDP checksum error frames |
| Flow quality statistics | Average/minimum/maximum latency, jitter and inter-arrival time; lost, duplicate, late and reordered frames |
| Access protocols | PPPoX, DHCPv4, DHCPv6, ICMPv4, ICMPv6, L2TPv2, L2TPv3, IGMPv1/v2/v3, MLDv1/v2, 802.1x, IPv6 Autoconfiguration, ARP/ND |
| Carrier Ethernet and bridging | EOAM, STP, VXLAN |
| Routing and MPLS | RIP, ISIS, OSPFv2, OSPFv3, BGP4, PIM, BFD, LDP |
| Application-layer traffic | Raw TCP, HTTP |
| Protocol scenario | EVPN |
| RFC2544 | Back-to-back, frame loss, latency and throughput tests; wizard configuration and automatic reports |
| Agile testing | Graphical test-step command editing, verdict settings and parameter changes |
| Automation and cascading | Tcl / Python automation; chassis cascading; multiple users |
Standard configuration
| Item | Quantity |
|---|---|
| 5201M data network tester | 1 |
| 10 A power cord | 1 |
| Packing list | 1 |
| User manual | 1 |
| Product conformity certificate | 1 |
Optional modules, accessories and services
| Configuration model | Item | Quantity |
|---|---|---|
| 5201M-H03-08010 | 8-port 10G test module | As required |
| 5201M-H04-16010 | 16-port 10G test module | As required |
| 5201M-H05-04100 | 4-port 100G test module | As required |
| 5201M-H00-1588 | 1588v2 synchronisation module | As required |
| 5201-H21 | SFP+ 10 Gbps / 1310 nm optical module | As required |
| 5201-H22 | SFP+ 10 Gbps / 850 nm optical module | As required |
| 5201-H23 | QSFP 100 Gbps optical module | As required |
| 5201-H24 | 1000BASE-T SFP electrical module | As required |
| 5201-H31 | Multimode fibre patch cord (LC–LC) | As required |
| 5201-H32 | Single-mode fibre patch cord (LC–LC) | As required |
| 5201-H33 | Clock synchronisation cable | As required |
| 5201M-JL | Metrology service | As required |
| 5201M-EWT1 | One-year extended warranty after the standard warranty | As required |
Additional information

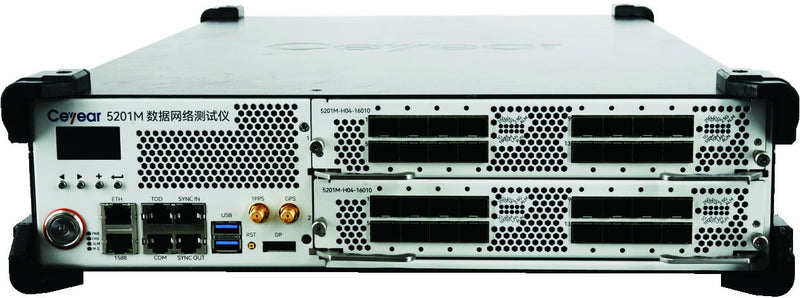

Test modules, optical/electrical modules, synchronisation modules, patch cords, metrology and extended warranty services are selected as required; not all are standard items. The photograph shows an example fitted with 16-port test modules. Chassis and module weights are listed separately; their humidity conditions apply separately and the selected configuration must meet the applicable environmental requirements. Interface types, rates and port counts are confirmed for the selected test modules and optical/electrical interfaces. Price, lead time and delivery scope are subject to the configuration quotation.
