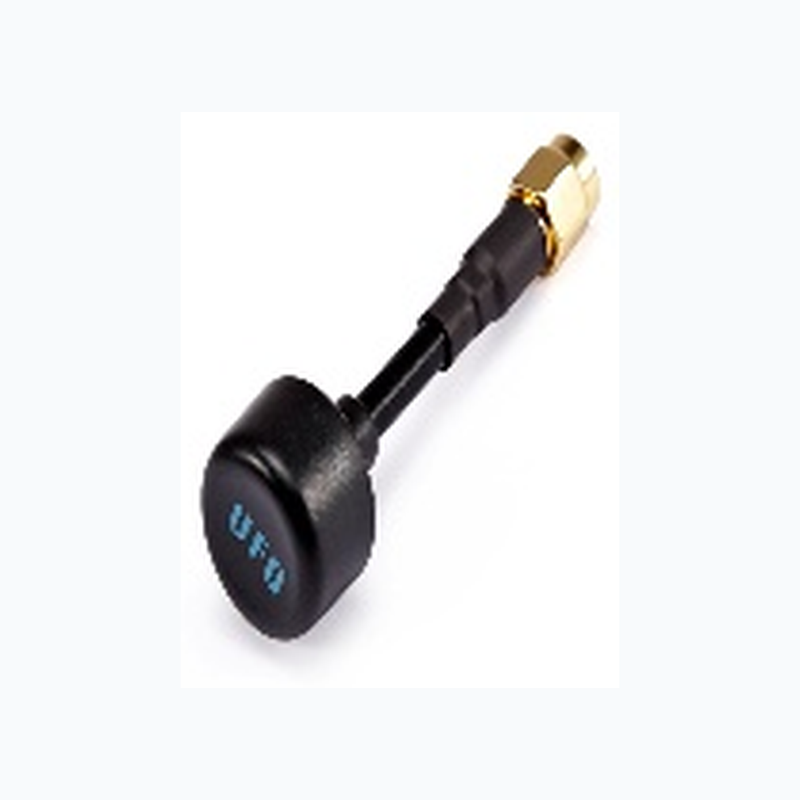

YC-A-COM-0009 | 5.8 GHz Disc-Style RHCP Antenna
Price on request
Request a quoteDisc-style 5.8 GHz RHCP communication antenna covering 5500–6000 MHz. Multiple RF connector options support integration with compatible equipment.
Technical specifications
| Frequency range | 5500–6000 MHz |
|---|---|
| Polarization | RHCP |
| Gain | 2.5 dBi |
| Impedance | 50 Ω |
| VSWR at 5800 MHz | ≤1.3 |
| Max. input power | 50 W |
| Connector options | RP-SMA, SMA, U.FL, MMCX, MMCX-L |
| Dimensions | Φ15 × 60 mm |
| Weight | Approx. 7 g (SMA), 3 g (MMCX), 2 g (U.FL) |
| Radome | ABS; black, blue, red or pink |
| Operating temperature | −40 to +60 °C |
Configuration notes
Connector and cable length can be selected for the target device; weight varies by connector. Please specify connector, cable and color in your inquiry.
Ordering and delivery
- Standard MOQ: 1 unit
- Typical sample lead time: 2 weeks
- Typical volume-production lead time: 4 weeks
Final configuration and schedule are confirmed in the quotation.
