YC-A-COM-0008 | 5.8 GHz Mini Circularly Polarized Antenna
Price on request
Request a quoteCommunication antennas
This 5.8 GHz mini circularly polarized antenna is designed for wireless links and equipment integration. Select RHCP or LHCP, connector and radome color for your project; samples and volume supply are supported.
Key specifications
| Frequency range | 5500–5950 MHz |
|---|---|
| Gain | 2 dBi |
| Polarization | RHCP or LHCP, selected at ordering |
| VSWR | ≤ 1.3 at 5800 MHz |
| Input impedance | 50 Ω |
| Maximum input power | 50 W |
| Connector options | RP-SMA, SMA, U.FL, MMCX, MMCX-L |
| Reference dimensions | Φ11 × 80 mm; confirm by configuration |
| Operating temperature | −40 to +60 °C |

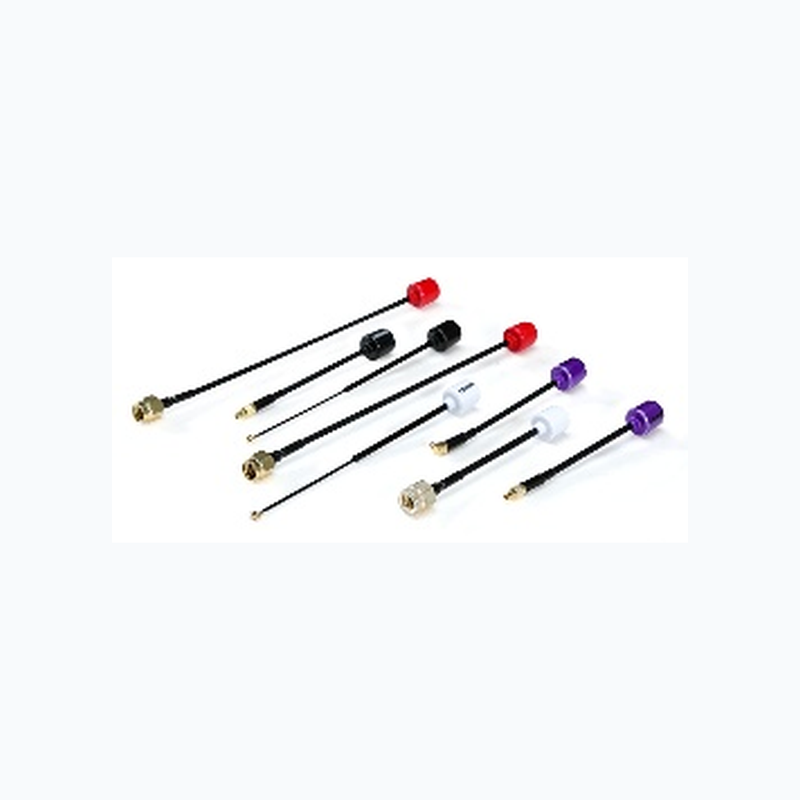

RHCP and LHCP are separate order configurations. Confirm the connector, cable and finished dimensions on the final drawing. Images illustrate options and do not imply that all versions are supplied together.
Standard MOQ: 1 piece. Typical sampling lead time: 2 weeks; volume lead time: 4 weeks. Custom requirements and final timing are subject to quotation.
