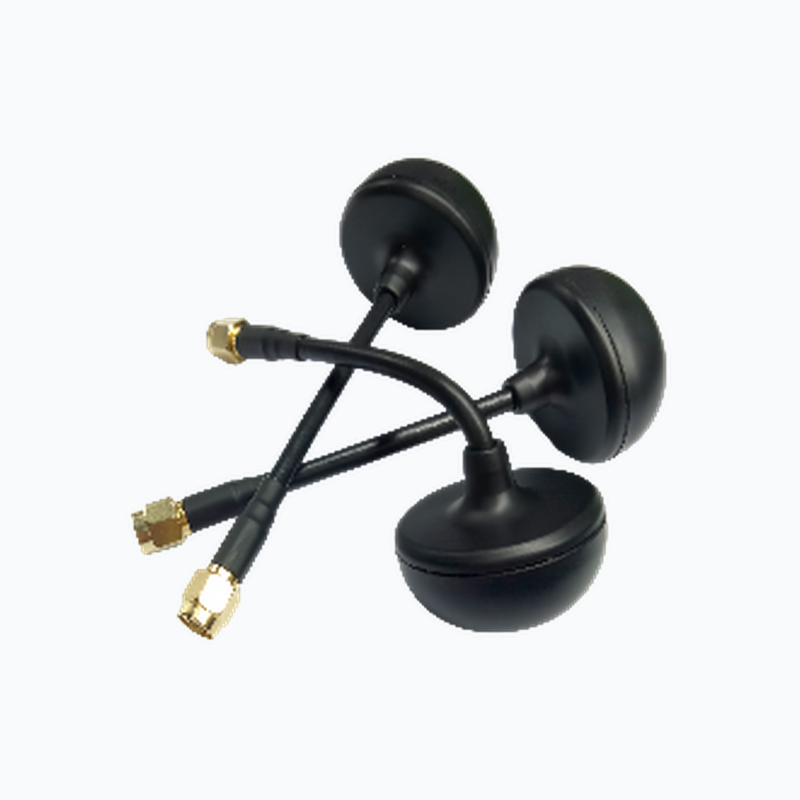

YC-A-COM-0011 | 5.8 GHz Large Mushroom Communication Antenna
Price on request
Request a quoteLarge mushroom-style 5.8 GHz communication antenna covering 5300–6000 MHz. It provides 3 dBi gain and an SMA connector for compatible equipment.
Technical specifications
| Frequency range | 5300–6000 MHz |
|---|---|
| Gain | 3 dBi |
| Impedance | 50 Ω |
| VSWR at 5800 MHz | ≤1.5 |
| Max. input power | 50 W |
| Connector | SMA |
| Dimensions | Approx. 34 × 75 mm |
| Weight | Approx. 15 g (SMA configuration) |
| Radome | ABS; black or white |
| Operating temperature | −40 to +60 °C |
Configuration notes
Cable length, housing color and installation fit can be specified for the target device.
Ordering and delivery
- Standard MOQ: 1 unit
- Typical sample lead time: 2 weeks
- Typical volume-production lead time: 4 weeks
Final configuration and schedule are confirmed in the quotation.
